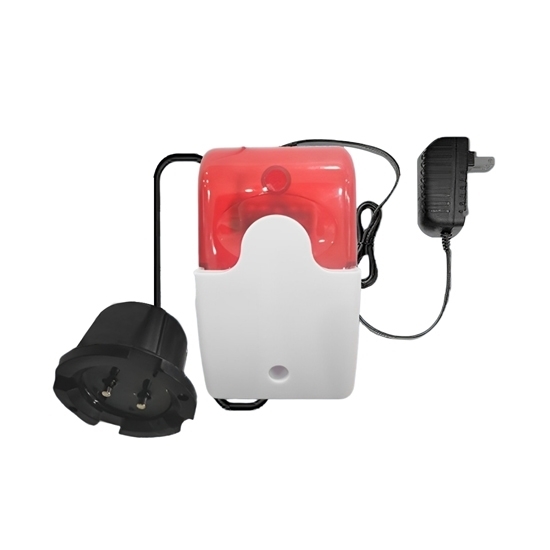

Water Leakage Sensor With Alarm, Relay Output

0 reviews • Write a review

from

$76.92

Ex Tax: $76.92

Stock: In Stock
Model: RDDLZ-WLS-ALARM
Weight: 1.00
SKU: RDDLZ-WLS-ALARM

Available Options

Short Description

Power Adapter

Voltage (DC)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Factory price water leak detection sensor, isolation type, equipped with sound and light alarm, relay output, 5V/12V/24V/7-36V voltage, -20℃~60℃ temperature, 0%RH~100%RH humidity, suitable for communication base stations, hotels, precision machine rooms, libraries and other places where there is water accumulation and alarm is needed.

Sensor Specifications

Model: RDDLZ-JRWIER12/24V & ALARM
Power Supply: 5V (White) /12V/24V/7-36V DC (Optional)
Working Temperature: -20℃~60℃
Working Humidity: 0%RH~100%RH
False Alarm Rate: <100ppm
Static Power Consumption: <0.008W
Alarm Power Consumption: Max 0.6W@18V
Output Form: Relay Output, NO
Load Capacity: Relay Output, ≤1A
Waterproof Level: IP68
Detection Cable: The sensor cable detection points are evenly distributed about 10cm apart.
Dimension: 48x48x30mm
Configuration: Standard 1.5m detection cable, the detection cable length can be customized.

Alarm Specifications

Wiring: Red (Positive) and Black (Negative)
Type: Wired Sound and Light Alarm
Rated Voltage: 5V/12V/24V/7-36V DC (Optional)
Rated Current: 330mA
Flashing Frequency: 150 times/minute
Sound Pressure: 110±3db/m
Dimension: 122x72x43mm
Power Adapter: US 110V AC, US 220V AC, EU 220V AC (Optional)

Sensor Dimension (Unit: mm)

Line Definition

Color	Line Definition
Red	Power Supply Positive
Black	Power Supply Negative
Yellow	Normally Open Contact Output, No Polarity Difference
Blue	Signal Common Terminal, No Polarity Difference
Green	Normally Closed Contact Output, No Polarity Difference

Applications

Tips: Why are water leak sensors equipped with alarms?

A water leak sensor equipped with an alarm provides immediate notification of water presence, preventing potential damage. Water leaks, if undetected, can cause structural damage, promote mold growth, and lead to costly repairs. The alarm ensures prompt attention, alerting property owners or managers to take action before the leak worsens.

This is especially important in areas where water may go unnoticed, such as basements, under sinks, or near appliances. The sensor alone detects the leak, but without an alarm, the detection might be overlooked. The alarm could be audible, visual, or connected to a smart system that sends alerts via a smartphone, making it highly effective even when no one is nearby. This early warning system minimizes the risk of prolonged exposure to water, protecting assets and reducing repair costs, while also preventing potential hazards like electrical shorts or flooding.
