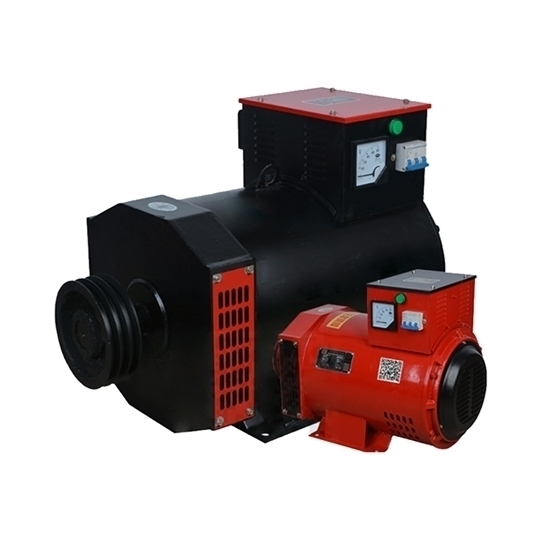

30kW AC Synchronous Generator, 1-phase/ 3-phase

0 reviews • Write a review

from

$3,012.06

Ex Tax: $3,012.06

Stock: In Stock
Model: RDDLZ-ASG-STC-30
Weight: 1.00
SKU: RDDLZ-ASG-STC-30

Available Options

Short Description

Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Good price brush AC generator with 4 pole, offers quiet operation and good conductivity. 220V (other voltage can be customized) AC generator is widely used in industrial and agricultural production, national defense, science and technology and daily life.

Specification

Model	RDDLZ-STC-30
Rated power	30kW
Rated capacity	37.5kVA
Rated current	54A
Power factor	0.8 cosφ
Pole number	4 pole
Rated speed	1500 r/min
Phase	Single phase/ Three phase
Rated voltage	220V (230V/ 240V can be customized)/ 380V (400V/ 460V can be customized)
Frequency	50Hz
Weight	144kg
Certificate	CE
Warranty	12 months

Dimension

Model	Mounting dimensions (mm)									Outer dimensions (mm)
Model	A	B	C	D	E	F	G	H	K	a	b	h1	h	L1	L2	g
STC-30	318	228	133	42	110	18	42.2	225	19	60	378	30	500	660	400	51.2

Tips: How to Use AC Synchronous Generator?

1. The grounding form of the regulator and the generator must be the same, otherwise the AC generator will not be able to output voltage due to no magnetic field current. And the voltage level of the two should be the same, otherwise the charging system cannot work normally.
2. It is found that the alternator is not generating electricity or the charging current is small, and the fault should be eliminated in time, and the wire connection between the alternator and the battery should be firm. Otherwise, it is easy to damage the diode and electronic components.
3. When the alternator is installed on the engine, the center of the pulley groove of the alternator should be aligned with the center of the pulley groove of the engine, and a suitable degree of tightness of the V-belt should also be set.
4. When installing the V-belt early, pry the front end cover of the alternator strongly. Otherwise, the components will be damaged by pressure.
