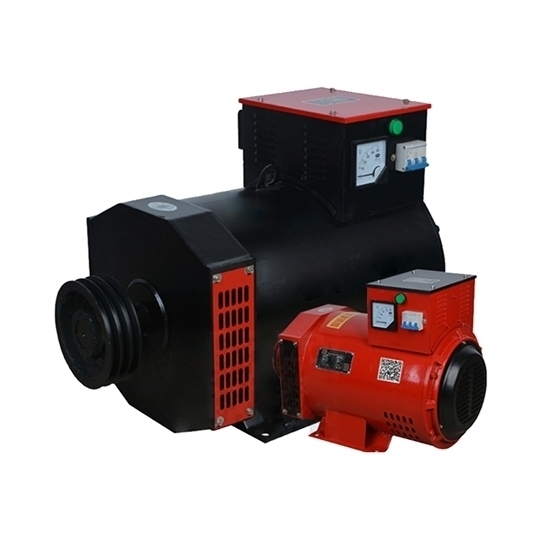

15kW AC Synchronous Generator, 1-phase/ 3-phase

0 reviews • Write a review

from

$2,121.36

Ex Tax: $2,121.36

Stock: In Stock
Model: RDDLZ-ASG-STC-15
Weight: 1.00
SKU: RDDLZ-ASG-STC-15

Available Options

Short Description

Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

15kW AC synchronous generator with power factor 0.8 cosφ, 1500 r/ min rated speed. Single phase/ three phase ac synchronous generator is widely used in industrial and agricultural production, national defense, science and technology and daily life.

Specification

Model	RDDLZ-STC-15
Rated power	15kW
Rated capacity	18.8kVA
Rated current	27A
Power factor	0.8 cosφ
Pole number	4 pole
Rated speed	1500 r/min
Phase	Single phase/ Three phase
Rated voltage	220V (230V/ 240V can be customized)/ 380V (400V/ 460V can be customized)
Frequency	50Hz
Weight	107kg
Certificate	CE
Warranty	12 months

Dimension

Model	Mounting dimensions (mm)									Outer dimensions (mm)
Model	A	B	C	D	E	F	G	H	K	a	b	h1	h	L1	L2	g
STC-15	318	228	133	42	110	14	42.2	200	19	60	378	30	500	660	400	51.2

Tips: How to Use AC Synchronous Generator?

1. The ground polarity of the battery must be the same as the ground polarity of the alternator. The consequence of not following the specification is that the diode will be damaged due to the large current discharge of the diode.
2. When the six diodes of the rectifier tube are connected to the stator windings, it is absolutely prohibited to use a megger or 220V AC power supply to check the insulation of the alternator. Otherwise, the diode may be easily broken down and damaged.
3. After the engine is turned off, the ignition switch should be turned off. If the flame is not turned off in time, the battery will continue to discharge, which will affect the magnetic field and shorten the battery life.
4. When the alternator is running, the fire test method cannot be used to check whether it is generating electricity. Otherwise, it is easy to damage the diode and electronic components.
