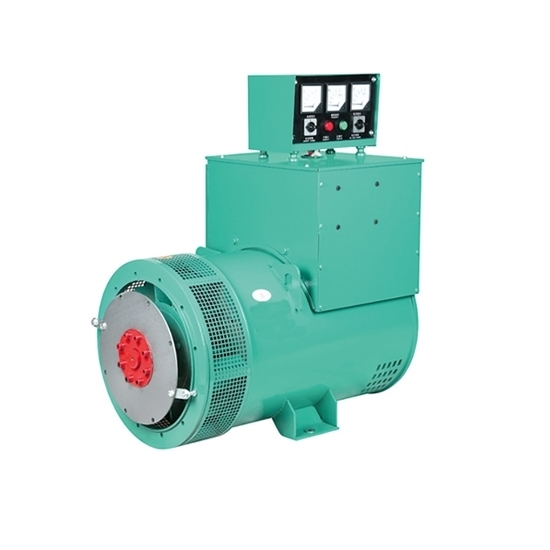

5kW AC Synchronous Generator, 1-phase/ 3-phase

0 reviews • Write a review

from

$1,456.50

Ex Tax: $1,456.50

Stock: In Stock
Model: RDDLZ-ASG-STC-5
Weight: 1.00
SKU: RDDLZ-ASG-STC-5

Available Options

Short Description

Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Single phase or three phase brush AC generator with 0.8 cosφ power factor, 4P, frequency 50Hz. AC generator has an elegant appearance, sturdy and durable structure, convenient maintenance and long service life.

Specification

Model	RDDLZ-STC-5
Rated power	5kW
Rated capacity	6.3kVA
Rated current	9A
Power factor	0.8 cosφ
Pole number	4 pole
Rated speed	1500 r/min
Phase	Single phase/ Three phase
Rated voltage	220V (230V/ 240V can be customized)/ 380V (400V/ 460V can be customized)
Frequency	50Hz
Weight	60kg
Certificate	CE
Warranty	12 months

Dimension

Model	Mounting dimensions (mm)									Outer dimensions (mm)
Model	A	B	C	D	E	F	G	H	K	a	b	h1	h	L1	L2	g
STC-5	254	254	108	32	80	12	32.8	160	15	50	310	25	450	580	325	40.8

Tips: What is AC Synchronous Generator?
AC synchronous generator is a mechanical device that converts other forms of energy into electrical energy. It is driven by a water turbine, steam turbine, diesel engine or other power machinery, which converts the energy generated by water flow, air flow, fuel combustion or nuclear fission into mechanical energy and then transmits it to the generator, at last, it converted into electrical energy by a generator.
