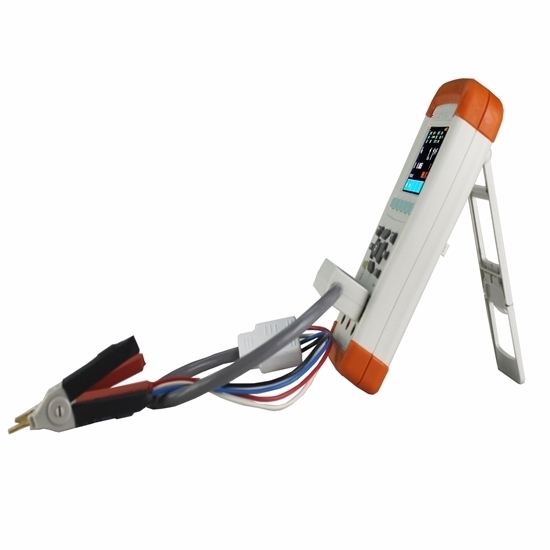

Handheld LCR Meter, 100Hz~100kHz

0 reviews • Write a review

from

$504.62

Ex Tax: $504.62

Stock: In Stock
Model: RDDLZ-LCRM-1010
Weight: 1.00
SKU: RDDLZ-LCRM-1010

Available Options

Test Frequency

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

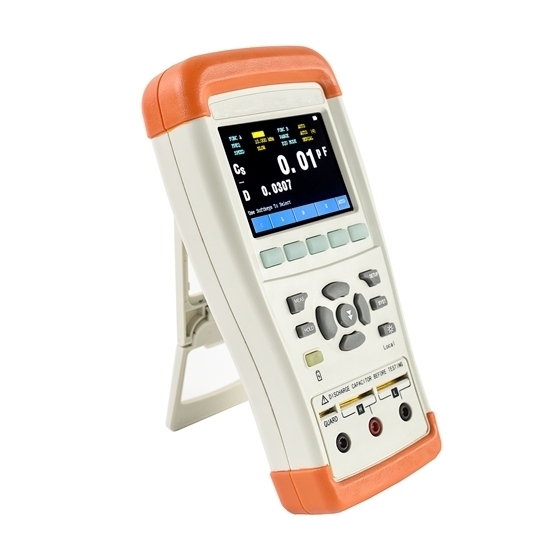

2.8-inch true color LCD display with high brightness.
USB communication function, built-in Mini-USB interface (virtual serial port). Comparison function of a set of recorded main specifications.
Switchable attachment (AUX) sequencing correction function: open and short circuit scan frequency removal in full range.
7.4V, 1300mAh charging interface serial port for rechargeable lithium batteries.

Specification

Model	RDDLZ-LCRM-825	RDDLZ-LCRM-826
Test Specifications	L, C, R, Z
Monitoring Specifications	D, Q, θ (deg), θ (rad) ESR
Accuracy	0.20%
Frequency	100Hz, 120Hz, 1kHz, 10kHz, 100kHz	100Hz, 120Hz, 1kHz, 10kHz
Display Range	L: 0.01μH~9999H Q: 0.0001~9999 C: 0.01pF~9999μF θ (deg): -179.99°~179.99° R, Z: 0.0001Ω~99.99MΩ θ (rad): -3.1416~3.1416 D: 0.001~9.999	L: 0.01μH~9999H Q: 0.0001~9999 C: 0.01pF~9999μF θ (deg): -179.99°~179.99° R, Z: 0.0001Ω~99.99MΩ θ (rad): -3.1416~3.1416 D: 0.001~9.999
Source Resistance	100Ω
Range	Automatic or Manual
Maximum Reading	5 bits of main specification and 5 bit display of sub specification
Signal Level	0.6Vrms
Test Speed	4 times/second, 1.5 times/second
Comparator	1 sets, compare main specifications
Adjustment	Open/short scan frequency reset for each range

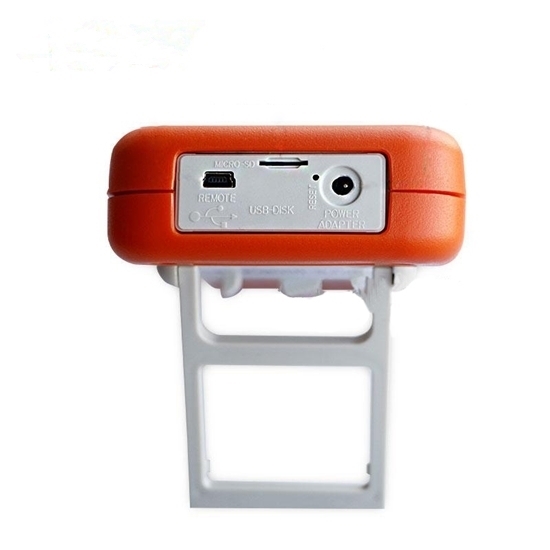

Interface	Build-in Mini-USB interface (virtual interface) Charging interface
Others	2.8 inch real color 16M color TFT-LCD display, touch screen, data retention function, USB communication, compatible SCPI instruction set, middle and English switching, backlight adjustment, automatic shutdown
Power Requirements	Input: 100~240V, 50/60Hz, 0.35A Output: 9V 1A DC 7.4V Li, 1300mAh Rechargeable battery
Certification	CE
Size (mm)	91 (W) x 194 (H) x 40 (D)

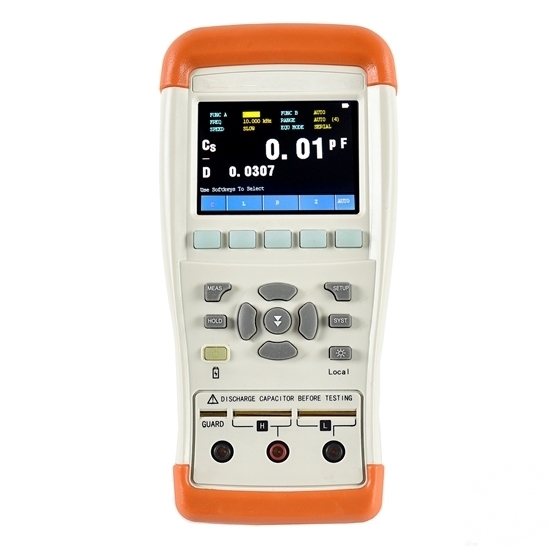

Panel Details

Dimension Drawing

Tips: Handheld LCR meter battery replacement.

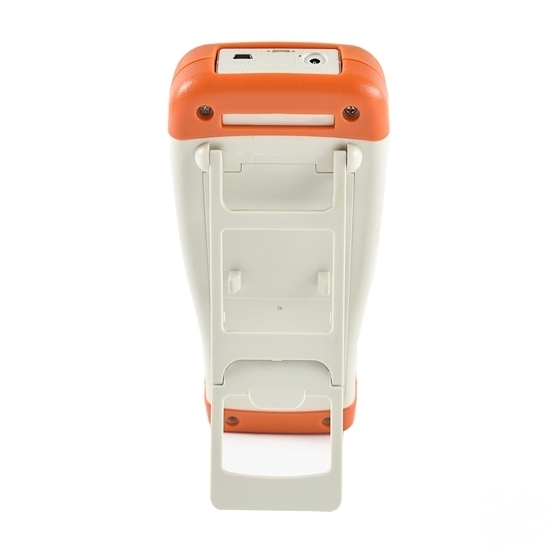

Use a cross screwdriver to remove screws on the bottom case of handheld LCR meter and open the bottom case.
Remove the battery from battery slot under the motherboard for replacement.
Battery must be rechargeable lithium battery with standard model.
Cover the bottom case and screw on, replacement is complete.

If the handheld LCR meter is not used for more than three months, or the external power adapter is always used for operation, remove the battery to prevent it leakage from corroding circuit board and causing damage to LCR meter.
