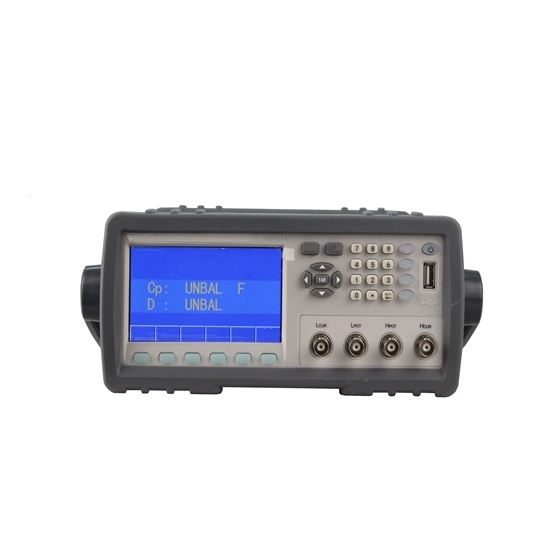

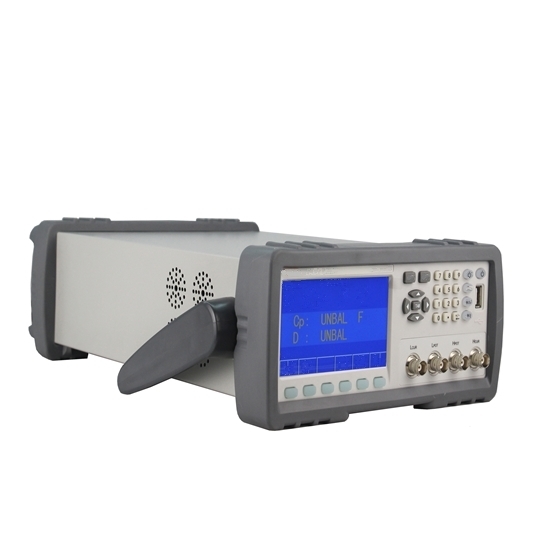

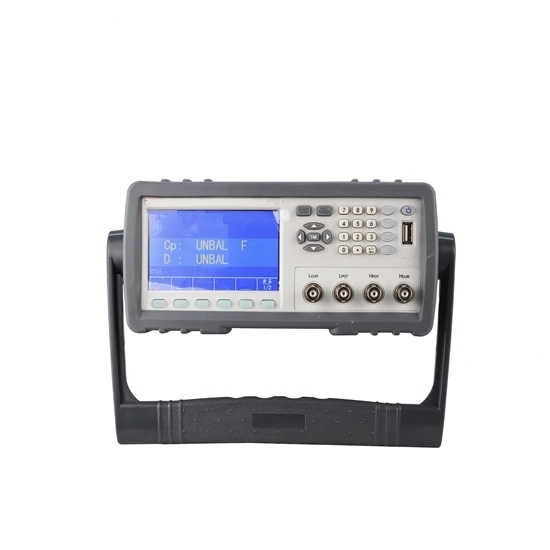

Digital LCR Meter, 50Hz~200kHz

0 reviews • Write a review

from

$1,396.62

Ex Tax: $1,396.62

Stock: In Stock
Model: RDDLZ-LCRM-5020
Weight: 1.00
SKU: RDDLZ-LCRM-5020

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Multi-functional precision digital LCR bridge with affordable price, equipped with 4.3-inch color TFT screen, 32-bit processor core. Test voltage or current automatic level control of ALC function, meet the demand of various occasions component parameter detection. It Is really a kind of high cost performance products tester.

Specification

Model	RDDLZ-LCRM-2816
Test Specifications	\|Z\|, \|Y\|, C, L, X, B, R, G, D, Q (deg), θ (Rad)
Test Frequency	50Hz~200kHz total of 37 frequency points
Basic Test Accuracy	0.05%
Equivalent Circuit	Series, parallel
Mathematical Function	Absolute value deviation, △%
Range Mode	Auto, Hold, manual
Trigger Mode	Internal, Manual, External, Bus
Measurement Speed (≥1kHz)	Fast: 75 time/second, Med: 12 time/second, Slow: 3 time/second
Averaging Rate	1—255
Delay Time	time 0—60s, n 1 ms step by step
Correction Function	Open, short, load
Test Configuration	5 ports
List Sweep	4 points
Display Mode	Direct, Δ, Δ%, V/I (V/I monitor)
Display	6 resolution, 4.3 Inch LCD monitor
Output Impedance	30 Ω, 100 Ω selectable
Power Requirements	110V~240V
Test Level	Normal: 5mV－2V, Accuracy: 10%, with step of 1 mV Constant level: 10mV－1V, Accuracy: 5%, with step of 1mV
DC Bias Source	0V, 1.5V, 2V, Accuracy: 1% (customization)
Display Range	\|Z\|, R, X: 0.01mΩ—99.9999MΩ DCR: 0.001mΩ—99.9999MΩ \|Y\|, G, B: 0.00001µS—99.9999S C: 0.00001pF—9.9999F L: 0.00001µH—9999.99H D: 0.00001—9.9999 Q: 0.00001—9999.9 θ (DEG): -179.999º—179.999º θ (RAD): -3.14159—3.14159
Comparator Function	10 bins: 9 pass bin, 1 fail bin, AUX bin
Certification	CE
Memory	100 control setting memory for store/recall, Outside of 500
Interface	RS232C, USB HOST, USB DEVICE

Panel Details

Dimension Drawing

Tips: Mode selection for LCR meter when measuring inductance.

Low impedance devices use series mode, the calculation accuracy will be high. Large impedance devices use parallel mode, the calculation accuracy will be high. If the impedance is greater than several hundred k or M, use parallel mode. In addition, when testing devices with small inductance and capacitance, increasing the test frequency appropriately can improve test accuracy. In practical applications of LCR meters, series mode is used more often.

Total impedance is greater than 10kΩ, use parallel mode.
Total impedance is less than 10Ω, use series mode.
Total impedance is between 10Ω and 10kΩ, measure according to measurement requirements of the LCR meter product manual.
