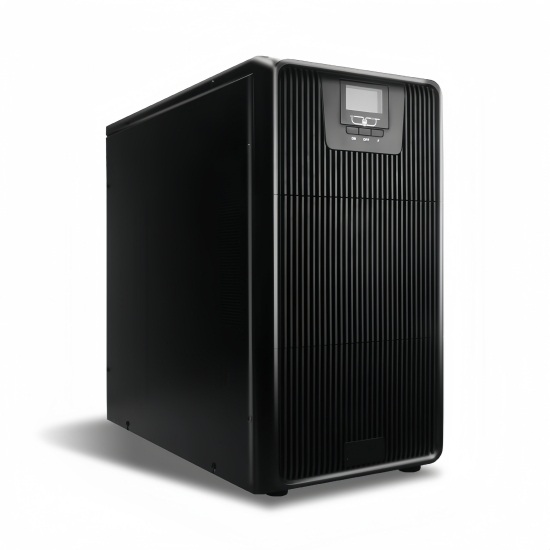

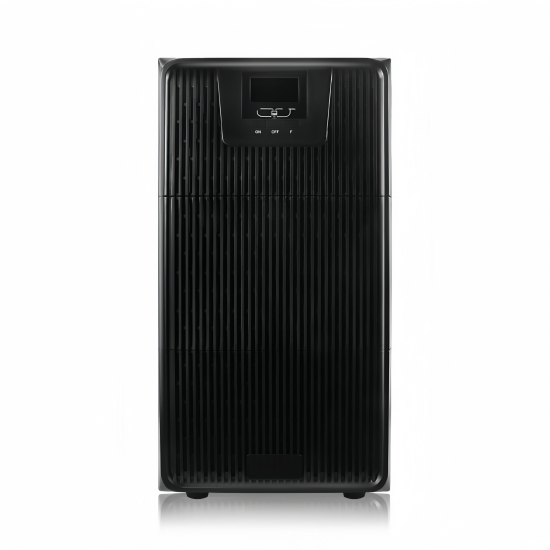

10kVA 120V/220V UPS Backup Uninterruptible Power Supply

0 reviews • Write a review

from

$3,565.87

Ex Tax: $3,565.87

Stock: In Stock
Model: RDDLZ-UPS-10K
Weight: 1.00
SKU: RDDLZ-UPS-10K

Available Options

Battery

Input & Output Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Applications

10kVA/8000 Watts UPS is an uninterruptible power supply to provide emergency power to a load, and it is mainly used in computers, office equipment, test equipment, light systems, safe alarm systems, ray equipment, medical equipment, copy machines, numerical control machine tools, industrial automation equipment, color and drying equipment, Hi-Fi equipment, etc.

10kVA/8000W UPS Specification

Basics	Model	RDDLZ-BE-10K
	Rated Capacity	10000VA/8000W
	Phase	Single Phase (L, N, G) * NOT support the split phase (L1, L2 + G) like USA standard.
	Weight (kgs)	16
	Dimension (mm)	442×190×318
Input	Nominal Voltage	208/220/230/240VAC
	Input Voltage Range	110-300 VAC (Based on load at 50%), 176-300 VAC (Based on load at 100%)
	Frequency Range	46-54 Hz or 56-64 Hz
	Power Factor	≥0.99 @ Nominal Voltage (100% load)
Output	Output Voltage	208/220/230/240VAC
	Voltage Regulation	±1%
	Frequency Range (Synchronized Range)	46-54 Hz or 56-64 Hz
	Current Crest Ratio	50 Hz or 60 Hz ±0.1Hz
	Harmonic Distortion	≤3% THD (Linear Load), ≤5 % THD (Non-linear Load)
	Transfer Time	Zero
	Waveform (Batt. Mode)	Pure Sinewave
Efficiency	AC Mode	93%
Efficiency	Battery Mode	91%
Battery	Battery Type	Depending on the capacity of external batteries
	Numbers	16 - 20 (Adjustable)
	Charging Current (Max.)	1A/2A/4A/6A (Adjustable, 6A is only available for 16pcs batteries)
	Charging Voltage	273 VDC 土1% (Based on 20pcs batteries)
Indicators	LCD	Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators
Alarm	Battery Mode	Sounding every 4 seconds
	Low Battery	Sounding every second
	Overload	Sounding twice every second
	Fault	Continuously sounding
Environment	Humidity	0-95% RH @ 0-40°C (non-condensing)
Environment	Noise Level	Less than 55dB @ 1 Meter
Management	Smart RS-232/USB	Supports Windows^® 2000/2003/XP/Vista/2008, Windows^® 7/8/10, Linux and MAC
Management	Optional SNMP	Power management from SNMP manager and web browser

Note:

1. The UPS input/output configuration is 1-phase (L, N, G) like Europe standard, NOT support the split phase (L1, L2 + G) like USA standard.

2. Batteries that work with this UPS are not included, customers need to match lead-acid battery packs on their own, consult us for battery specifications.

3. If you need other output voltage range, please contact us.

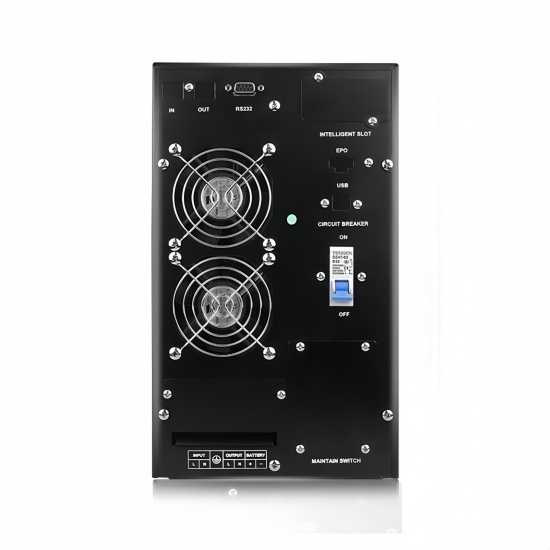

Rear Panel Diagram

External battery connector
RS-232 communication port
Intelligent slot
USB communication
Emergency power off function connector (EPO connector)
Cooling fan
Input circuit breaker
Input/ Output terminal (Refer to Diagrams 3 and 6 for the details)

Tips: Troubleshooting UPS - the battery voltage is low but the battery cannot be charged for more than 10 hours.

Judging from the phenomenon, it is the fault of the battery and charging circuit, which can be inspected according to the following procedures.

Check whether the input and output voltage of the UPS charging circuit is normal.
If the charging circuit has normal input and abnormal output, disconnect the UPS battery to test again. If it is still abnormal, it is the fault of the charging circuit.
If the charging circuit has normal input and output after the battery is disconnected, it indicates that the UPS battery has been damaged because of the long-term charging, long-term placement, and due life period.
