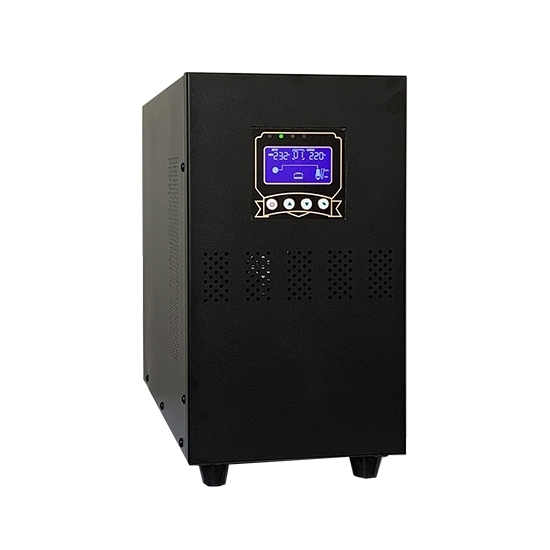

1500VA 120V/220V UPS Backup Uninterruptible Power Supply

0 reviews • Write a review

from

$833.35

Ex Tax: $833.35

Stock: In Stock
Model: RDDLZ-UPS-1.5K
Weight: 1.00
SKU: RDDLZ-UPS-1.5K

Available Options

Short Description

Battery

Input & Output Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Applications

1500VA/1050 Watts uninterruptible power supply (UPS) can provide a more steady power source for personal computer, office equipment, test equipment, light system, safe alarm system, ray equipment, medical equipment, copymachine, numerical control machine tools, industrial automation equipment, color and drying equipment, Hi-Fi equipment etc.

1.5kVA UPS Specification

Basic	Model	RDDLZ-BE-1.5K
	Rated Capacity	1500VA/1050W
	Phase	Single Phase (L, N, G) * NOT support the split phase (L1, L2 + G) like USA standard.
	Type	Line Interactive
	Weight	18kg
	Size	400150230mm
Input	Input Voltage Range	172-275V AC/ 85-135V AC
	Nominal Input Voltage	220V/230V/240V/110V/120V AC
	Input Frequency	45-65Hz
Output	Norminal Output Voltage	220V/120V AC
	Output Voltage Range (Normal Mode)	220V/120V AC±10%
	Output Voltage Range (Battery Mode)	220V/120V AC±10% (Modified Sine Wave)
	Output Frequency (Normal Mode)	Synchronized (Sine Wave)
	Output Frequency (Battery Mode)	50/60Hz±0.2%
	Wave Form	Modified Sine Wave
	Power Factor	0.9

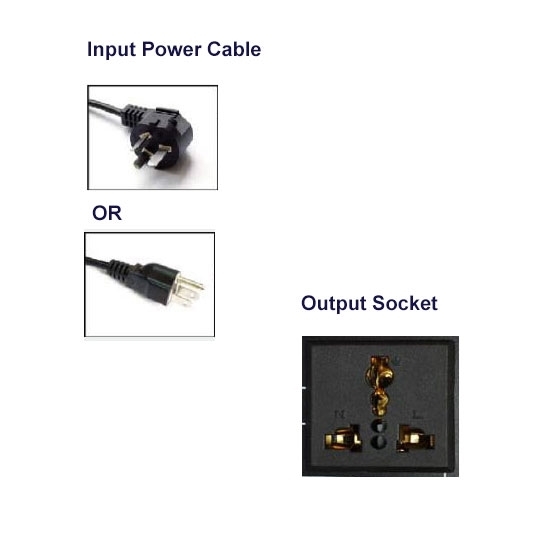

	Output Socket	Universal socket
Efficiency		>90%
Transfer Time		<10ms
Batteries & Runtime	Battery Type	Maintenance-free lead-acid battery
	Battery Modules (NOT Included)	12v7Ah3pcs (Battery size: 1509060mm)
	Backup Time (full/half load)	5 Minutes Backup time; for long backup mode, it depends on outside battery
	Charge Time	<12 hours (90%)
Display Status		LCD (NORMAL, FAULT, BATTERY, CHARGE, OVERLOAD)
Protection	Overload Protection	Automatic shut down when overload is within 110~130% after 10 seconds
		Shut down after 300ms when above 130%
Others	Peak Ratio for Load	3:1 (Max.)
	Distortion Rate (full load) Linear Load	<3%
	Distortion Rate (full load) Non-linear Load	<6%
	Communication Software	NETCCA POWER
Operating Environment	Working Temperature	0°C~40°C
	Relative Humidity	20~90% Non-condensing

Note:

1. The UPS input/output configuration is 1-phase (L, N, G) like Europe standard, NOT support the split phase (L1, L2 + G) like USA standard.

2. If you need other output voltage range, please contact us.

Details

Tips: Classification of UPS Power Supplies

UPS is divided into three categories: standby, online and line interactive.

The most commonly used type is standby UPS, which has the most basic and most important functions of UPS, such as automatic voltage stabilization, power-off protection. Although there is generally about 10ms conversion time, it is widely used in microcomputer, peripherals, POS machines and other fields because of its simple structure, low cost and high reliability.

The on-line UPS has a complex structure, but its performance is perfect. Its remarkable characteristic is to continuously output the pure sine wave AC power with zero interruption. It can solve all the problems of peak, surge, frequency drift and other power supply problems. Due to its larger cost, it is usually used in critical equipment and network centers with strict electric requirement.

Line interactive UPS, compared with the backup, has the function of filtering and strong anti electric interference ability. Its conversion time is less than 4ms and the inverter output is analog sine wave. So, it can be equipped with servers, routers and other network devices, or in a relatively harsh environment in power supply.
