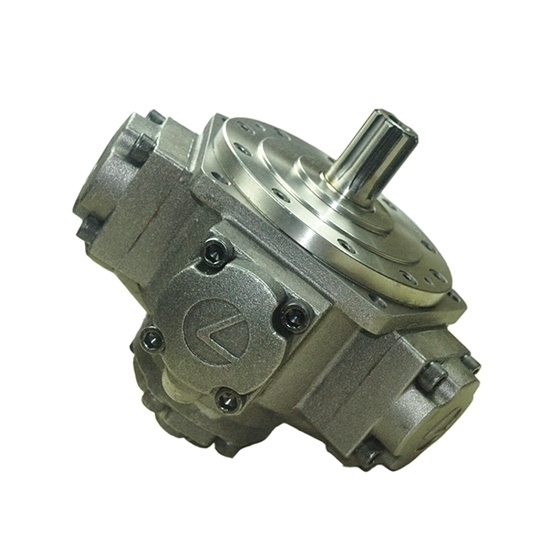

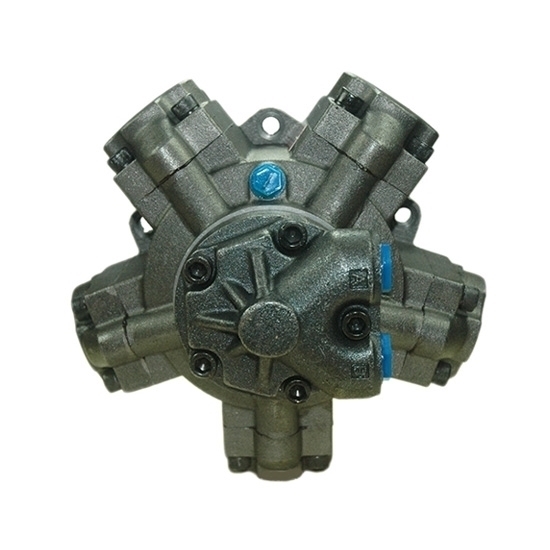

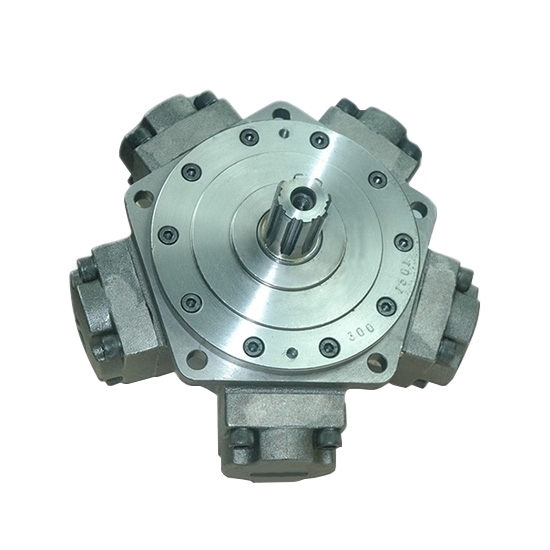

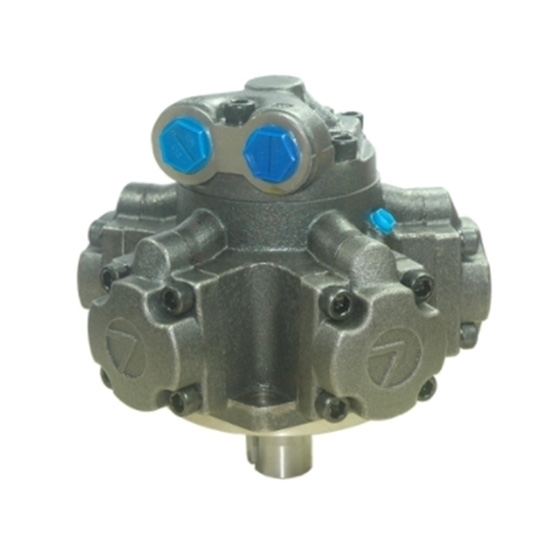

10 Hp 60-160cc Radial Piston Hydraulic Motor, 20MPa

0 reviews • Write a review

from

$1,314.77

Ex Tax: $1,314.77

Stock: In Stock
Model: RDDLZ-RPHM-1020
Weight: 1.00
SKU: RDDLZ-RPHM-1020

Available Options

Displacement (cc/r)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

60-160cc displacement radial piston hydraulic motor has optional working power of 8/9/10 hp (6000/7000/8000W), rated pressure 2030~2320 psi, rated torque 150~326N.m, speed range 15~1000/1250/1500 rpm. High torque, high speed and high efficiency hydraulic radial piston engine.

Specification

Model		RDDLZ-ZM1
Displacement (cc/r)		60	80	100	125	160
Theoretical Displacement (cc/r)		64	78	96	126	159
Rated Power	(hp)	8	8	9	10	10
Rated Power	(kW)	6	6	7	8	8
Rated Pressure	(MPa)	16	16	16	16	14
Rated Pressure	(psi)	2320	2320	2320	2320	2030
Peak Pressure (MPa)		22	20	20	20	20
Rated Torque (N.m)		150	183	225	295	326
Theoric Specific Torque (N.m/MPa)		9	11	14	18	23
Max. Speed (r/min)		450	420	350	320	280
Weight (kg)		23	23	23	23	23

Features

The radial piston hydraulic motor is a large torque motor with crankshaft and rod.
The shell of radial piston hydraulic motor is extruded and nitrided, which is resistant to wear, fatigue and high temperature.
The plunger body is nitrided, added with specially developed piston rings, and good wear resistance.
Oil seal of the radial piston hydraulic motor uses skeleton oil seals, high temperature resistance, high pressure, and it is not easy to leakage.
Applications of the radial piston hydraulic motor include injection molding machines, ship deck machinery, construction machinery, lifting vehicles, heavy metallurgical machinery, petroleum mine machinery, light equipment, board, drilling machines and other hydraulic transmission systems and equipment, etc.

10 hp Radial Piston Hydraulic Motor Dimensions Diagram (Unit: mm)

Standard Involute Spline

10 hp Radial Piston Hydraulic Motor Mounting Diagram

Details

Tips: 3 calculation formulas when using radial piston hydraulic motor

Actual output torque: M = 0.159 (P1 - P2) * V *ηm (N.m)
P₁, P₂: Inlet and outlet pressure ( MPa )
V: Displacement (cc/r)
ηm: Mechanical efficiency (%)
Output power
N = M.n/9550 (kW)
N = q (P₁-P₂)/60000 * ηm*ηv (kW)
n: Speed (rpm)
q: Input flow (mL/min)
ηv: Volumetrical efficiency (%)
Speed
n = q/V * ηv (rpm)
