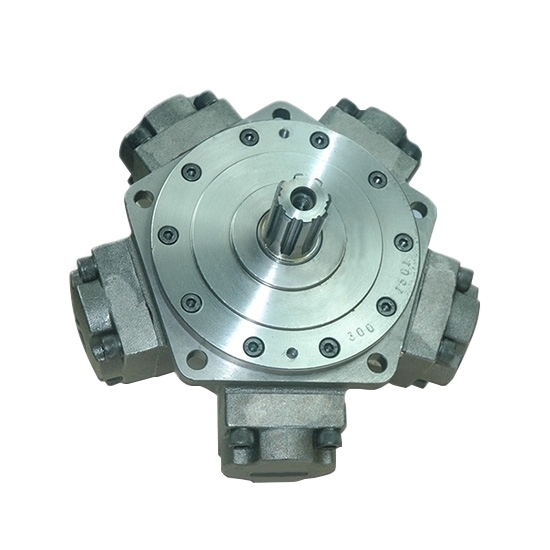

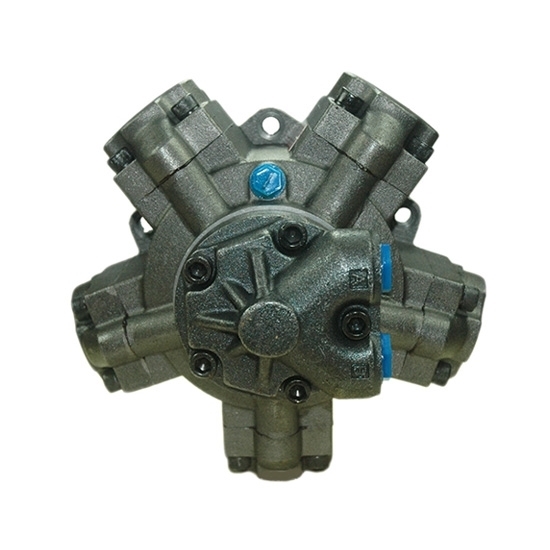

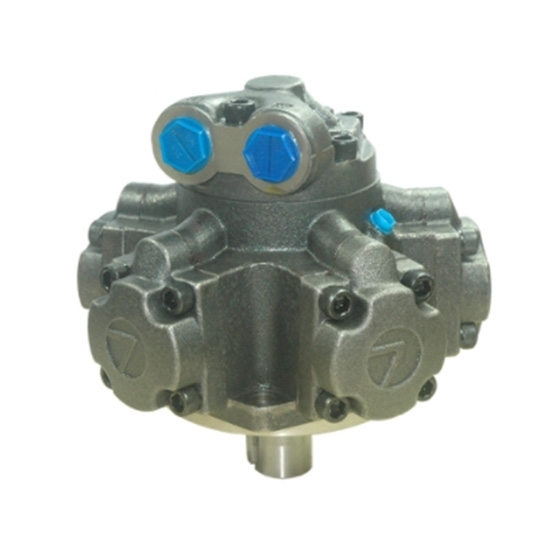

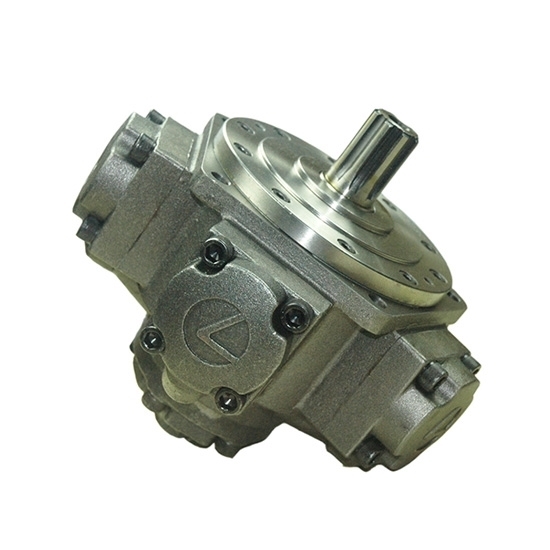

40 Hp 400-750cc Radial Piston Hydraulic Motor, 25MPa

0 reviews • Write a review

from

$2,063.69

Ex Tax: $2,063.69

Stock: In Stock
Model: RDDLZ-RPHM-4025
Weight: 1.00
SKU: RDDLZ-RPHM-4025

Available Options

Displacement (cc/r)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Radial piston hydraulic motor has high torque of 939~1616 N.m, works at power of 40~48 hp (30~36kW), displacement 400~750cc (mL/r), rated pressure 2030~2320 psi. If you need high output torque, please select a low speed.

Specification

Model		RDDLZ-ZM6
Displacement (cc/r)		400	450	500	600	700	750
Theoretical Displacement (cc/r)		397	452	491	594	683	754
Rated Power	(hp)	36	40	41	47	48	41
Rated Power	(kW)	27	30	31	35	36	31
Rated Pressure	(MPa)	16	16	16	16	16	14
Rated Pressure	(psi)	2320	2320	2320	2320	2320	2030
Peak Pressure (MPa)		22	22	25	20	20	18
Rated Torque (N.m)		939	1069	1162	1405	1616	1561
Theoric Specific Torque (N.m/MPa)		59	67	73	88	101	111
Max. Speed (r/min)		320	320	300	280	250	220
Weight (kg)		63	63	63	63	63	63

Features

The radial piston hydraulic motor is a large torque motor with crankshaft and rod.
The shell of radial piston hydraulic motor is extruded and nitrided, which is resistant to wear, fatigue and high temperature.
The plunger body is nitrided, added with specially developed piston rings, and good wear resistance.
Oil seal of the radial piston hydraulic motor uses skeleton oil seals, high temperature resistance, high pressure, and it is not easy to leakage.
Applications of the radial piston hydraulic motor include injection molding machines, ship deck machinery, construction machinery, lifting vehicles, heavy metallurgical machinery, petroleum mine machinery, light equipment, board, drilling machines and other hydraulic transmission systems and equipment, etc.

40 hp Radial Piston Hydraulic Motor Dimensions Diagram (Unit: mm)

Standard Involute Spline

40 hp Radial Piston Hydraulic Motor Mounting Diagram
