150kVA 3-Phase 400v 50Hz/208v 60Hz Frequency Converter

Free Shipping

150kVA 3-Phase 400v 50Hz/208v 60Hz Frequency Converter

0 reviews • Write a review

from

$34,716.39

Ex Tax: $34,716.39

Stock: In Stock
Model: HZ-50-33150
Weight: 1.00
SKU: HZ-50-33150

Available Options

Input Voltage (Three Phase)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

150 kVA 3 phase 220V 60 Hz to 400V, 380V 50 Hz static frequency converter, adjustable output Hertz (40.0 Hz - 400 Hz) and Volt (0 - 520V), convert fixed power supply to variable-frequency and variable-voltage.

Specification:

Model	HZ-50-33150
Capacity	150 kVA
Dimension	15008601430 mm
Weight	800 kg

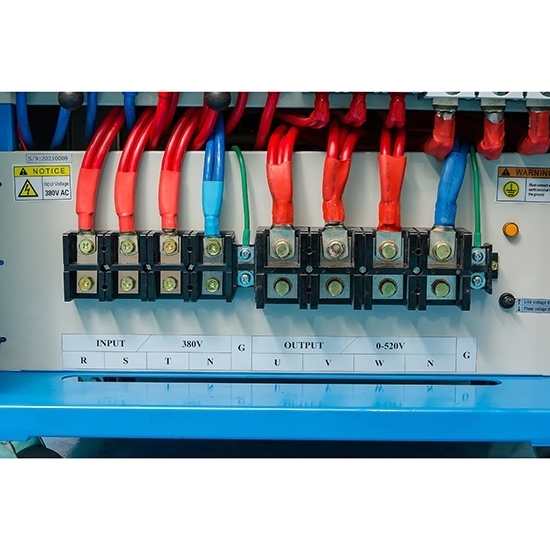

Input	Voltage	3 Phase 4 Wire: Wye Type 190/110, 200/115, 208/120, 220/128, 230/132, 240/139V ±10% (option *)
		3 Phase 4 Wire: Wye Type 380/220, 400/230, 415/240, 440/254, 460/265, 480/277V ± 10% (option *)
		3 Phase 4 Wire: Della Type 220, 230, 240, 380, 400, 415, 440V ± 10% (option *)
	Frequency	50 Hz, 60 Hz or 400 Hz ± 5%

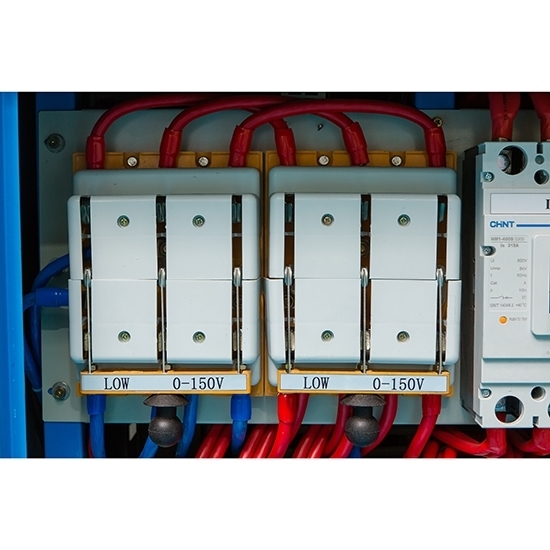

Output	Voltage, current	110V Setting (Low grade): 0-150V (phase voltage), 0-260V (line voltage) 418A
	Voltage, current	220V Setting (High grade): 0-300V (phase voltage), 0-520V (line voltage) 209A
	Load stabilization Rate	≤±1%
	Frequency	50Hz, 60Hz up to 400Hz adjustable Note: -When the output is 400Hz, the load capacity can only reach 50% of the rated capacity. -When the output is ≤120Hz, the load capacity can reach 100% of the rated value. -You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
	Frequency Stability	≤±0.01%
	Harmonic Distortion	Pure Sine Wave ≤2%

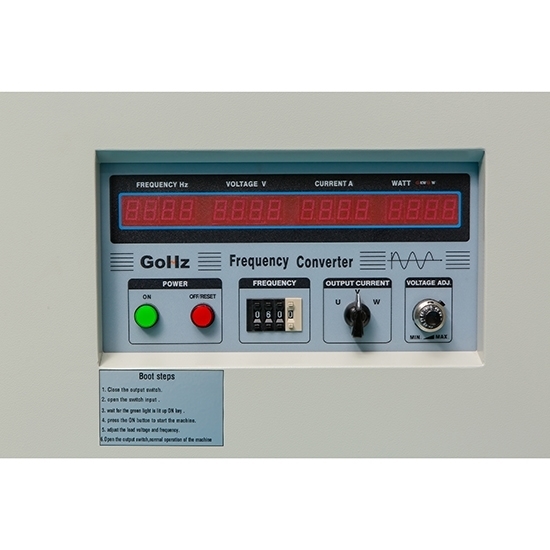

	Frequency meter	4 digit, digital frequency meter, resolution 0.1Hz/Step
	Voltmeter	4 digit, digital voltage meter, resolution 0.1V
	Ammeter	4 digit, digital ammeter, resolution 0.1A
	Watt meter	4 digit, digital Watt meter, resolution 0.1W
Protection	With overload, short circuit, over temperature
Protection	Instantaneous power failure protection and alarm device
Working Environment	Temperature	0 - 40 deg.℃
Working Environment	Humidity	0 - 90% (Non condensation)
Warranty	18 months
