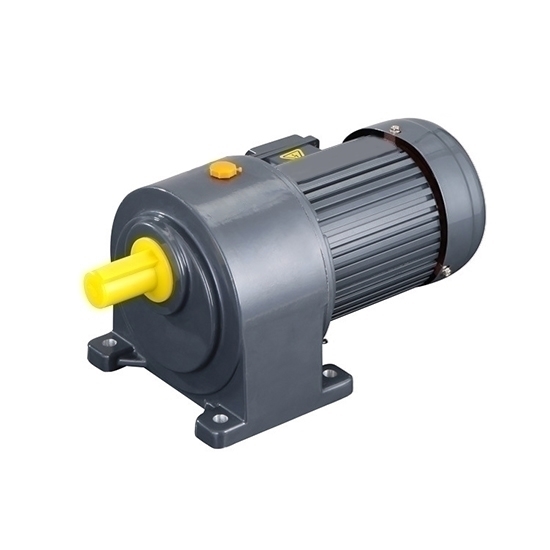

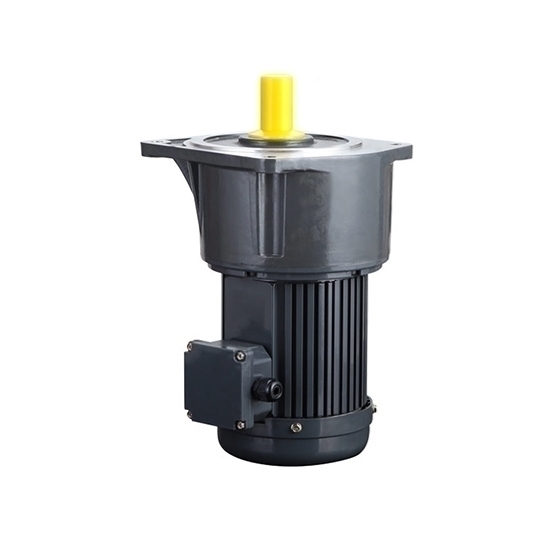

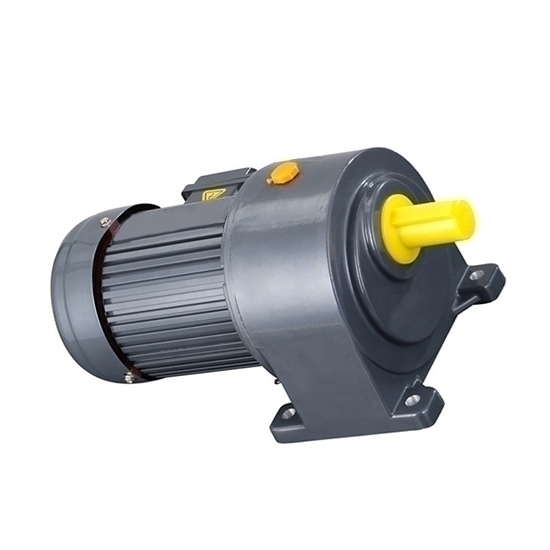

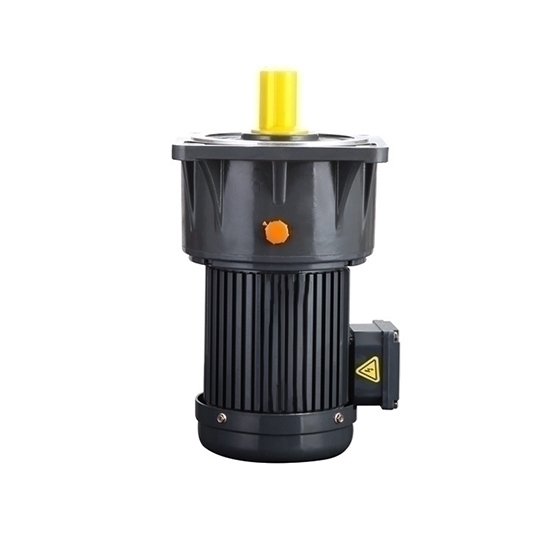

3-phase gear motor works at 3700 watt rated power and 3-phase 220V/380V rated voltage, outputs high torque and low rpm, gear ratio 3~60 to choose. Vertical or horizontal installation is available. If you need high torque, select a low reduction ratio.

Basic Specification

• Model: RDDLZ-CV40-3700（(Ratio:3~10), RDDLZ-CV50-3700（(Ratio:15~60)
• Rated Power: 3700W (5 hp)
• Rated Voltage: Optional 3-phase 220V/380-415V
• Gear Ratio: 3~60:1
• Working Efficiency: 75%
• Insulation Grade: Class B, Class F can be customized
• Protection Grade: IP54
• Duty: Continuous running
• Working Environment: Temperature 10℃~+40℃ and Humidity ≤90%
• Pole: 4P (6P)
• Working Height: ≤1000m
• Standard: GB755/IEC-60034

Terminal Box Direction (From Output Shaft)

AC Gear Motor Standard Installation

• All the RDDLZ 3-phase AC gear motors are suitable for this installation method, as shown in the following diagram.
• In the diagram, Q1, Q4, Q7, Q8 are the standard types of oil hole direction. If you need the air hole be on a special position, please contact us to modify the air hole direction.
• In actual use, it is recommended to pull out the oil plug in the air hole to balance the pressure in gearbox.

Details

Tips: 3-Phase AC gear motor applications.

AC gear motor refers to the combination of a gearbox and a motor, which is also known as gearbox motor or reduction motor. 3-Phase AC gear motor is widely used and belongs to the indispensable power transmission equipment of automatic machinery and equipment, especially in the fields of smart home kitchen, medical equipment, industrial equipment, security equipment, office supplies, robots, and model airplanes.

• Application of 3-Phase AC gear motor in smart home kitchen

Mainly include household juicer motor, coffee machine motor, sweeper motor, etc. 3-Phase AC gear motor is manufactured in accordance with international professional standard production technology requirements. The low-noise technology allows users to not have to endure the trouble of noise when using it.

• Application of 3-Phase AC gear motor in medical equipment

Mainly include the research and development of medical equipment projects such as intelligent navigation electric wheelchair motors, minimally invasive abdominal surgery robot motors, intelligent massage chair motors, and medical robot motors. The 3-Phase AC gear motor has undergone precision machining to ensure positioning accuracy, forming a mechatronics, which fully guarantees the quality of the product.

• Application of 3-Phase AC gear motor in industrial equipment

Mainly include elevator motors, knife sharpener motors, blower motors, oven motors, etc. 3-Phase AC gear motor uses a serialized and modular design concept and has a wide range of adaptability. RDDLZ 3-Phase AC gear motor has many combination installations, installation positions and structural solutions. Any speed and structure can be selected according to actual needs.
