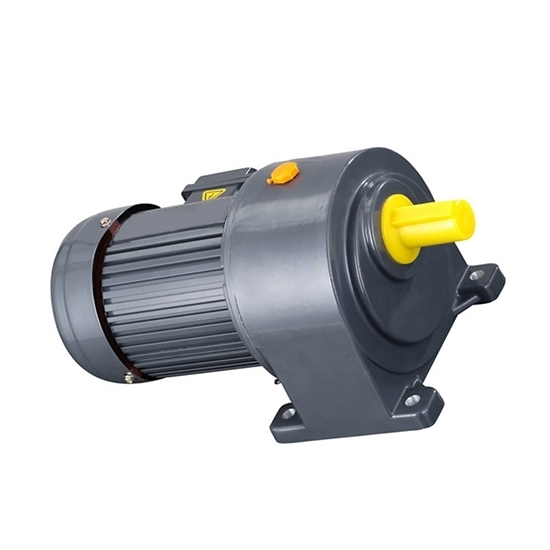

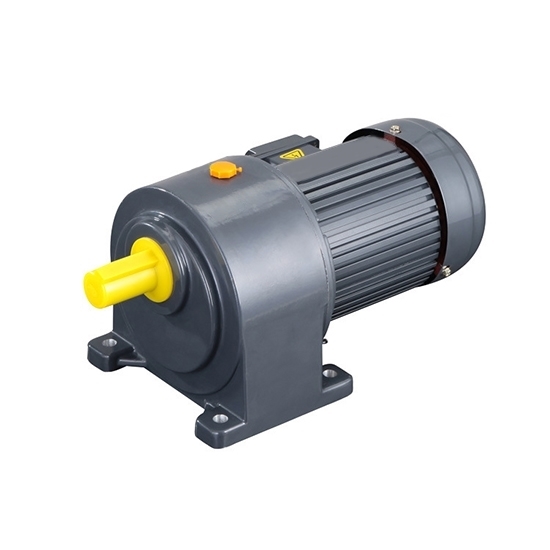

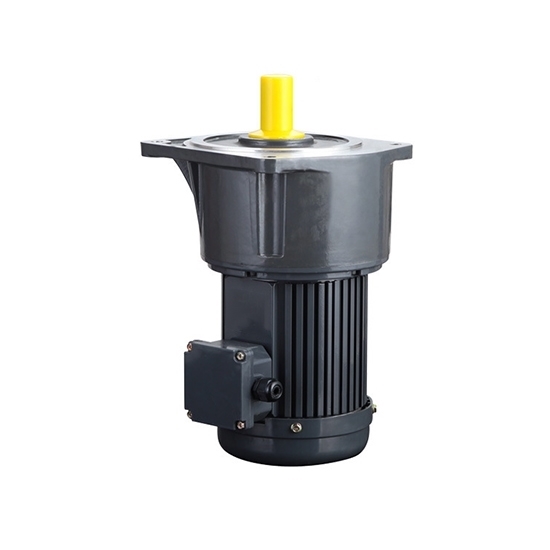

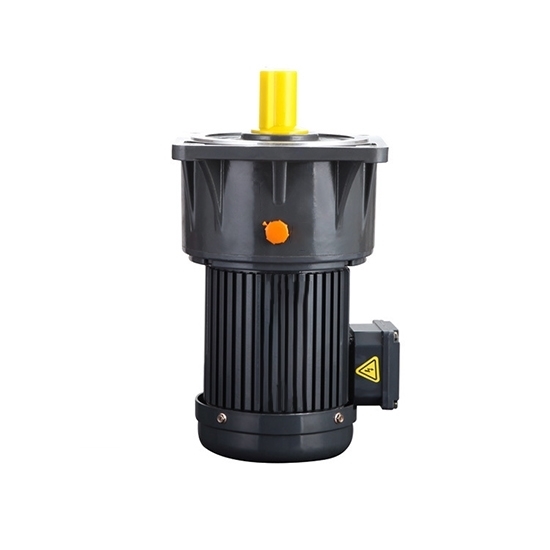

100W 3-Phase AC Gear Motor, Horizontal, Ratio 3~100

0 reviews • Write a review

from

$462.62

Ex Tax: $462.62

Stock: In Stock
Model: RDDLZ-GEAR-HV100
Weight: 1.00
SKU: RDDLZ-GEAR-HV100

Available Options

Rated Voltage

Gear Ratio

Installation

Terminal Box Direction

Air Hole Direction

With Brake (DC 90V)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low price 100W 3-phase AC gear motor has optional gear ratios of 3~100:1, horizontal or vertical mounting is available. A higher gear ratio has a lower output speed (15~570 rpm) and higher torque (0.16-5.8 kg.m).

Basic Specification

Model	RDDLZ-CH18-100（(Ratio:3~50) , RDDLZ-CH22-100（(Ratio:60~200)
Rated Power	100W
Rated Voltage	Single-phase 110V, 50/60Hz Single-phase 220V, 50/60Hz 3-phase 220V, 50/60Hz 3-phase 380-415V, 50/60Hz
Gear Ratio	3:1/ 5:1/ 10:1/ 15:1/ 20:1/ 25:1/ 30:1/ 40:1/ 45:1/ 50:1/ 60:1/ 70:1/ 80:1/ 90:1/ 100:1
Working Efficiency	75%
Insulation Grade	Class B, Class F can be customized
Protection Grade	IP54
Duty	Continuous running
Working Environment	Temperature 10℃~+40℃ Humidity ≤90%
Pole	4P (6P)
Working Height	≤1000m
Standard	GB755/IEC-60034
Download Attachments	100W 3 Phase AC Gear Motor Datasheet

Terminal Box Direction (From Output Shaft)

AC Gear Motor Standard Installation

All the RDDLZ 3-phase AC gear motors are suitable for this installation method, as shown in the following diagram.
In the diagram, Q1, Q4, Q7, Q8 are the standard types of oil hole direction. If you need the air hole be on a special position, please contact us to modify the air hole direction.
In actual use, it is recommended to pull out the oil plug in the air hole to balance the pressure in gearbox.

Details

Tips: Gear ratio calculation for 3-phase AC gear motor.

To select the reduction ratio of 3-phase AC gear motor, we use the necessary revolutions number (rpm) of the input shaft and output shaft.

Calculate the rpm of conveyor belt rollers (N1)
N1 = Conveying speed ÷ (roller diameter × π)
Calculate the output shaft rpm of 3-phase AC gear motor (N2)
N2 = N1 × (number of sprocket gear ÷ gear number of motor)
Calculate the gear ratio with a 3φ.60Hz motor (i)
i = the output shaft rpm ÷ the input shaft rpm (motor rpm N)

Calculation example

N1 = V ÷ (D × π) = 9.5 ÷ (0.2×3.14) = 15r/min (rpm)
N1 = N1 × (26/13) = 15 × 2/1 = 30r/min (rpm)
i = N2/N1 = 30/1800 = 1/60 (motor rpm)
