120W Single Phase AC Gear Motor, Speed Control

0 reviews • Write a review

from

$420.16

Ex Tax: $420.16

Stock: In Stock
Model: RDDLZ-GEAR-120W
Weight: 1.00
SKU: RDDLZ-GEAR-120W

Available Options

Short Description

Gear Ratio

Model Selection

With Speed Controller

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

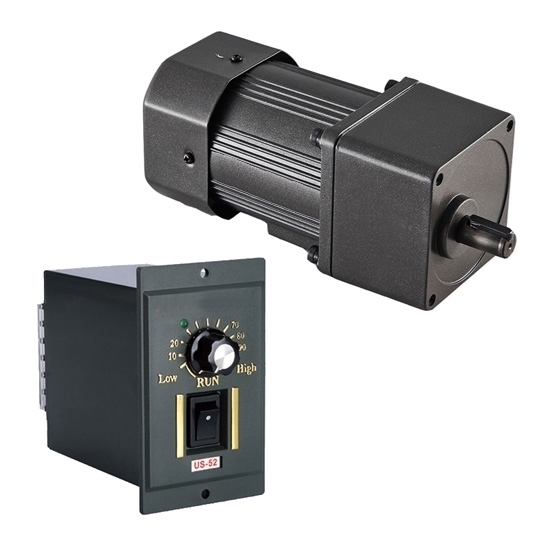

Best and cheap price 1-phase 120W geared AC motor with a speed controller to adjust the rpm that you required, 3:1 to 200:1 gear ratio for selection, is ideal for a wide variety of applications due to their long life, aesthetic design, low noise and high efficiency.

Specifications

Model		RDDLZ-5IK120R-AF		RDDLZ-5IK120R-EF		RDDLZ-5IK120R-CF		RDDLZ-5IK120R-HF
Shaft Type		Pinion shaft or Round shaft (Optional)
Output Power		120W
Phase		Single Phase
Voltage		100V		110V	120V	220V	230V	220V	230V
Frequency		50Hz	60Hz	60Hz		50Hz		60Hz
Current		2.1A	2.5A	1.65A	1.8A	1.00A	0.95A	1.00A	0.95A
Speed Control Range		90-1350r/min	90-1360r/min	90-1650r/min		90-1350r/min		90-1650r/min
Allowance Torque	1200r/min	750mN.m		750mN.m		750mN.m		750mN.m
	90r/min	330mN.m		360mN.m		330mN.m		360mN.m
Starting Torque		530mN.m		530mN.m		530mN.m		530mN.m
Capacitor		30μF		25μF		7μF		7μF
Weight		Motor: 3.5kg, Gearhead: 1.5kg
Gearbox Model		5GU[]K
Gear Ratio		3, 3.6, 5, 6, 7.5, 9, 12.5, 15, 18, 25, 30, 36, 50, 60, 75, 90, 100, 120, 150, 180,200 Enter the gear ratio into the box ([]) within the model name

Allowance Torque Unit: Upside (N.m) / Belowside (kgf.cm)

Model	Gear Ratio		3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	120	100	83	60	50	41	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10	9
RDDLZ-5IK120R-AF RDDLZ-5IK120R-EF RDDLZ-5IK120R-CF RDDLZ-5IK120R-HF	Gearbox 5GU[]K	50Hz	2.3	2.7	3.8	4.5	5.6	6.8	8.5	10.2	12.2	15.3	18.4	20	20	20	20	20	20	20	20	20	20
		50Hz	23.4	27.5	38.7	45.9	57.1	69.3	86.7	104	124	156	187	200	200	200	200	200	200	200	200	200	200
		60Hz	1.8	2.2	3.0	3.6	4.6	5.5	6.8	8.2	9.8	12.4	14.9	17.8	20	20	20	20	20	20	20	20	20
		60Hz	18.3	22.4	30.6	36.7	46.9	56.1	69.5	83.6	100	126	152	181	200	200	200	200	200	200	200	200	200

Gear Motor Dimension (Unit: mm)

(Note: L1=65.5mm)

Keyway Dimension of Gearhead (Unit: mm)

Shaft Section Dimension of Round Shaft Type (Unit: mm)

(Note: For the round shaft type gear motor, the shape are the same as those of the pinion shaft type except the shaft section)

Speed Controller Dimension (Unit: mm)

Wiring Diagram

Details

Tips: What is cascade speed regulation of gear motor?

Cascade speed regulation refers to the adjustment of additional electric potential in the rotor circuit of a wound motor to change the slip of the motor to achieve the purpose of speed regulation. Most of the slip power is absorbed by the additional potential in the series, and then an additional device is generated to return the absorbed slip power to the grid or convert the energy for use.

According to the slip power absorption and utilization methods, cascade speed regulation can be divided into motor cascade speed regulation, mechanical cascade speed regulation and thyristor cascade speed regulation. Most of them adopt thyristor cascade speed regulation, and their characteristics are:

The slip loss in the speed regulation process can be fed back to the power grid or production machinery with high efficiency.
The capacity of the device is directly proportional to the speed regulation range, and the investment is low, which is suitable for production machinery whose speed regulation range is between 70% and 90% of the rated speed.
When the speed regulation device fails, it can be switched to full speed operation to avoid production suspension.
Thyristor cascade speed regulation has a low power factor and a large impact on harmonics.
This method is suitable for use on fans, water pumps, rolling mills, mine hoists, and extruder.
