200W Single Phase AC Gear Motor, Speed Control

0 reviews • Write a review

from

$538.41

Ex Tax: $538.41

Stock: In Stock
Model: RDDLZ-GEAR-200W
Weight: 1.00
SKU: RDDLZ-GEAR-200W

Available Options

Short Description

Gear Ratio

Model Selection

With Speed Controller

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

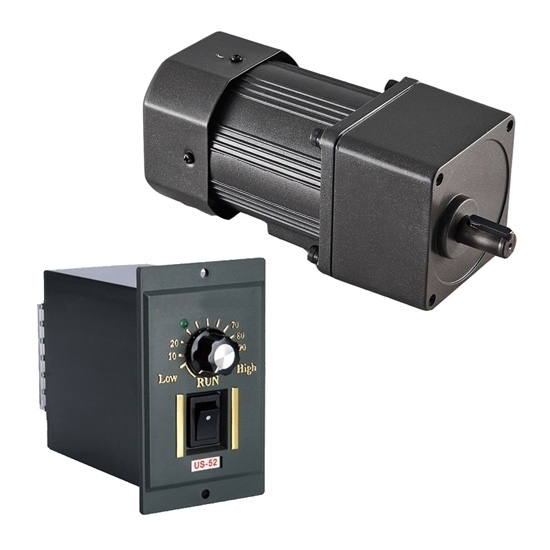

High torque single phase 200W AC gear motor with speed controller, rated voltage 220-230V, motor rotation direction: CW or CCW, support reversed. The direction of rotation of the motor can be controlled by the speed controller.

Specifications

Model		RDDLZ-6IK200R-CF		RDDLZ-6IK200R-HF
Shaft Type		Pinion shaft or Round shaft (Optional)
Output Power		200W
Phase		Single phase
Voltage		220V	230V	220V	230V
Frequency		50Hz		60Hz
Current		1.40A		1.40A
Speed Control Range		90-1350r/min		90-1650r/min
Allowance Torque	1200r/min	920mN.m		920mN.m
	90r/min	500mN.m		500mN.m
Starting Torque		1000mN.m		1000mN.m
Capacitor		10μF		10μF
Weight		Motor: 5.1kg, Gearhead: 2.1kg
Gearbox Model		6GU[]K
Gear Ratio		3, 3.6, 5, 6, 7.5, 9, 12.5, 15, 18, 25, 30, 36, 50, 60, 75, 90, 100, 120, 150, 180,200 Enter the gear ratio into the box ([]) within the model name

Allowance Torque Unit: Upside (N.m) / Belowside (kgf.cm)

Model	Gear Ratio		3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	120	100	83	60	50	42	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10	9
RDDLZ-6IK200R-CF RDDLZ-6IK200R-HF	Gearbox 6GU[]K	50Hz	3.71	4.46	6.19	7.43	9.28	11.1	13.9	16.7	20.1	25.2	30.3	36.3	40	40	40	40	40	40	40	40	40
		50Hz	37.9	45.5	63.1	75.8	94.7	114	142	171	205	257	309	370	400	400	400	400	400	400	400	400	400
		60Hz	2.99	3.59	4.99	5.99	7.49	8.89	11.2	13.5	16.2	20.3	24.4	29.3	40	40	40	40	40	40	40	40	40
		60Hz	30.6	36.7	50.9	61.1	76.4	91.7	115	138	165	207	249	299	400	400	400	400	400	400	400	400	400

Gear Motor Dimension (Unit: mm)

(Note: L1=72mm)

Keyway Dimension of Gearhead (Unit: mm)

Shaft Section Dimension of Round Shaft Type (Unit: mm)

(Note: For the round shaft type gear motor, the shape are the same as those of the pinion shaft type except the shaft section)

Speed Controller Dimension (Unit: mm)

Wiring Diagram

Details

Tips: The speed controller must meet the stability conditions

When the speed of the unit deviates from the set value, the speed controller can respond accordingly, and at the same time, it must have a regular restoring force to restore the speed controller to its original state. The spring in the centrifugal speed controller is the part that generates the restoring force. Such a speed controller is called a static stable speed controller. However, a static stable speed controller may also have dynamic instability during the adjustment process. When the adjustment action is excessive and reverse adjustment occurs, the actual adjustment action will form an oscillating process. The speed controller that makes the oscillation quickly decay is called a dynamic stable speed controller, otherwise it is a dynamically unstable speed controller, which cannot guarantee the normal operation of the machine.
