140W Single Phase AC Gear Motor, Speed Control

0 reviews • Write a review

from

$475.39

Ex Tax: $475.39

Stock: In Stock
Model: RDDLZ-GEAR-140W
Weight: 1.00
SKU: RDDLZ-GEAR-140W

Available Options

Short Description

Gear Ratio

Model Selection

With Speed Controller

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

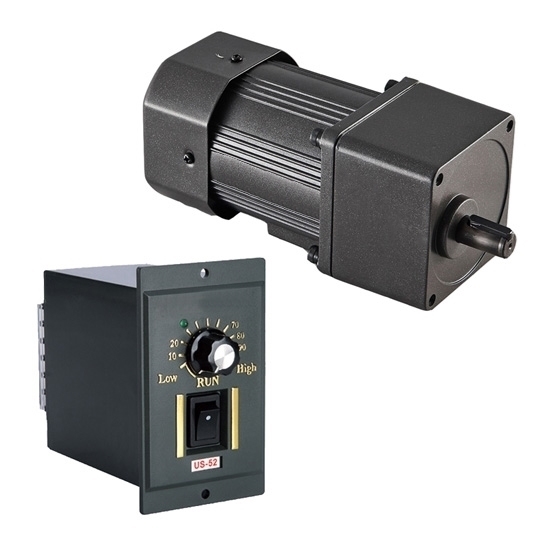

140 watt 1-phase AC gear motor is a speed control electric motor, which designed to produce high torque, pinion shaft type or round shaft type for optional, different gear ratio to choose, the smaller reduction ratio, the higher gearbox output speed. Widely applicable for automatic machinery, small scale assembly line, food machinery, packaging machinery and more.

Specifications

Model		RDDLZ-6IK140R-AF		RDDLZ-6IK140R-EF		RDDLZ-6IK140R-CF		RDDLZ-6IK140R-HF
Shaft Type		Pinion shaft or Round shaft (Optional)
Output Power		140W
Phase		Single Phase
Voltage		100V		110V	120V	220V	230V	220V	230V
Frequency		50Hz	60Hz	60Hz		50Hz		60Hz
Current		2.7A	3.0A	1.8A	1.95A	1.05A	1.15A	1.05A	1.15A
Speed Control Range		90-1350r/min	90-1360r/min	90-1650r/min		90-1350r/min		90-1650r/min
Allowance Torque	1200r/min	830mN.m		830mN.m		830mN.m		830mN.m
	90r/min	420mN.m		450mN.m		420mN.m		450mN.m
Starting Torque		620mN.m		620mN.m		620mN.m		620mN.m
Capacitor		35μF		25μF		10μF		10μF
Weight		Motor: 5.1kg, Gearhead: 2.1kg
Gearbox Model		6GU[]K
Gear Ratio		3, 3.6, 5, 6, 7.5, 9, 12.5, 15, 18, 25, 30, 36, 50, 60, 75, 90, 100, 120, 150, 180,200 Enter the gear ratio into the box ([]) within the model name

Allowance Torque Unit: Upside (N.m) / Belowside (kgf.cm)

Model	Gear Ratio		3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	120	100	83	60	50	41	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10	9
RDDLZ-6IK140R-AF RDDLZ-6IK140R-EF RDDLZ-6IK140R-CF RDDLZ-6IK140R-HF	Gearbox 6GU[]K	50Hz	2.6	3.1	4.4	5.2	5.2	6.6	9.9	11.8	14.2	17.8	21.4	25.7	35.6	40	40	40	40	40	40	40	40
		50Hz	26.5	31.6	44.8	53.0	53.0	80.6	101	120	144	181	218	262	263	400	400	400	400	400	400	400	400
		60Hz	2.1	2.5	3.5	4.2	4.2	6.3	7.9	9.5	11.4	14.4	17.2	20.7	28.7	34.5	40	40	40	40	40	40	40
		60Hz	21.4	25.5	35.7	42.8	42.8	64.2	80.6	96.9	116	147	175	211	292	352	400	400	400	400	400	400	400

Gear Motor Dimension (Unit: mm)

(Note: L1=72mm)

Keyway Dimension of Gearhead (Unit: mm)

Shaft Section Dimension of Round Shaft Type (Unit: mm)

(Note: For the round shaft type gear motor, the shape are the same as those of the pinion shaft type except the shaft section)

Speed Controller Dimension (Unit: mm)

Wiring Diagram

Details

Tips: Why you need a speed control AC gear motor?

The addition of a gear motor can reduce the moment of inertia. Generally, the square of the speed ratio is reduced, and the start, stop, and speed can be controlled in time.
Increasing the torque through the speed control AC gear motor is equivalent to increasing the input power, which can reduce the power required by the input motor (where speed adjustment is required). Generally, the motor is expensive, so consider using a gear motor.
The geared motor has the function of protecting the motor in the transmission. During operation, the geared motor bears a large amount of torque. Only the overloaded amount divided by the reduction ratio is transmitted to the motor during overload. If it is directly borne by the motor, the motor may be damaged.
When the speed control AC gear motor is overloaded, the gearboxis damaged first, and the gearbox can be restored to use only by replacing the spare parts. The cost is relatively low. If the motor is directly damaged, the repair is relatively slow and the cost is high.
When the geared motor is directly connected to the load and runs at low speed, the motor will inevitably increase in order to meet the output torque current. This will inevitably have higher requirements for the heat dissipation and insulation of the motor. It is also not desirable from the perspective of energy saving. A speed control gear motor can reduce the impact of these problems.
