Note: This control valve cannot be used for drinking water.

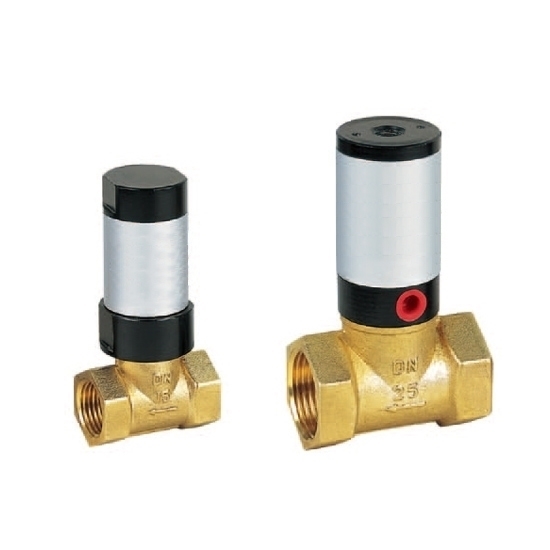

The provided 1" (DN25) air control valve is a 2 way valve actuated by air pressure and can be used to completely open or close the flow of fluid according to the application requirements. Quality pneumatic control valve is suitable for oil and gas, chemical processing, pharmaceutical, Food and beverage and water treatment fields.

Specifications

• Model: RDDLZ-Q22HD-25
• Nominal Diameter: DN25
• Connecting Thread: ZG1"
• Actuator: Pneumatic Actuator
• Type: 2 Way, 2 Position
• Product Form: Normally Closed
• Working Pressure: 0~1.0Mpa
• Valve Body Material: Brass
• Sealing Material: VITON/PTFE
• Medium Temperature: VITON: -5~150℃, PTFE: -10~180℃
• Flow Coefficient KV Value: 10
• Weight: 0.519kg
• Working Medium: Air, Water, Oil, Liquefied Petroleum Gas, and Fluid with Light Dynamic Viscosity

Dimensions (Unit: mm)

Applications

The air control valve has low starting pressure, high closing sensitivity, good sealing performance, and arbitrary import and export directions, widely used in food, medicine, industry, washing, petrochemical, metallurgy, spraying, vehicles and other mechanical equipment.

Tips: What is a pneumatic control valve?

A pneumatic control valve is a type of valve that is actuated by compressed air or gas. It is designed to control the flow of a fluid, such as air, water, or oil, in a process or system. Pneumatic controlled valves are widely used in various industrial applications, including manufacturing, chemical processing, and automation.

In a pneumatically controlled valve, compressed air or gas is used to actuate the valve, which can be opened or closed to control the flow of fluid. The valve mechanism may use different designs, such as a disk, diaphragm, or piston, to regulate the flow of fluid.

When compressed air or gas is introduced into the valve, it applies pressure to the mechanism and moves it to open or close the valve.

Pneumatic control valves can be used for various purposes, such as on/off control, flow control, pressure control, and directional control. They are often used in conjunction with other pneumatic components, such as actuators, regulators, and pressure sensors, to create a complete control system.

Pneumatic control valves are known for their fast response times, precision, and reliability. They are also easy to install and maintain, making them a popular choice in many industries. Overall, pneumatically controlled valves are an essential component in many industrial processes and are widely used to control the flow of fluid in various applications.
