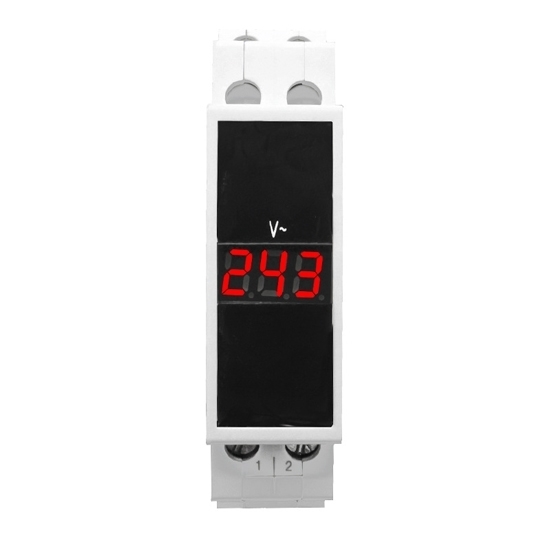

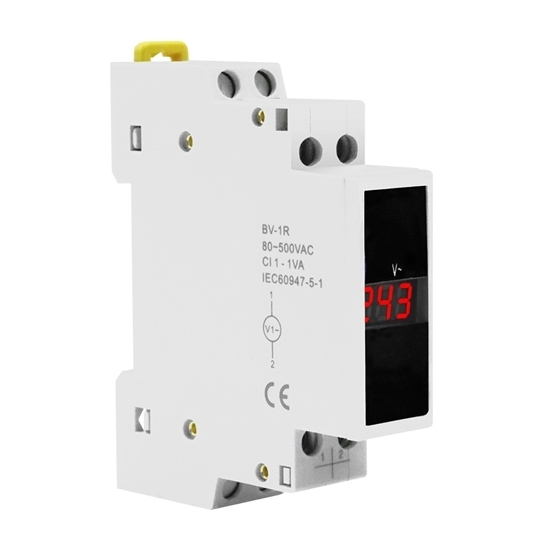

Single phase modular voltmeter features a compact design with easily replaceable or interchangeable modules, providing flexibility and convenience for users. Its primary function is to display and quantify voltage levels in single-phase AC circuits, making it a practical choice for technicians, engineers, and professionals working with single phase AC systems.

Specification

• Model: RDDLZ-BV-1R
• Voltage Display Range: AC 80~500V
• Frequency Compatibility Range: 50~60Hz

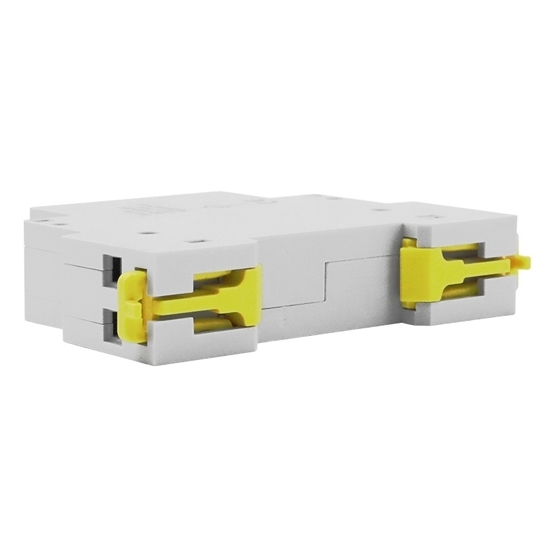

• Installation Method: DIN 35mm standard rail
• Digital Display Color: red
• Accuracy: ±2%V
• Display Resolution: 1V
• Sampling Rate: about 1 time/s
• Input Loop Power Consumption: <2VA

Note: This modular voltmeter is prohibited from being used in strong-frequency, variable-frequency, or high-frequency power supply environments. Suitable for sine wave 50~60Hz AC power frequency.

Dimension

Wiring Method

Tips: What is a modular voltmeter?

A modular voltmeter is a measuring device designed for voltage detection, commonly used in electronic and electrical applications. What sets it apart is its modular design, consisting of interchangeable and independent modules that can be customized based on specific measurement requirements. These modules may include input channels, signal conditioning components, and display units. The modular approach allows users to assemble a voltmeter tailored to their needs by selecting and combining the necessary modules. This flexibility enhances versatility, making the voltmeter suitable for various voltage measurement scenarios. Additionally, modular voltmeters often offer scalability, enabling users to expand or upgrade their measurement capabilities as needed. Overall, the modular voltmeter provides a versatile and adaptable solution for accurate voltage measurements in diverse settings.
