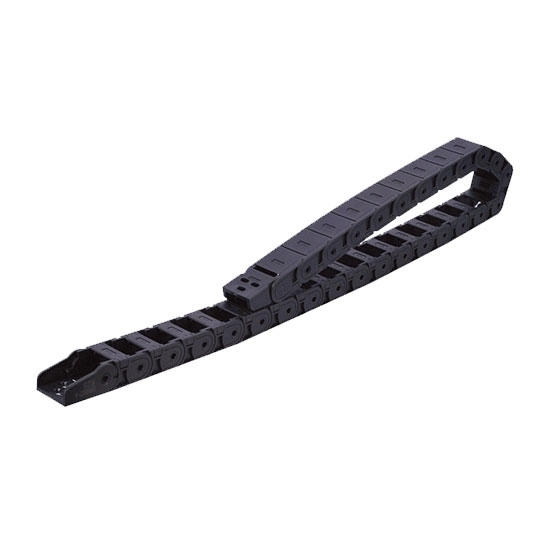

Cable Drag Chain, 18 X 50mm

Cable Drag Chain, 18 X 50mm
Cable Drag Chain, 18 X 50mm
0 reviews • Write a review
from
$55.69
Ex Tax: $55.69
  • Stock: In Stock
  • Model: RDDLZ-CDC-T18
  • Weight: 1.00
  • SKU: RDDLZ-CDC-T18

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Cable drag chain for sale, inner height 18mm, inner width 18mm, 25mm, 37mm and 50mm, cable carrier length can choose 1 meter to 10 meters, other lengths can be customized.

Note: cable drag chain length can be customized, please contact us.

Specification

ModelRDDLZ-CDC-T1818RDDLZ-CDC-T1825RDDLZ-CDC-T1837RDDLZ-CDC-T1850
Inner Height18mm18mm18mm18mm
Inner Width18mm25m37mm50mm
Outer Height23mm37mm23mm23mm
Outer Width29mm50mm47mm60mm
Bending Radius ®28mm, 38mm, 48mm, 55mm, 60mm, 75mm, 100mm
Open ModeSemi closed inner opening
Aperture (φ)5 x 7L5 x 8.5L5 x 9L5 x 9L
Connector Hole DistanceA=8mm, B=11.5mm, C=9mmA=12, B=7.5mm, C=11mmA=24.5mm, B=7.5mm, C=7.5mmA=37.5mm, B=8mm, C=7.5mm
Connector Ordering Model18.18.BF.12PZ.(figure1)18.25.BF.12PZ.(figure2)18.37.BF.12PZ.(figure2)18.50.BF.12PZ.(figure3)
Weight0.33kg0.35kg0.39kg0.44kg

Cable Drag Chain Installation Dimension (unit: mm)

Pitch= 20.7mm, excluding the number of joints per meter= 49, chain length= S/2 + K, S= stroke distance, K= π x R + safety amount.

R182838
H517191
D475767
K101131164



Tips: What is cable drag chain?

The cable drag chain is a special special cable with abrasion resistance, oil resistance and strong flexibility. It is suitable for occasions where the equipment unit needs to move back and forth. Put the cable in the cable drag chain to protect the cable from damage when it moves back with the drag chain. .

Drag chain cables are suitable for equipment connection lines and drag chain occasions where equipment is frequently moved repeatedly. It can effectively prevent cables from entanglement, abrasion, pull-off and disorganization. They are mainly used in industrial electronic systems, automatic generation lines, storage equipment, robots, fire protection systems, Cranes, CNC machine tools and metallurgical industries, etc.
