Cable Drag Chain, 30 X 50mm

0 reviews • Write a review

from

$74.68

Ex Tax: $74.68

Stock: In Stock
Model: RDDLZ-CDC-H30
Weight: 1.00
SKU: RDDLZ-CDC-H30

Available Options

Short Description

Model

Length

Bending Radius

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

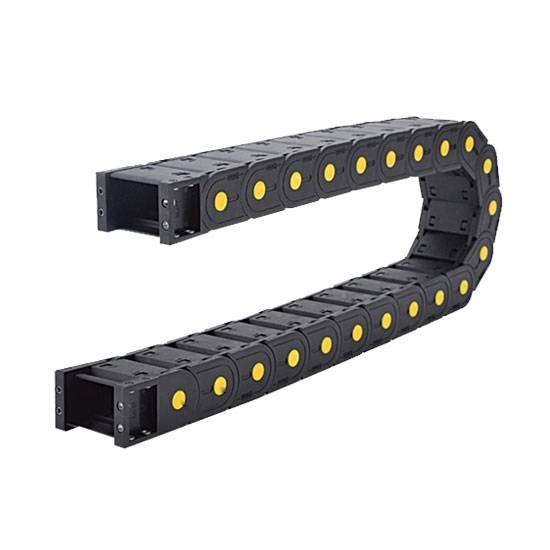

The drag chain has a very good protective effect on the cable, easy to install, high quality, can be used in outdoor environment. Cable drag chain inner size 1.18 x 1.96 inch, outer size 1.77 x 2.67 inch.

Note: cable drag chain length can be customized, please contact us.

Specification

Model	RDDLZ-CDC-H3025	RDDLZ-CDC-H3038	RDDLZ-CDC-H3050	RDDLZ-CDC-H3057	RDDLZ-CDC-H3060	RDDLZ-CDC-H3077	RDDLZ-CDC-H30103
Inner Height	30mm	30mm	30mm	30mm	30mm	30mm	30mm
Inner Width	25mm	38mm	50mm	57mm	60mm	77mm	103mm
Outer Height	45mm	45mm	45mm	45mm	45mm	45mm	45mm
Outer Width	43mm	56mm	68mm	75mm	78mm	95mm	121mm
Bending Radius (R)	55mm, 75mm, 100mm, 125mm, 150mm, 175mm
Open Mode	Bridge type	Bridge closed					Bridge type
Pitch Distance	46mm
Bridge Weight	1.06kg	1.12kg	1.17kg	1.2kg	1.21kg	1.26kg	1.46kg
Closed Weight	/	1.24kg	1.34kg	1.45kg	1.46kg	1.6kg	/

Cable Drag Chain Installation Dimension

Dimension	RDDLZ-CDC-H3025	RDDLZ-CDC-H3038	RDDLZ-CDC-H3050	RDDLZ-CDC-H3057	RDDLZ-CDC-H3060	RDDLZ-CDC-H3077	RDDLZ-CDC-H30103
A	16
B	16
C	38	51	63	70	73	90	116
D	46	59	71	78	81	98	125
E	9.5
Aperture (φ)	6

Pitch= 46.4mm, excluding the number of joints per meter= 22, chain length= S/2 + K, S= stroke distance, K= π x R + safety amount.

R	55	75	100	125	150	175
H	155	195	245	295	345	395
D	124	144	169	194	219	244
K	290	353	432	510	589	667

Tips: Type of cable drag chain
According to the drag chain material can be divided into steel drag chain, steel aluminum drag chain, plastic drag chain, stainless steel drag chain, nylon drag chain.
According to the form of cable drag chain can be divided into bridge towing chain, multi-linked bridge towing chain, closed towing chain, muffled towing chain, open towing chain, universal towing chain, tank chain, threading chain, etc..
