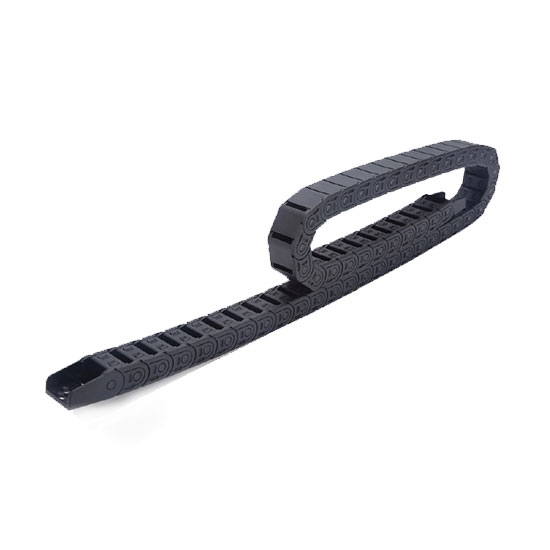

Cable Drag Chain, 15 X 30mm

0 reviews • Write a review

from

$54.68

Ex Tax: $54.68

Stock: In Stock
Model: RDDLZ-CDC-T15
Weight: 1.00
SKU: RDDLZ-CDC-T15

Available Options

Short Description

Model

Length

Bending Radius

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Plastic cable drag chain for CNC router mill, light weight, smooth operation and simple installation. Cable carrier length can be customized.

Note: cable drag chain length can be customized, please contact us.

Specification

Model	RDDLZ-CDC-T1515	RDDLZ-CDC-T1520	RDDLZ-CDC-T1530	RDDLZ-CDC-T1540	RDDLZ-CDC-T1550
Inner Height	15mm	15mm	15mm	15mm	15mm
Inner Width	15mm	20m	30mm	40mm	50mm
Outer Height	20mm	20mm	20mm	20mm	20mm
Outer Width	25mm	30mm	40mm	50mm	60mm
Bending Radius ®	28mm, 38mm, 48mm
Open Mode	Semi closed inner opening
Aperture (φ)	4 x 7Lmm
Connector Hole Distance	A=9.5mm,B=9.5mm, C=6.5mm	A=10mm, B=4mm, C=6.5mm	A=20mm, B=3.5mm, C=12mm	A=28mm, B=4.5mm, C=14mm	A=40mm, B=4mm, C=12mm
Connector Ordering Model	15.15.BF.12PZ.(figure1)	15.50.BF.12PZ.(figure2)	15.30.BF.12PZ.(figure3)	15.40.BF.12PZ.(figure3)	15.50.BF.12PZ.(figure3)
Weight	0.26kg	0.3kg	0.34kg	0.38kg	0.44kg

Cable Drag Chain Installation Dimension (unit: mm)

Pitch= 20.7mm, excluding the number of joints per meter= 49, chain length= S/2 + K, S= stroke distance, K= π x R + safety amount.

R	18	28	38
H	51	71	91
D	47	57	67
K	101	131	164

Tips: Oil-resistant cables Application

Oil-resistant cables are suitable for industrial and mining enterprises such as metallurgy, petroleum, chemical industry, and power plants. They are used as connecting wires for various electrical appliances, instruments and automatic devices under high temperature conditions and harsh environments (such as acid, alkali, and low temperature conditions of oil and water) for control, It is used for monitoring and protection circuit loading occasions. It is also suitable for damp or indoors, such as machine tools, woodworking grinders, etc.
