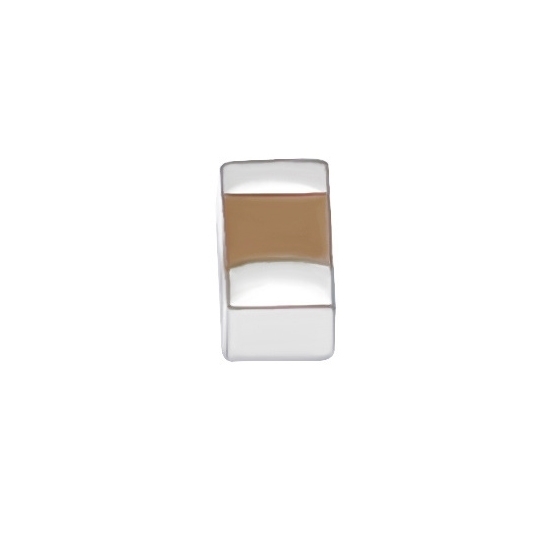

10μF 100V Multilayer Ceramic Chip Capacitor

0 reviews • Write a review

from

$23.49

Ex Tax: $23.49

Stock: In Stock
Model: RDDLZ-MLCC-100V106K
Weight: 1.00
SKU: RDDLZ-MLCC-100V106K

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Multilayer ceramic chip capacitor is stable and has high capacitance. Laminated monolithic structure, excellent solderability and solder resistance, MLCC capacitors are suitable for reflow and wave soldering, various filtering and coupling circuits.

Specification

Model: RDDLZ-100V106K1210
Series: Multilayer Ceramic Chip Capacitor
Capacitance: 10μF (10000000pF, 10000nF)
Rated voltage: 100V
Tolerance: 20%
Operating Temperature Range: -40℃ - 105℃
Lead Type: SMD
Size: 3.2mm
Thickness: 2.5mm

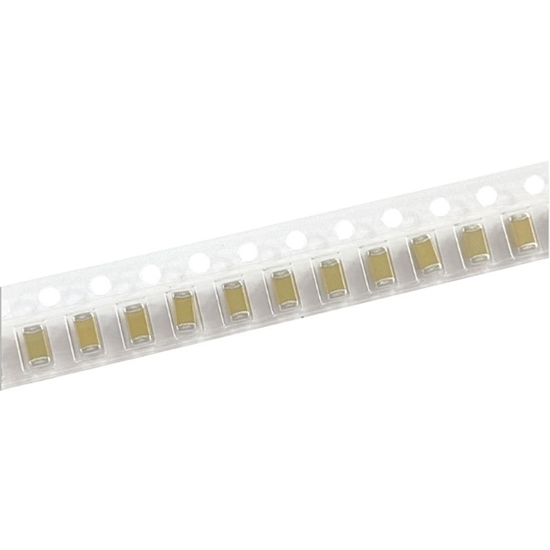

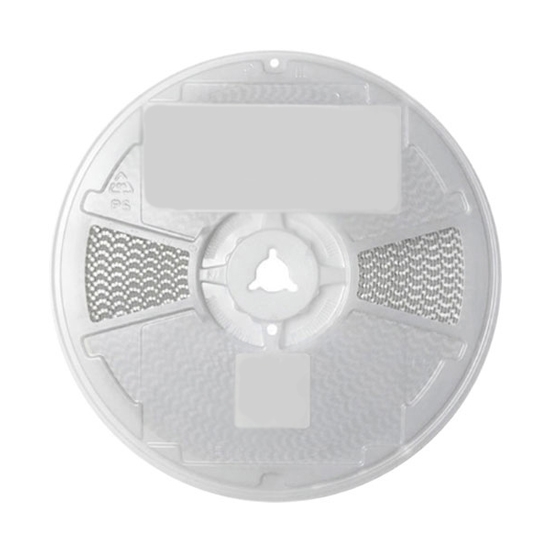

Package: 1000PCS / roll
Application: Household Appliances
Medium Material: Ceramic (Porcelain)
Loss: 0.01%
Weight: 0.3kg

Structure

Tips:

High voltage chip capacitors, also known as ceramic multilayer chip capacitors, are a kind of production technology using ceramic powder, the interior is precious metal palladium, and silver is plated on ceramics as electrodes by high-temperature sintering. The products are divided into high frequency porcelain NPO (COG) and low frequency porcelain X7R. NPO has a small package size, high temperature coefficient capacitors, and good high-frequency performance. It is used in high-stability oscillation circuits as circuit filter capacitors. X7R ceramic capacitors are limited to bypassing or blocking DC in circuits with ordinary frequencies, or where stability and loss are not required. Such capacitors should not be used in alternating current (AC) pulse circuits, because they are easy to be used by Pulse voltage breakdown, so it is not recommended for use in AC circuits.
