Digital Air Pressure Switch, M5

0 reviews • Write a review

from

$142.06

Ex Tax: $142.06

Stock: In Stock
Model: RDDLZ-DPS-10
Weight: 1.00
SKU: RDDLZ-DPS-10

Available Options

Short Description

Measuring Range

Switch Ouput

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

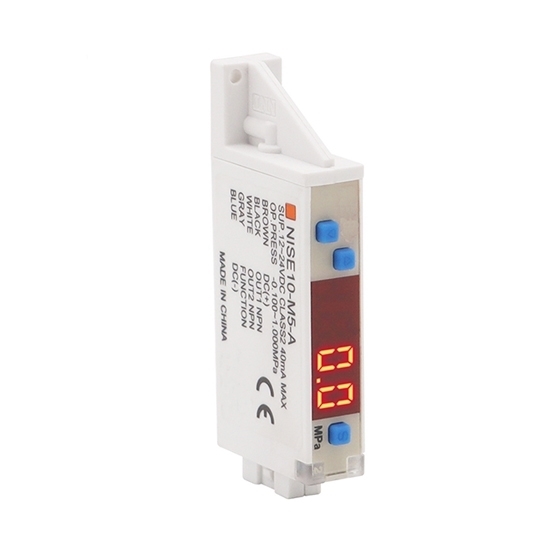

Digital air pressure switch which support two colors digital display, lower cost pressure switch with max. current 80mA, 2.5 ms fast response time.

Features

The air pressure is proportional to the electrical signal, enabling continuous control of the pressure.
Thin 9.8mm, realize integration, save space and light weight.
Digital display of pressure.

Specification

Model		RDDLZ-NZSE10	RDDLZ-NZSE10F	RDDLZ-NISE10
Rated pressure range		0.0~101.0kPa	-100.0~100.0kPa	-100.0~1.000MPa
Display/ Set pressure range		10.0~105.0kPa	-105.0~105.0kPa	-105.0~1.050MPa
Withstand pressure		500kPa	500kPa	1.5MPa
Display/ Minimum unit setting		0.1kPa	0.1kPa	0.001MPa
Switch output		NPN or PNP open collector 2 outputs
	Maximum load current	80mA
	Maximum applied voltage	28 V (With NPN output)
	Residual voltage	2 V or less (With load current of 80 mA)
	Response time	2.5 ms or less (Response time selections with anti-chattering function: 20, 100, 500, 1000, 2000 ms)
	Short circuit protection	Yes
Hysteresis	Hysteresis mode	Variable (0 or above)
	Window comparator mode
Analog output (Voltage output)	Output voltage (Rated pressure range)	1~5V±2.5%F.S.		1~5V±2.5%F.S.
	Linearity	±1%F.S.
	Output impedence	Approx. 1kΩ
Environment	Enclosure	IP40
	Operating temperature range	Operating: –5 to 50°C, Stored: –10 to 60°C (No freezing or condensation)
	Operating humidity range	Operating and stored: 35 to 85% RH (No condensation)
	Withstand voltage	AC1000V for 1 minute between terminals and housing
	Insulation resisitance	50MΩ or more (500 VDC measured via megohmmeter) between terminals and housing
	Vibration resistant	10~150Hz, the lesser of 1.5mm full amplitude or 20m/s², 2 hours in each direction of xyz (without power)
	Shock proof	100m/ s² 3 times in each direction of XYZ (without electricity)
Fluid		Air, Non-corrosive gas, Non-flammable gas
Takeover diameter		M5
Power supply voltage		12 to 24 VDC ±10%, Ripple (p-p) 10% or less (With power supply polarity protection)
Current consumption		40 mA or less
Repeat accurancy		±0.2% F.S.±1 digit
Display		3 1/2 digit, 7-segment indicator, 1-color display (Red)
Display accurancy		±2% F.S. ±1 digit (at 25°C ±3°C ambient temperature)
Indicator light		Lights up when output is turned ON. OUT1: Green; OUT2: Red
Lead wire with connector		±2% F.S. (at 25°C in an operating range of -5 to 50°C)
Temperature characteristics		Oilproof heavy-duty vinyl cable.5 cores, ∅3.5, 2 m, Conductor area: 0.15 mm2 (AWG26) Insulator O.D.: 1.0 mm
Standards		CE marking, RoHS, UL/ CSA

Internal Circuits and Wiring

Dimension (mm)

Piping specification

Model		M5	M5
Port size		M5*0.8 (Side port)	M5*0.8 (Rear ported)
Wetted part material	Sensor pressure receiving area	Sensor pressure receiving area: Silicon
	Piping port	C3604 (Electroless nickel plating) O-ring: HNBR
Weight	With lead wire with connector (5 cores, 2m)	55g
	Without lead wire with connector	15g

Tips: What is Digital Pressure Switch?

The digital pressure switch has a built-in precision pressure sensor, amplifies the pressure signal through a high-precision instrumentation amplifier, collects and processes data through a high-speed MCU, generally uses 4-digit LED real-time digital pressure display, relay signal output, and upper and lower limit control points can be freely set , small hysteresis, anti-vibration, fast response, stable and reliable, high precision (accuracy is generally ±0.5% F.S, high is ±0.2% F.S), the use of hysteresis setting can effectively protect the repeated action caused by pressure fluctuations, protection control The equipment is a high-precision equipment that detects pressure and liquid level signals and realizes pressure and liquid level monitoring and control.
