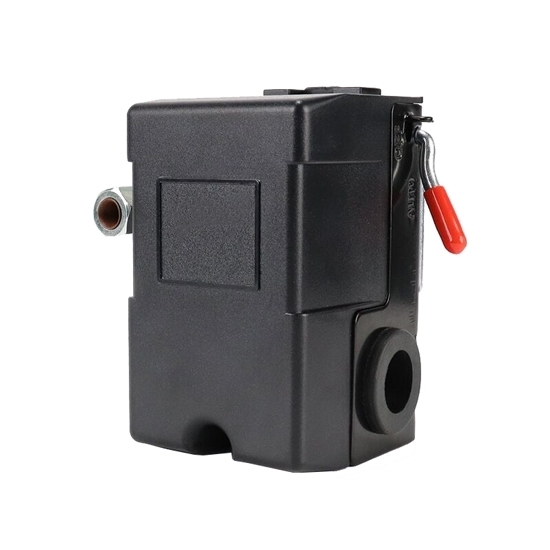

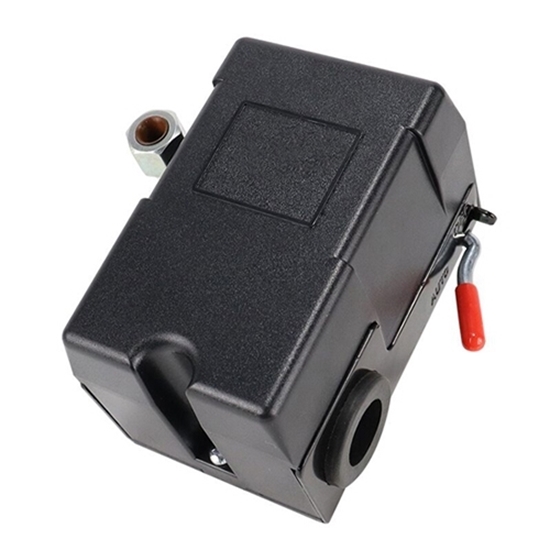

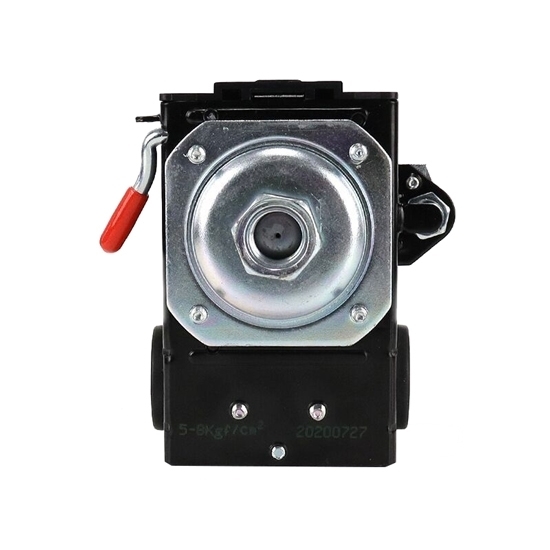

Adjustable air compressor pressure switch come with compact stainless steel case and 304 stainless steel diaphragm, work in -25℃~80℃. Single pass and four pass type can be selected. Pressure difference 0.1bar, rated voltage/current 20A/120VAC, 12A/240VAC. Widely apply in air compressor, water pump and screw machine.

 Specification

Dimension (MM)

Feature

1. Air compressor pressure switch equipped with compact shell made of hardware, engineering plastics, adopts aluminum oxidation process technology, easy installation, stable performance.

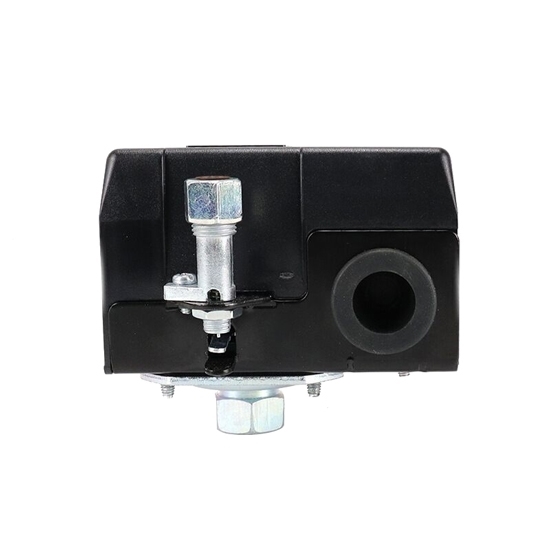

2. Compressor pressure switch come with relief valve to avoid overload, long service life.
3. Comes with a handle to manually cut off the compressor, detecting water, air.

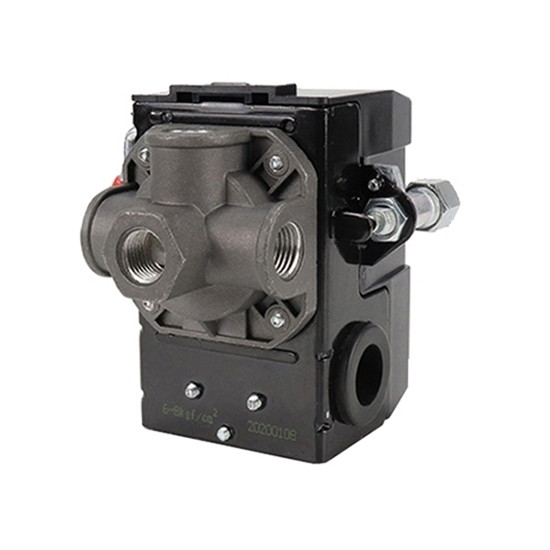

4. Pressure switch equipped with four-way base, can make the installation of exhaust valve and pressure gauge easier, flat and smooth, not easy to damage, and the performance is more convenient and controllable
5. A variety of air compressor pressure switch styles are available: single-way/four-way.
6. Special factory settings and differential pressure can be provided upon request. Other interfaces can be customized according to customer requirements.
7. Air compressor switch has electrical life 100,000 times, work in -25℃~80℃, rated voltage/current 20A/120VAC 12A/240VAC or 26A/120VAC,
   26A/240VAC.
8. LF10 series air pressure switch is used to adjust the pressure in the air compressor tank to make it operate between two preset pressure values (up to 200psi).

Details

Tips: How does air compressor pressure switch work?

1. The external mechanical force acts on the action reed through the transmission element (press pin, button, lever, roller, etc.), and after the energy is accumulated to the critical point, an instantaneous action is generated, so that the movable contact at the end of the action reed and the fixed contact Tap to quickly connect or disconnect.
2. When the force on the transmission element is removed, the action reed produces a reverse action force, and when the reverse stroke of the transmission element reaches the action critical point of the reed, the reverse action is completed instantaneously. The contact spacing of the micro switch is small, the action stroke is short, the pressing force is small, and the on-off is rapid.
3. The action speed of its moving contact has nothing to do with the action speed of the transmission element. The basic type of micro switch is push pin type, which can be derived from button short stroke type, button large stroke type, button large stroke type, roller button type, reed roller type, lever roller type, short arm type, long arm type etc.
