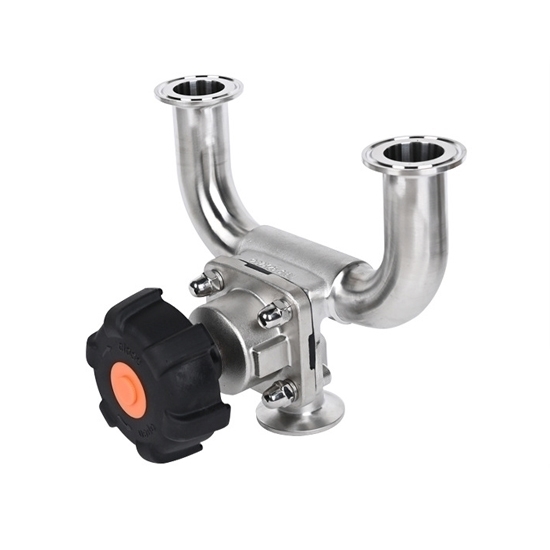

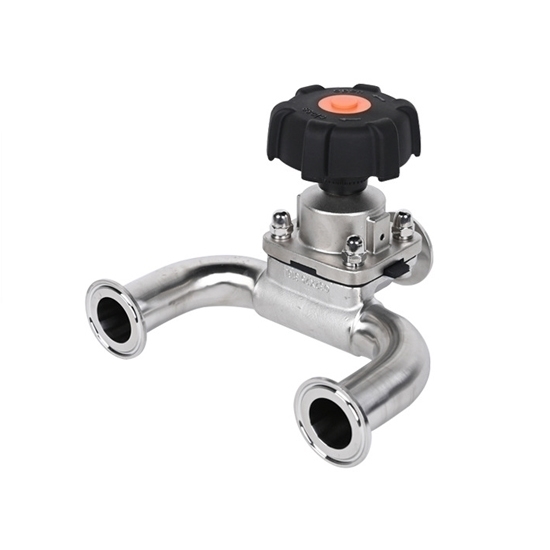

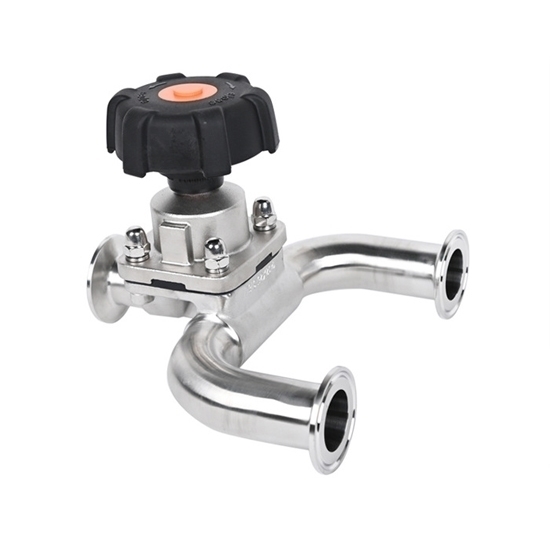

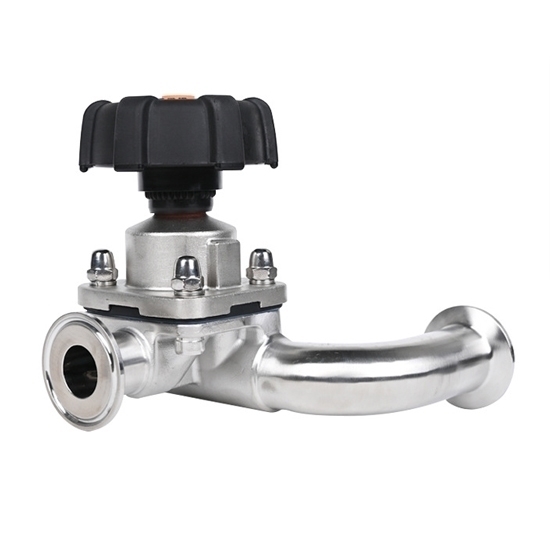

3 way stainless steel diaphragm valves provide precise control over liquids and gases, making them suitable for processes that require accurate modulation or diversion, commonly used in industrial applications.

Specification

• Model: RDDLZ-3WDV-DN50
• Size: 2 inch (DN50)
• Driving Mode: Manual, with Closing Limit Device
• Maximum Working Pressure: 10bar (Ethylene Propylene Rubber or Fluorinated Rubber Diaphragm), 6bar (Polytetrafluoroethylene Diaphragm)
• Maximum Operating Temperature: 150℃ (Depending on Usage Conditions)
• Diaphragm Material (Optional): Ethylene Propylene Rubber, Fluorinated Rubber, Polytetrafluoroethylene
• Valve Body Material: 316L Stainless Steel
• Interface Mode: Quick Installation (Tri Clamp Connection)

Dimension (Unit: mm)

Application

Tips: Can a 3 way diaphragm valve be automated?

Yes, a 3 way diaphragm valve can be automated to enhance control and efficiency in fluid handling processes. Automation is achieved by integrating an actuator with the valve, enabling remote operation and integration into automated systems. The actuator is responsible for mechanically or electrically manipulating the valve's diaphragm to control the flow of fluids through the three ports. Automated three way diaphragm valves offer advantages such as precise and consistent control, reduced human intervention, and compatibility with programmable logic controllers (PLCs) for seamless integration into complex industrial systems. This automation capability is particularly valuable in industries such as pharmaceuticals, biotechnology, and chemical processing, where accurate and reliable fluid control is essential for optimized processes and product quality.
