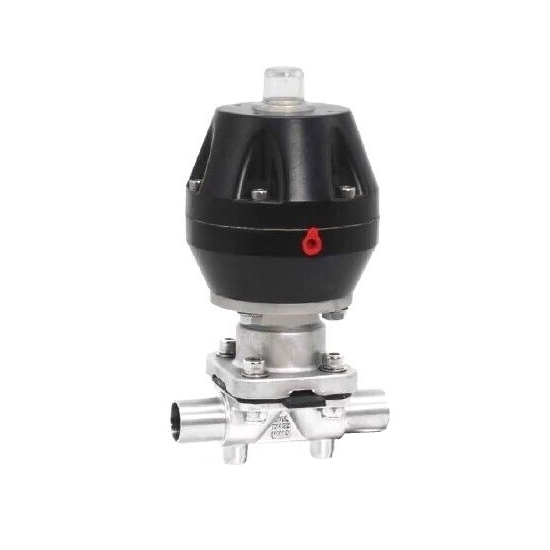

1 1/2" Pneumatic Diaphragm Valve, Sanitary

0 reviews • Write a review

from

$532.15

Ex Tax: $532.15

Stock: In Stock
Model: RDDLZ-PDV-40
Weight: 1.00
SKU: RDDLZ-PDV-40

Available Options

Short Description

Actuator Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This diaphragm valve cannot be used for drinking water.

Buy a cheap 1-1/2 inch (DN40) pneumatic diaphragm valve with an actuator from a diaphragm valve manufacturer. It is a sanitary diaphragm valve, ideal for cleaning or sterilizing processes.

Specifications

Model: RDDLZ-GMG661F/GMG6K61F/GMG6B61F-10RL
Size: DN40 (1 1/2 inch)
With Actuator: Yes
Actuator Type: Double Acting/Normally Open/Normally Closed
Function: Interception
Structure Type: Weir Type
Connection Form: Welding
Diaphragm Quantity: Double Diaphragm
Drive Mode: Pneumatic
Level: Sanitary Level
Type (Channel Position): Two-Way
Weight: About 11kg

Dimensions (Unit: mm)

DN	L	D	d	B	C
40	180	38.1	35	140	240

Applications

Pneumatic sanitary diaphragm valves are commonly used in applications that require precise control of fluid flow and hygienic conditions. These valves are frequently found in the pharmaceutical, food and beverage, and biotechnology industries.

Tips: What can a diaphragm valve do?

A diaphragm valve can regulate the flow of fluid or gas through a pipe or duct. When the valve is open, the fluid or gas can flow through the valve, and when the valve is closed, the flow is stopped. Diaphragm valves are commonly used in a variety of industries to control the flow of liquids and gases.

One of the main advantages of diaphragm valves is that they are versatile and can handle a wide range of fluids and gases, including corrosive and abrasive materials. They are also relatively easy to maintain and can be quickly disassembled for cleaning and repair.

Diaphragm valves are commonly used in industries such as water treatment, chemical processing, pharmaceuticals, food and beverage, and many others. They are preferred in applications where contamination must be avoided or where the fluid being processed is sensitive to contamination.

In addition to regulating the flow of fluids and gases, diaphragm valves can also be used to isolate and divert fluids, control pressure, and act as a backflow prevention device. They are available in a variety of materials and configurations to suit different applications, including sanitary diaphragm valves for use in hygienic applications.
