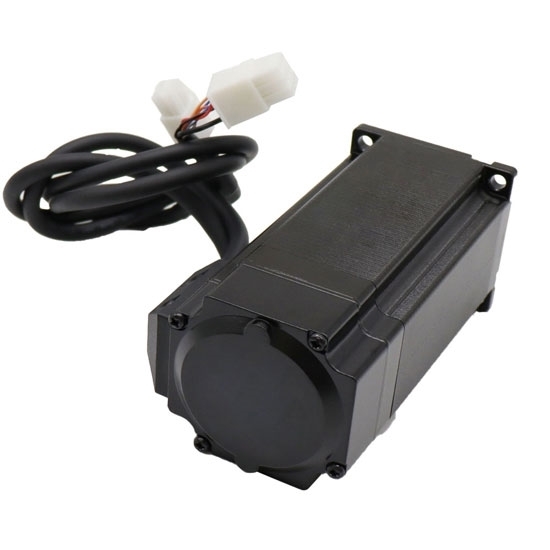

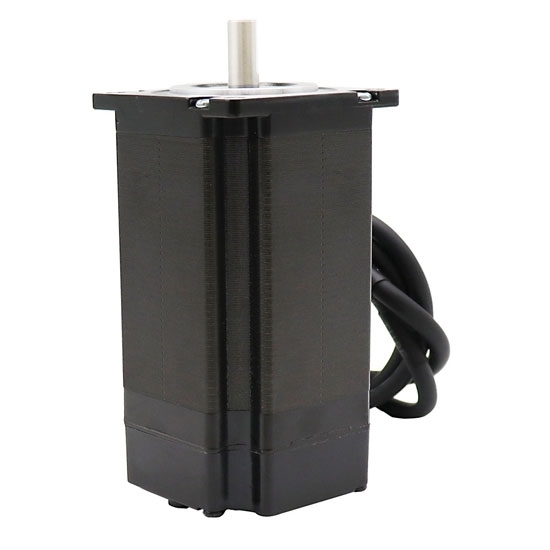

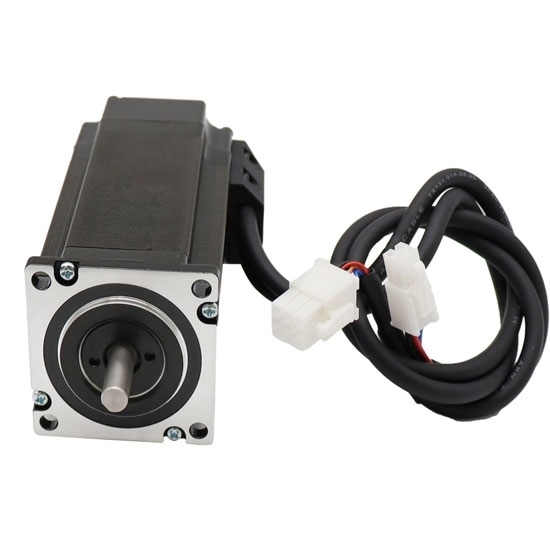

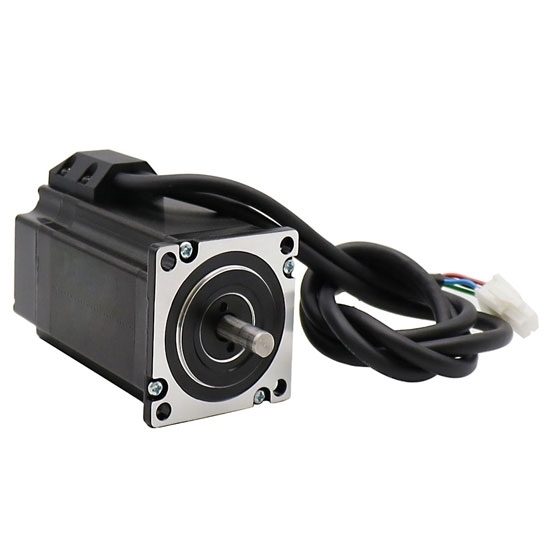

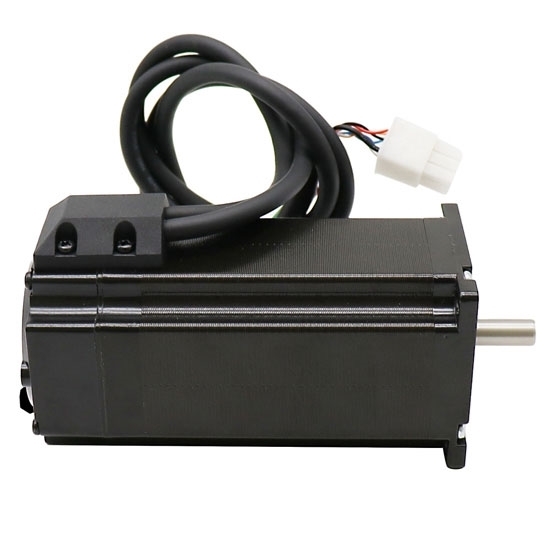

Nema 23 Closed Loop Stepper Motor, 2 Phase, 5.2A, 2.2N·m

0 reviews • Write a review

from

$135.36

Ex Tax: $135.36

Stock: In Stock
Model: RDDLZ-STEP-23C520
Weight: 1.00
SKU: RDDLZ-STEP-23C520

Available Options

Input Pulse Voltage

With Matched Driver

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Nema 23 closed loop stepper motor is a bipolar stepper motor used in CNC machine, drawing equipment and sewing machine, robot arm, etc. It is a four-wire connection motor with encoder, holding torque at 2.2N·m, step angle accuracy ±5%, no lost step and high precision.

Physical Specification

Model Number: RDDLZ-FY56EC520BC1
Matched the Driver Model: RDDLZ-FYDB506T
Flanged Size: 57 x 57mm (Nema 23)
Motor Length: 102mm
Shaft Diameter: 8mm
Number of Leads: 4 wire
Weight: 1.1kg

Electrical Specification

Motor Type: Bipolar Closed Loop Stepper
Step Angle: 1.8°
Rated Current: 5.2A
Holding Torque: 2.2 N·m (220N·cm, 311.5 Oz.in)
Phase Resistance: 0.42Ω
Phase Inductance: 1.9mH
Rotor Inertia: 520g·cm²

Dimensions (Unit: mm)

L=102mm

Motor & Encoder Wiring Diagram

Speed-Torque Curve Diagram

Details

Tips: Stepper motors must be equipped with motor drivers to work

The permanent magnet stepper motor cannot be directly connected to the frequency AC or DC power supply like DC motor and AC motor. It must be equipped with a dedicated stepper motor driver to work. Because the stepper motor is composed of pulse generation control unit, power drive unit, protection unit and so on, the conventional application cannot be realized in terms of structure and principle.
The drive unit of the stepper motor must be directly coupled with the stepper motor driver to ensure electromagnetic interference, so that the electronic circuit can be used to change the direct current into time-sharing supply, and the multiphase timing control current. That is, the stepper motor must have a driver to supply power.
