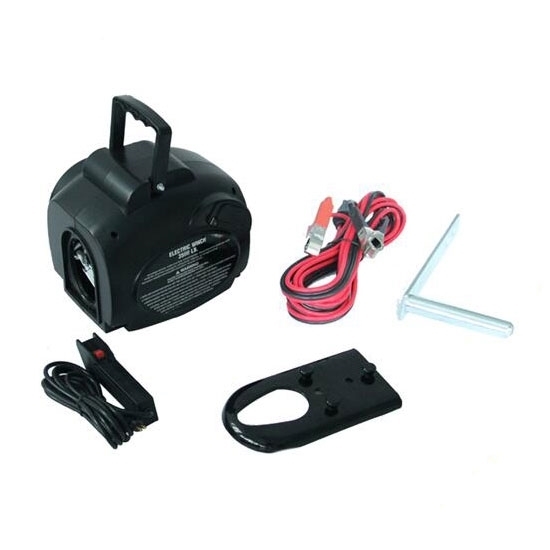

3500 Lbs 12V Electric Boat Trailer Winch

3500 Lbs 12V Electric Boat Trailer Winch
3500 Lbs 12V Electric Boat Trailer Winch
from
$487.99
Ex Tax: $487.99
  • Stock: In Stock
  • Model: RDDLZ-WINCH-B3500
  • Weight: 1.00
  • SKU: RDDLZ-WINCH-B3500

Available Options

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Portable electric trailer winch is designed to load your boats and vehicles onto trailers quickly and easily. Buy RDDLZ electric boat trailer winch kit helping you avoid those embarrassing moments at the ramp.

Feature

  • Electric boat winch is portable power trailer winch for pulling boats, stuck vehicles and other heavy items.
  • With powerful 3500 lbs pulling capacity.
  • 12V DC powered for convenient use without extension cords or small gas engines.
  • Built-in carrying handle and quick-attach mounting plate.

Specification

ModelRDDLZ-B3500LB
Single Line Rated Pull3500 lbs (1588kgs)
Voltage12V DC
Motor0.54hp (400W)
GearingGear Gearshift
Drum Speed1.2m/min
Drum Size (Dia x L)Ø25mm x 82mm
Wire RopeØ4.8mm x 9.2m
Remote Switch Cable Length3m (10 ft.)
Electric Cable Length3m (10 ft.)
Pulley BlockOptional
Overall Dimensions (L x W x H)266.5 x 256.5 x 216.5mm
Packing Size580 x 400 x 280mm
Protection GradeIP67
Gross Weight24kg
Net Weight22kg

Package Included

11 x 3500 lbs Electric Boat Winch
21 x Clevis hook
31 x Wired remote controller
41 x Universal mounting plate
51 x Winch cable
61 x Set of bolts
71 x User manual

Dimensions (Unit: mm)

Tips: How often to maintain electric boat trailer winch

The daily maintenance of electric boat winch should be carried out every time the sailboat returns to port, and the process is relatively simple. The outside of the electric boat trailer winch should be cleaned with fresh water and dried with a cloth. In addition, non-abrasive cleaning agents should be used occasionally to remove dirt residues on the surface. Avoid contacting the teak cleaner with the electric winch when cleaning the deck, because the former will corrode the winch and cause discoloration.

The electric boat winch should be maintained 2-3 times during the active sailing season. According to the frequency and intensity of the sailboat, the frequency of maintenance should be matched, but even if it is not used for a whole year, it should be carried out at least once. If it is used in a seawater environment, the frequency of maintenance required for the electric winch needs to be increased.
