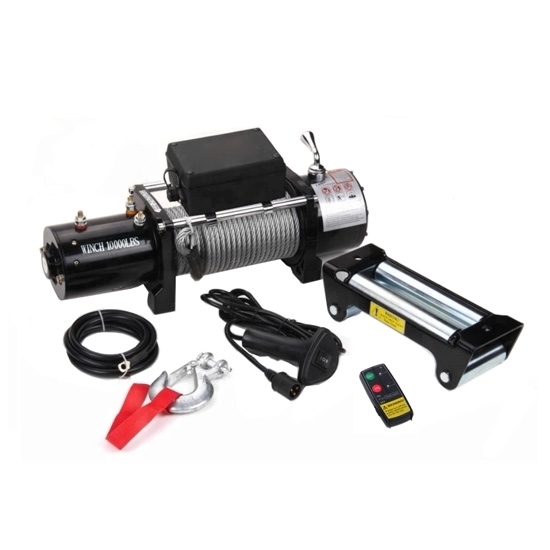

10000 Lbs 12V/24V ATV 4x4 Electric Winch

0 reviews • Write a review

from

$1,207.24

Ex Tax: $1,207.24

Stock: In Stock
Model: RDDLZ-WINCH-10000
Weight: 1.00
SKU: RDDLZ-WINCH-10000

Available Options

Short Description

Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

10000 lbs 12V/24V ATV 4x4 Electric Winch comes with the upgraded accessory kit, which includes a set of wired and wireless remote controller tools, control box, cable steel, hook, and roller fairlead to offer you an excellent working performance.

Features

High efficiency permanent magnet 4.6kW/6.2hp motor for power and fast line speed, DC 12V or DC 24V Power drive optional.
10000 lbs pull capacity electric winch for ATV/UTV with compact structure and cheap price.
Equipped with a gear reduction ratio of 265:1 and 3 stage planetary gear train to born with stronger pulling capacity.
Dual remote control mode, wired remote control and wireless remote control.
Free spooling with sliding ring gear, easy to operate.
Designed to keep dust and water out with an IP67 waterproof rating.
It is generally installed in the middle of the front car and connected with the car frame, exposed or hidden in the bumper.
100% testing on winch pulling capacity and function before shipping.

Specifications

Model	RDDLZ-10000LB
Single Line Rated Pull	10000 lbs (4536kgs)
Voltage	12V/24V DC (Optional)
Motor	Permanent magnet, 4.6kW/6.2hp
Gear Ratio	265:1
Gear Train	3 stage planetary
Control	Remote switch, 9.8ft (3m) lead (Supports wired remote control and wireless remote control)
Clutch	Sliding ring gear
Cable (Dia x L)	Ø9.1mm × 26m
Drum Size (Dia x L)	Ø2.5" (64mm) × 8.8" (233.5mm)
Fairlead	4-way roller fairlead
Braking Action	Automatic In-The-Drum
Overall Dimensions (L x W x H)	20.8" x 6.3" x 8.5" (529mm × 160mm × 217mm)
Mounting Bolt Pattern	255mm*114mm, Ø11
Protection Grade	IP67
Weight	40kg
Packing Size	610 x 350 x 270mm
Package Included	1 x 10000 lbs ATV winch 1 x Clevis hook 1 x Control box 1 x Wired remote controller 1 x Wireless remote controller 1 x 4-way roller fairlead 1 x Universal mounting plate 1 x Winch cable 1 x Set of bolts 1 x User manual

Parameters of Line Pull, Speed and Current at 12 Volt

Line Pull (lbs) / (kgs)	Line Speed (ft/min) / (m/min)	Current (A)
0	24.9 / (7.6)	80
2000 / (907)	16.1 / (4.9)	180
4000 / (1814)	10.8 / (3.3)	240
6000 / (2722)	8.5 / (2.6)	280
8000 / (3629)	7.2 / (2.2)	330
10000 / (4536)	5.9 / (1.8)	390

Line Pull and Rope Capacity in Layer

Layer	Rated Line Pull (lbs) / (kgs)	Total Rope on Drum (ft) / (m)
1	10000 / (4536)	13 / (5)
2	9010 / (4087)	23 / (11)
3	7377 / (3346)	69 / (21)
4	6245 / (2833)	92 / (28)

Tips: Characteristics of electric winch

The electric winch is powered by the car itself to drive the winch. This winch is convenient because you can stand anywhere and manipulate it with the knob on the remote control. Its biggest advantage is that it can be used as long as the battery has power.

1. The traction force of the electric winch is set in pounds, which can be converted into tons or kilograms through conversion. It's best to choose a high-pound winch, because the weight of the vehicle in trouble is often much higher than the daily weight of the vehicle. Do not tow objects that exceed the traction of the winch.

2. The more turns the steel cable of the electric winch is wound on the reel, the smaller the tension of the outer ring. The long winch can reduce the number of winding turns to increase the traction of the outer ring. For the same winch, the shorter wire rope has more traction on the outer ring than the longer wire rope.
