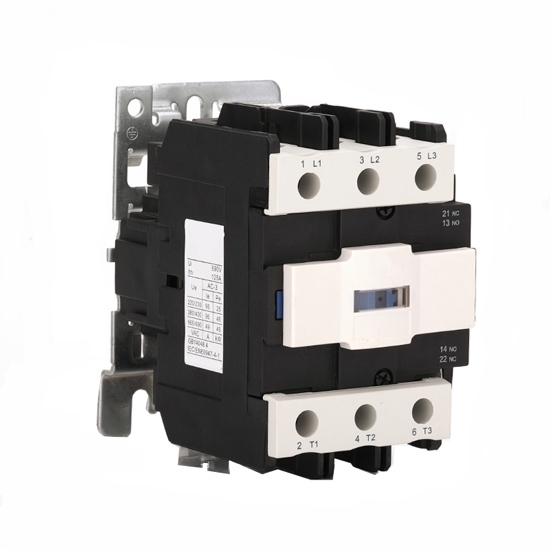

32 Amps 3 Pole AC Contactor 24V/110V/220V Coil

0 reviews • Write a review

from

$69.66

Ex Tax: $69.66

Stock: In Stock
Model: RDDLZ-ACCON-032
Weight: 1.00
SKU: RDDLZ-ACCON-032

Available Options

Short Description

Contact Form

Coil Rated Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

32 Amps AC Contactor Features

This is a brand new upgrade bypass contactor for long-distance connecting and breaking circuit. Rated current with 32 Amps, 3P+NO or 3P+NC, there are 24 volt coil, 110 volt coil, 220 volt coil for you to choose.

32 Amps AC Contactor Specifications

Model		RDDLZ-CJX2-32
Rated Operational Current (AC-3)	380V	32A
	660V	21A
Conventional Heating Current		50A
Rated Insulation Voltage		690V
Power of Controllable 3-phase Squirrel-cage Motor (AC-3)	220V	7.5kW
	380V	15kW
	660V	18.5kW
Operational Frequency (AC-3)	Electric Life	600 times/h
	Mechanical Life	3600 times/h
Service Life	Electric Life (10⁴ times)	80
	Mechanical Life (10⁴ times)	800
Matching Fusing Model		RT16-50
Average Power Consumption (20℃) @ 50Hz	Pick-up	110VA
	Holding	11VA
Contact Form (Optional)		3P+NO or 3P+NC
Rail Size		35mm
Ambient Temperature		-5℃~+40℃
Altittude		≤2000m
Class of Pollution		Class 3
Installation Category		Ⅲ
Weight		0.33kg

32 Amps AC Contactor Dimensions

Details

Tips: The main components of the AC contactor

Electromagnetic system, including attracting coil, moving iron core and static iron core.
The contact system comprises three main contacts and two normally open and two normally closed auxiliary contacts, which are connected with the moving iron cores.
Arc extinguishing device, the AC contactor with large capacity is generally equipped with arc extinguishing device to cut off the arc quickly and avoid burning the main contact.
Insulating housing and accessories, various springs, transmission mechanisms, short-circuit rings, binding posts, etc.
The contact of the AC contactor is made of silver-tungsten alloy and has good electrical conductivity and high temperature ablation resistance.
