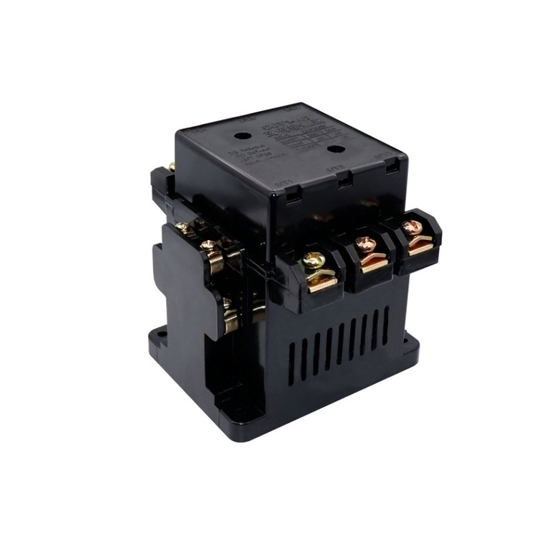

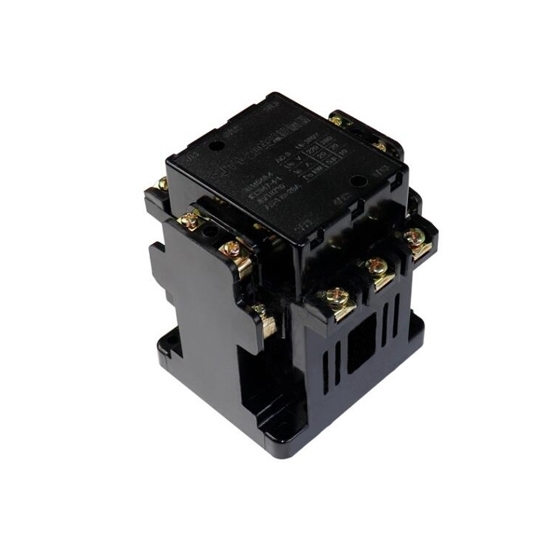

10A/20A/40A/60A/100A/150A 3 Pole AC Contactor, 24V/110V/220V/380V Coil

0 reviews • Write a review

from

$75.89

Ex Tax: $75.89

Stock: In Stock
Model: RDDLZ-ACCON-1040150A
Weight: 1.00
SKU: RDDLZ-ACCON-1040150A

Available Options

Short Description

Current

Coil Rated Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

RDDLZ 3 pole AC contactor is an electrically operated switch that controls high-voltage AC circuits, optional rated working current of 10 amp/20 amp/40 amp/60 amp/100 amp/150 amp, AC coil voltage of 24V/36V/110V/120V/220V/380V. This type of AC contactor is designed for motor control, lighting systems, and industrial machinery.

Specification

Model		RDDLZ-CJT1-10	RDDLZ-CJT1-20	RDDLZ-CJT1-40	RDDLZ-CJT1-60	RDDLZ-CJT1-100	RDDLZ-CJT1-150
Rated Insulation Voltage and Working Voltage		24V AC, 36V AC, 110V AC, 120V AC, 220V AC, 380V AC
Rated Working Current (AC-1~AC-4, 380V)		10A	20A	40A	60A	100A	150A
Control Power	220V	2.2kW	5.8kW	11kW	17kW	28kW	43kW
Control Power	380V	4kW	10kW	20kW	30kW	50kW	75kW
Number of Operation Cycles per Hour		AC-1, AC-3 is 600, AC-2, AC-4 is 300, RDDLZ-CJT1-150 AC-4 is 120
Electrical Life	AC-3	600,000 Times
Electrical Life	AC-4	20,000 Times			10,000 Times		6,000 Times
Mechanical Life		3 Million Times
Auxiliary Contact		2NO 2NC, AC-15 180VA; DC-13 60W Ith: 5A
Equipped Fuse		RDDLZ-RT16-20	RDDLZ-RT16-50	RDDLZ-RT16-80	RDDLZ-RT16-160	RDDLZ-RT16-250	RDDLZ-RT16-315
Coil Power Consumption	Starting Power	65VA	140VA	230VA	485VA	760VA	950VA
Coil Power Consumption	Holding Power	9VA	9.5VA	19VA	95VA	105VA	110VA

Dimension (Unit: mm)

Model	Maximum overall dimension (ABC)	Installation Dimension (D*E)	n-φ	F
RDDLZ-CJT1-10	717292	56*58	3-φ5	15
RDDLZ-CJT1-20	94104108	76*68	3-φ5	15
RDDLZ-CJT1-40	117130123	100*75	3-φ5.5	30
RDDLZ-CJT1-60	172180137	98*160	3-φ7	30
RDDLZ-CJT1-100	197206137	110*180	3-φ9	75
RDDLZ-CJT1-150	224234156	130*205	3-φ11	75

Wiring

Tips: How does a 3 pole AC contactor work?

A 3-pole AC contactor is an electromechanical switch used to control high-power circuits with low-power control signals. It has three main power contacts corresponding to three phases (L1, L2, L3) of an AC power supply. Here's how it works:

Control Signal Activation: When a control voltage is applied to the contactor's coil, it generates a magnetic field.
Magnetic Action: The magnetic field pulls a movable core or armature, closing the three main contacts.
Power Flow: As the contacts close, they allow current to flow through the connected load (e.g., motor, heater) across all three phases.
Deactivation: When the control signal is removed, the coil de-energizes, and a spring pushes the armature back, opening the contacts and stopping the power flow.

3-pole contactors are common in industrial applications for controlling motors, heaters, and other 3-phase loads.
