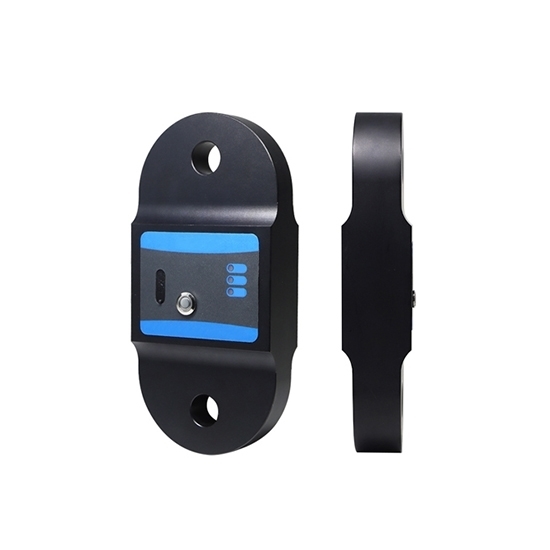

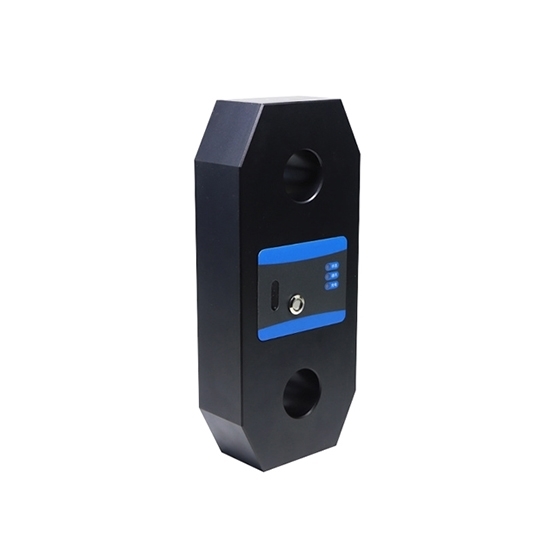

Digital Wireless Crane Scale, Heavy Duty, 25 ton/ 100 ton/ 200 ton

0 reviews • Write a review

from

$1,393.78

Ex Tax: $1,393.78

Stock: In Stock
Model: RDDLZ-CRS-002
Weight: 1.00
SKU: RDDLZ-CRS-002

Available Options

Capacity

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Professional digital wireless weighing scales for heavy machinery and large lifting operations, offering a wide range of load-bearing options up to 25/35/50/70/100/200 tons, with precise measurements. Built-in wireless receiver for real-time monitoring of the lifting process, with high stability and low errors, especially suitable for lifting large weights of equipment.

Specification

Model	RDDLZ-DST-BH-25T	RDDLZ-DST-BH-35T	RDDLZ-DST-BH-50T	RDDLZ-DST-BH-70T	RDDLZ-DST-BH-100T	RDDLZ-DST-BH-200T
Capacity	25000kg (25 ton)	35000kg (35 ton)	50000kg (50 ton)	70000kg (70 ton)	100000kg (100 ton)	200000kg (200 ton)
Output Sensitivity	2.0 ± 0.05mV/V
Zero Output	±1% F.S.
Non-linearity	0.3% F.S.
Hysteresis	0.3% F.S.
Repeatability	0.1% F.S.
Creep	0.1% F.S. (30 minutes)
Temperature Sensitivity Drift	0.05% F.S./10°C
Zero Temperature Drift	0.05% F.S./10°C
Response Frequency	10kHz
Material	Alloy steel
Impedance	350Ω
Insulation Resistance	≥5000MΩ/100VDC
Operating Voltage	5-15V
Operating Temperature Range	-20°C~60°C
Safety Overload	1.5
Limit overload	3
Wireless Transmission Distance	200m (No Shade)
Endurance	6 hours
Handheld Wireless Receiver Parameters
Display indexing	-99999~999999
Wireless Communication Linear Distance	>100m
Battery Charge and Discharge	Can be performed about 1000 times
Temperature Drift	Less than 20ppm
Working	12 hours of continuous operation on a full charge
Battery Capacity	3200mAh
Environment	-20°C to 50°C
Meter Weight	Approx. 290g
Protection Class	IP65

Dimensional Drawing (unit: mm)

Model	Rated Load	Dimension							Material	Net Weight
Model	Rated Load	øE	A	B	C	G	D	F	Material	Net Weight
RDDLZ-DST-BH-25T	25T	53	340	60	125	215	40	20	Alloy steel	15KG
RDDLZ-DST-BH-35T	35T	60	370	70	140	225	40	20	Alloy steel	22KG
RDDLZ-DST-BH-50T	50T	73	400	75	160	230	40	20	Alloy steel	30KG
RDDLZ-DST-BH-70T	70T	73	440	80	180	260	60	40	Alloy steel	39KG
RDDLZ-DST-BH-100T	100T	99	540	100	220	320	60	40	Alloy steel	74KG
RDDLZ-DST-BH-200T	200T	125	650	140	300	350	80	60	Alloy steel	173KG

Handheld Wireless Receiver Dimensional Drawing (unit: mm)

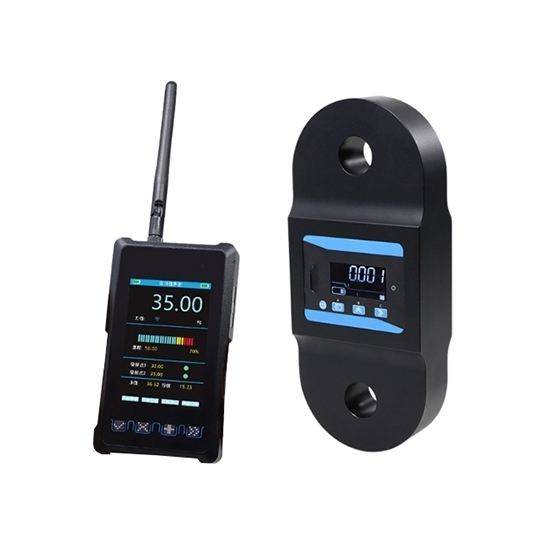

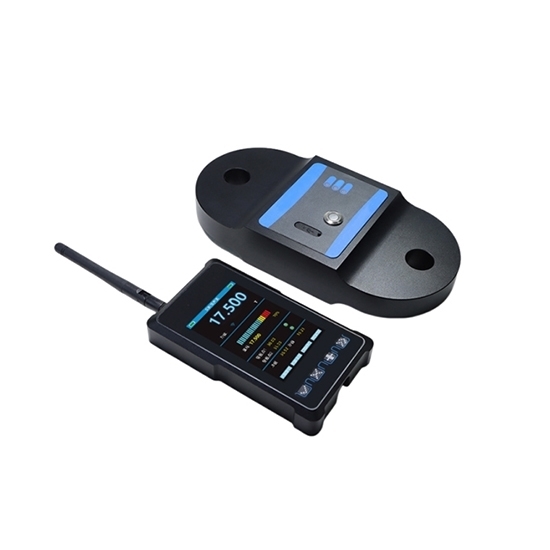

Handheld Wireless Receiver

Tips: Are wireless crane scales suitable for outdoor environments?

Most digital wireless crane scales are designed to be waterproof and dustproof and can be used in outdoor environments. For example, crane scales with IP65 or higher protection can withstand rain, dust and other harsh weather conditions. However, in extreme weather conditions (e.g. strong winds, extreme temperatures or heavy rain), appropriate protection is still recommended. When in use, it is also necessary to ensure that the wireless signal is not interfered with to ensure stable data transmission.
