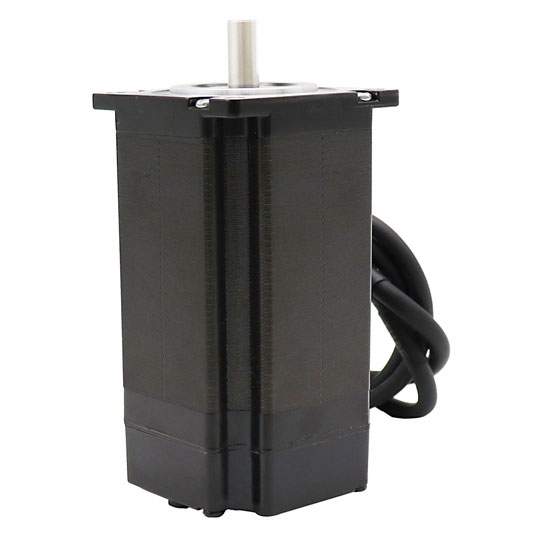

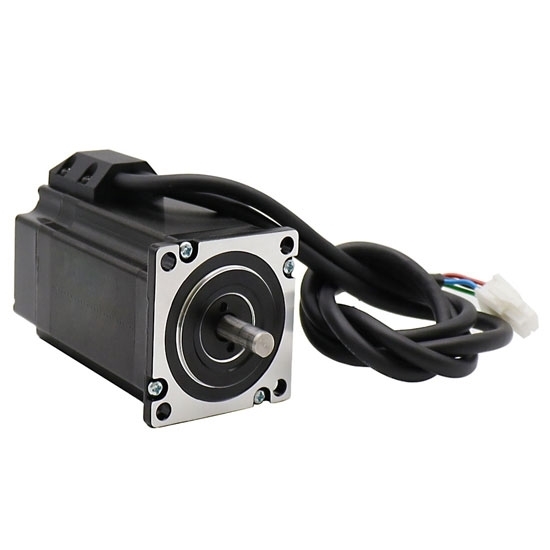

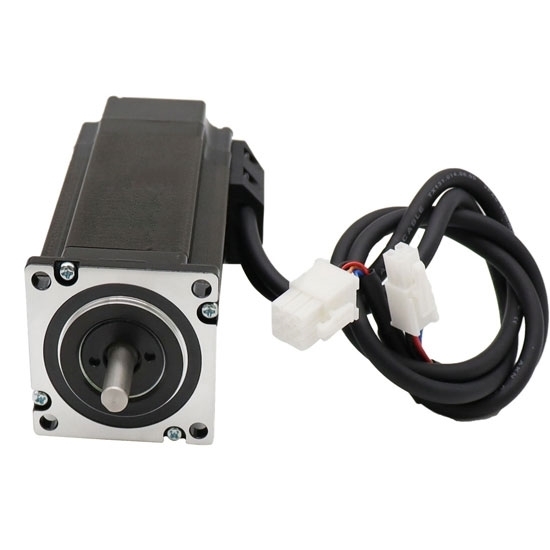

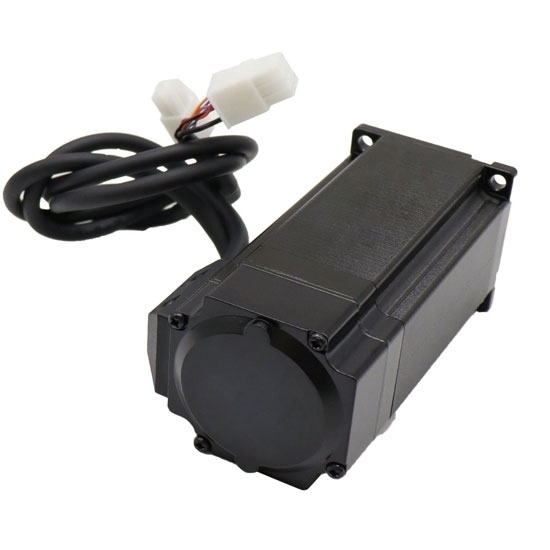

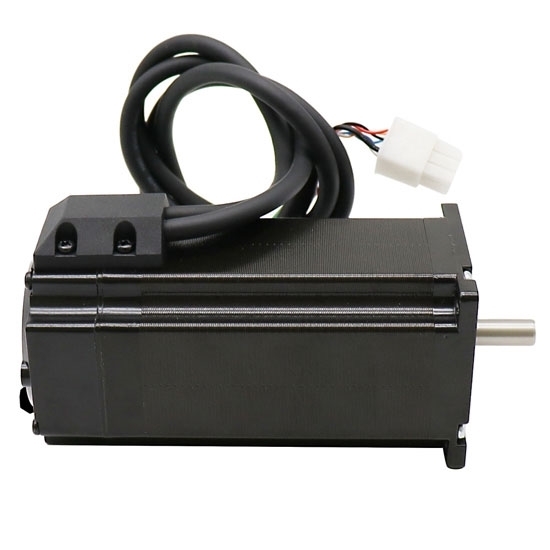

Nema 23 Closed Loop Stepper Motor, 2 Phase, 4.2A, 1.2N·m

0 reviews • Write a review

from

$116.56

Ex Tax: $116.56

Stock: In Stock
Model: RDDLZ-STEP-23M420
Weight: 1.00
SKU: RDDLZ-STEP-23M420

Available Options

Input Pulse Voltage

With Matched Driver

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low cost bipolar closed loop stepper motor for sale, two phase, wire colors of blue, red, green and black, no lost step, low noise, high torque and high efficiency.

Physical Specification

Model Number: RDDLZ-FY56EM420BC1
Matched the Driver Model: RDDLZ-FYDB506T
Flanged Size: 57 x 57mm (Nema 23)
Motor Length: 76mm
Shaft Diameter: 8mm
Number of Leads: 4 wire
Weight: 1kg

Electrical Specification

Motor Type: Bipolar Closed Loop Stepper
Step Angle: 1.8°
Rated Current: 4.2A
Holding Torque: 1.2 N·m (120 N·cm, 170 Oz.in)
Phase Resistance: 0.44Ω
Phase Inductance: 1.4mH
Rotor Inertia: 280g·cm²

Dimensions (Unit: mm)

L=76mm

Motor & Encoder Wiring Diagram

Speed-Torque Curve Diagram

Details

Tips: Precautions for cleaning stepper motors

If the permanent magnet stepper motor adheres to a lot of dust, it may cause it to run inefficiently. Therefore, it is necessary to clean the stepper motor. The following are the issues that need to be paid attention to when cleaning the stepper motor.

The cleaning must be carried out with the power supply cut off. Wrong cleaning will cause safety hazards to the best stepper motor, threatening the safety of the motor. Therefore, the power supply of the motor must be cut off before the cleaning can be performed.
The stepper motor needs to be protected during cleaning. The purpose of cleaning the stepper motor is to restore its working state, but if there is a wrong operation during the cleaning, it will cause the motor to be damaged.
