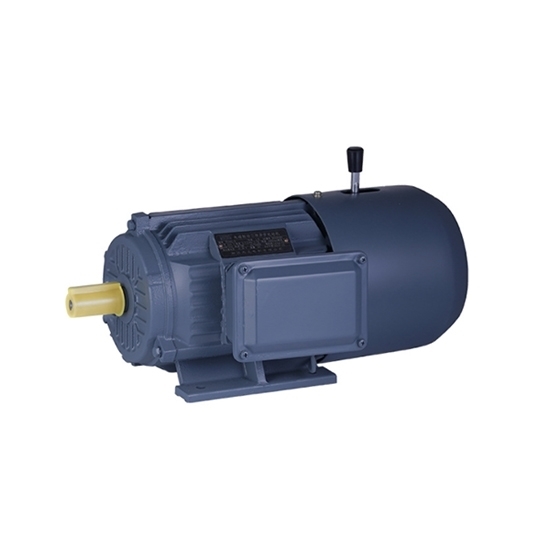

1 Hp (0.75kW) Brake Motor, 3 Phase, 2/4 Pole

0 reviews • Write a review

from

$460.99

Ex Tax: $460.99

Stock: In Stock
Model: RDDLZ-BM-80
Weight: 1.00
SKU: RDDLZ-BM-80

Available Options

Short Description

Number of Poles

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Factory price 1 hp brake motor with power factor 0.84 cosφ/ 0.76 cosφ, 7.5Nm static braking torque. Magnetic brake motor has the characteristics of small size, light weight, stable and reliable operation, large braking torque, fast braking speed, accurate positioning and convenient maintenance.

Specification

Model	RDDLZ-80M1-2	RDDLZ-80M2-4
Rated power	1hp (0.75kW)
Rated voltage	380V (380V~480V can be customized)
Numbers of poles	2 pole	4 pole
Rated torque	2.5N.m	5.2N.m
Speed	2845r/ min	1390r/ min
Current	1.83A	2.05A
Efficiency	75%	73%
Power factor	0.84 cosφ	0.76 cosφ
Locked-rotor current/ rated current	6.5 Ist/ In	6 Ist/ In
Locked-rotor torque/ rated torque	2.2 Tst/ Tn	2.3 Tst/ Tn
Weight	21kg	25kg
Static braking torque	7.5Nm
No-load brake lag time	0.2s
Energizing power	30W
Maximum torque/ rated torque	2.3 Tmax/ Tn
Certificate	CE
Warranty	12 months

Dimension

Frame size	Mounting dimensions (mm)									Overall dimensions (mm)
Frame size	A	B	C	D	E	F	G	H	K	AB	AC	AD	HD	L
80S	125	100	50	19	40	6	15.5	80	10	165	175	150	175	390

Details

Tips: What is Brake Motor?

The electromagnetic brake motor uses electromagnetic attraction to work. It needs to be connected to the power source before it starts to work. But there are restrictions on working conditions, that is, the altitude does not exceed 1000 meters, the temperature is -15~40°C, and the startup does not exceed 6 times per minute. The electromagnetic brake motor uses a high-quality aluminum alloy shell, which has the advantages of small and light weight, stable operation, accurate positioning, high work efficiency, and convenient maintenance.
