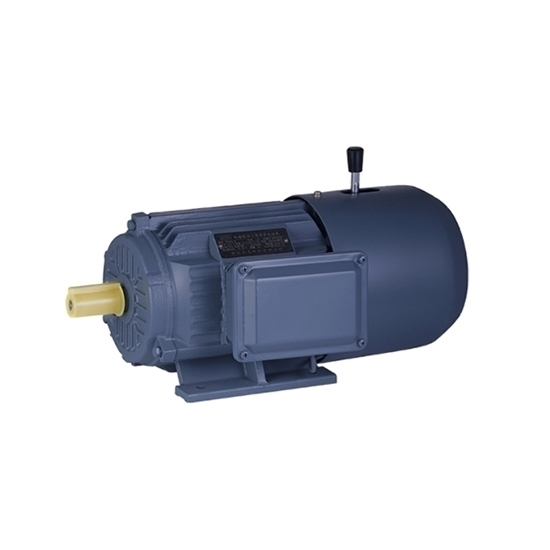

15 Hp (11kW) Brake Motor, 3 Phase, 2/4 Pole

0 reviews • Write a review

from

$2,800.69

Ex Tax: $2,800.69

Stock: In Stock
Model: RDDLZ-BM-160M
Weight: 1.00
SKU: RDDLZ-BM-160M

Available Options

Short Description

Number of Poles

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Magnetic brake motor with energizing power 150 watt, static braking torque 150Nm and 2.3 Tmax/ Tn maximum torque/ rated torque.

Specification

Model	RDDLZ-BM-160M1	RDDLZ-BM-160M
Rated power	15hp (11kW)
Rated voltage	380V (380V~480V can be customized)
Numbers of poles	2 pole	4 pole
Rated torque	36.0 N.m	72.4 N.m
Speed	2930r/ min	1440r/ min
Current	21.5A	22.5A
Efficiency	88%	88%
Power factor	0.88 cosφ	0.84cosφ
Locked-rotor torque Rated torque	2 Tst/ Tn	2.2 Tst/ Tn
Weight	145kg	147kg
Static braking torque	150Nm
No-load brake lag time	0.35s
Energizing power	150W
Locked-rotor current Rated current	7 Ist/ In
Maximum torque Rated torque	2.3 Tmax/ Tn
Certificate	CE
Warranty	12 months

Dimension

Frame size	Mounting dimensions (mm)									Overall dimensions (mm)
Frame size	A	B	C	D	E	F	G	H	K	AB	AC	AD	HD	L
160M	254	210	108	42	110	12	37	160	15	330	335	260	385	720

Details

Tips: The Application of Brake Motor.

The three-phase asynchronous brake motor is composed of two parts: a motor and an additional disc type DC electromagnetic brake. The motor is suitable for main shaft transmission and auxiliary transmission in various machinery with rapid stop, accurate positioning, reciprocating operation, frequent starting, and prevention of sliding, such as elevators, food machinery, printing machinery, construction machinery, woodworking machinery, deceleration machinery, Dragging of metallurgical machinery, forging machinery, etc. Brake motors are not only used for single machines, but also widely used in various automatic lines.
