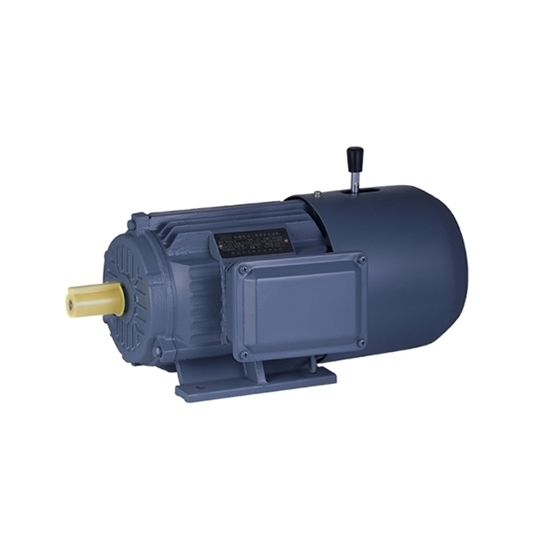

2 Hp (1.5kW) Brake Motor, 3 Phase, 2/4 Pole

0 reviews • Write a review

from

$624.38

Ex Tax: $624.38

Stock: In Stock
Model: RDDLZ-BM-90
Weight: 1.00
SKU: RDDLZ-BM-90

Available Options

Short Description

Number of Poles

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

3 phase brake motor with 0.2s no-load brake lag time, 15Nm static braking torque, 50W energizing power and 78% high efficiency.

Specification

Model	RDDLZ-BM-90S	RDDLZ-BM-90L
Rated power	2hp (1.5kW)
Rated voltage	380V (380V~480V can be customized)
Numbers of poles	2 pole	4 pole
Rated torque	5.0N.m	10.3N.m
Speed	2840r/ min	1390r/ min
Current	3.42A	3.67A
Power factor	0.85 cosφ	0.79cosφ
Locked-rotor current/ rated current	7 Ist/ In	6.5 Ist/ In
Locked-rotor torque/ rated torque	2.2 Tst/ Tn	2.3 Tst/ Tn
Weight	33kg	46kg
Efficiency	78%
Static braking torque	15Nm
No-load brake lag time	0.2s
Energizing power	50W
Certificate	CE
Warranty	12 months

Dimension

Frame size	Mounting dimensions (mm)									Overall dimensions (mm)
Frame size	A	B	C	D	E	F	G	H	K	AB	AC	AD	HD	L
90S	140	100	56	24	50	8	20	90	10	180	195	160	195	420
90L	140	125	56	24	50	8	20	90	10	180	195	160	195	445

Details

Tips: The Working Principle of Brake Motor.

There is an electromagnetic brake at the end of the brake motor, which will also be closed when the motor is energized. At this time, the motor will not be braked, and it will also be closed when the motor is powered off, and will brake the motor under the action of the spring. The two wires are used to rectify the two AC input ends of the full bridge, and input 380V AC synchronously with the two free inlet ends of the motor, and the direct output ends are connected to the brake excitation coil. The working principle is that when the motor is energized, the coil gets a direct current to generate suction, which separates the two friction surfaces at the tail, and the motor rotates freely. On the contrary, the spring restoring force allows the motor to brake.
