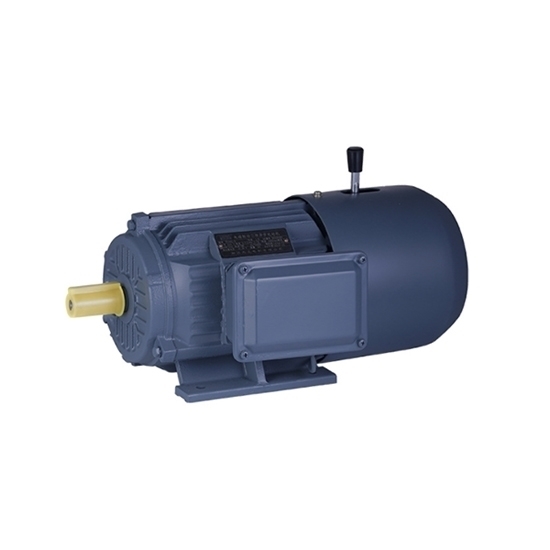

3 Hp (2.2kW) Brake Motor, 3 Phase, 2/4 Pole

0 reviews • Write a review

from

$752.92

Ex Tax: $752.92

Stock: In Stock
Model: RDDLZ-BM-100
Weight: 1.00
SKU: RDDLZ-BM-100

Available Options

Short Description

Number of Poles

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Electric brake motor with cheap price, magnetic brake motor features 50W/ 60W energizing power, 0.2s no-load brake lag time and CE certification.

Specification

Model	RDDLZ-BM-90L	RDDLZ-BM-100L1
Rated power	3hp (2.2kW)
Rated voltage	380V (380V~480V can be customized)
Numbers of poles	2 pole	4 pole
Rated torque	7.4N.m	14.9N.m
Speed	2840r/ min	1390r/ min
Current	4.8A	5.03A
Energizing power	50W	65W
Power factor	0.86 cosφ	0.82cosφ
Static braking torque	15Nm	30Nm
Weight	42kg	59kg
No-load brake lag time	0.2s
Efficiency	81%
Locked-rotor current/ rated current	7 Ist/ In
Locked-rotor torque/ rated torque	2.2 Tst/ Tn
Maximum torque/ rated torque	2.3 Tmax/ Tn
Certificate	CE
Warranty	12 months

Dimension

Frame size	Mounting dimensions (mm)									Overall dimensions (mm)
Frame size	A	B	C	D	E	F	G	H	K	AB	AC	AD	HD	L
90L	140	125	56	24	50	8	20	90	10	180	195	160	195	445
100L	160	140	63	28	60	8	24	100	12	205	215	180	245	480

Details

Tips: The Brake Maintenance of Brake Motor.

● After the brake has been used for a period of time, due to the wear of the friction parts, it is necessary to readjust the clearance value by adjusting the screw, nut, adjustment sleeve, etc. to make it meet the specified value.

● The friction surface should always be kept clean and free of impurities.
The electromagnetic brake motor is mainly composed of two parts: a motor and an additional DC electromagnetic brake. The motor brake is equipped with a manual release device, which is used to complete the installation and debugging of the hanging basket and release the power outage. The motor adopts high-quality aluminum alloy shell, which has the characteristics of small size, light weight, stable and reliable operation, large braking torque, fast braking speed, accurate positioning, and convenient maintenance.
