Nema 23 Stepper Motor Linear Actuator, 2 Phase, 2A, 1Nm

0 reviews • Write a review

from

$144.54

Ex Tax: $144.54

Stock: In Stock
Model: RDDLZ-STEPL-21
Weight: 1.00
SKU: RDDLZ-STEPL-21

Available Options

Short Description

Motor Type

Motor Screw Lead

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

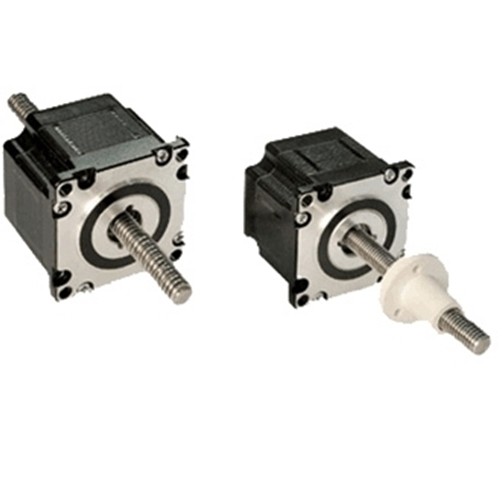

The high performance Nema 23 stepper linear actuator has external linear and non-captive style for you to select. It not only reduce cost but also reduce failure rate due to the less number of components and more simple construction.

Stepper Motor Linear Actuator Specification

Model Type	External Shaft	Non-Captive Shaft
	57H255-2004AST	57H255-2004GTS
Weight	4 kg
Motor Length	55 mm
Phase	2 phase
Step Angle	1.8°
Rated Current	2 A
Resistance	1.6 Ω
Holding Torque	1 Nm
Rotor Inertia	200 g-cm²

Select Leadscrew
Choose your stepper motor linear actuator screw from one of the available options:

Screw Diameter		Lead		Travel Per 1.8 Step
(in)	(mm)	(in/rev)	(mm/rev)	(in/step)	(mm/step)
0.315	8	0.079	2	0.00039	0.01
0.315	8	0.157	4	0.00079	0.02
0.315	8	0.315	8	0.00157	0.04
0.394	10	0.079	2	0.00039	0.01
0.394	10	0.157	4	0.00079	0.02
0.394	10	0.394	10	0.00197	0.05
Note: Screw of 8mm diameter is made of copper, and the screw of 10mm diameter is made of plastic.

Stepper Motor Linear Actuator Dimension (Unit=mm)

1. Non-captive shaft style

L=55mm

2. External shaft style

L=55mm

Details

Tips: How to select the protection form for stepper motor linear actuator
It is necessary to select the appropriate protection form for stepper motor linear actuator according to different environment, in order to prevent the damage to the stepper motor linear actuator caused by the surrounding environment and substances or the disaster caused by the stepper motor failure. The protection forms of the stepper motor are open type, protective type, explosion proof type and closed type. We should follow the following principles in selection.

The open type stepper motor can only be used in dry and clean environment.
The protective stepper motor linear actuator is suitable for dry environment with no dust, explosive and corrosive gas. This kind of stepper motor linear actuator can be selected in such circumstance because they are well-ventilated.
The explosion proof type stepper motor linear actuator can be applied in the environment of explosion danger (such as in the pit of gassy mine).
The closed type stepper motor linear actuator can be divided into self-cooled type, non self-cooled type and sealed type. The former two type can be used in wet environment with corrosive dust and weathering. The latter is applied in the equipment dipped in water (such as submerged pump).
