AC Current Sensor, 5A/10A/20A/50A/100A/150A To 400A

0 reviews • Write a review

from

$69.26

Ex Tax: $69.26

Stock: In Stock
Model: RDDLZ-CUS-AC400
Weight: 1.00
SKU: RDDLZ-CUS-AC400

Available Options

Short Description

Output Signal

Measuring Range

Hole Diameter Selection (for 0-5A)

Hole Diameter Selection (for 0-10A)

Hole Diameter Selection (for 0-50A)

Hole Diameter Selection (for 0-100A)

Hole Diameter Selection (for 0-150A)

Hole Diameter Selection (for 0-200A)

Hole Diameter Selection (for 0-400A)

Power Supply for 0-10V

Power Supply for 0-20mA

Power Supply for 0-5V

Power Supply for 1-5V

Power Supply for 4-20mA

Hole Diameter Selection (for 0-300A)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

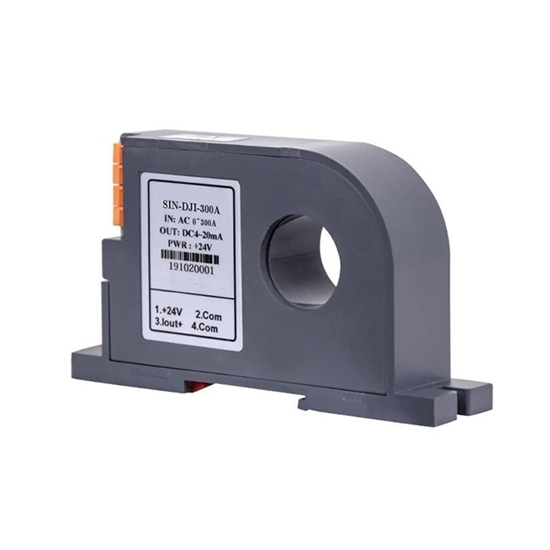

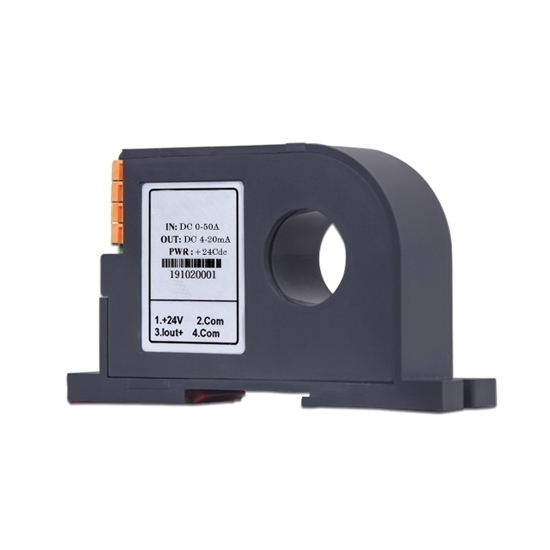

AC current sensor has measuring range of 5A/10A/20A/40A/50A/100A/150A to 400A.

Specification:

Model	RDDLZ-CURTS-DJIC
Shipping weight	0.5kg
Measuring range of input current *	AC 0-400A
Output signal *	DC 4-20mA, DC 0-20mA, DC 1-5V, DC 0-5V, DC 0-10V (customizable)
Power supply *	DC 24V, DC 12V, AC 220V, AC 110V (customizable)
Accuracy	0.5%F.S.
Isolation voltage	3kV/50Hz/1min
Offset voltage	≤10mV
Temperature drift	≤100PPM/℃
Frequency bandwidth	20~50Hz
Current consumption	＜5mA
Load capacity	Voltage output: 5mA, current output: 6V
Response time	＜250ms
Overload capacity	30 times nominal input
Work temperature	-10~+70℃
Storage temperature	-25~+85℃
measuring method	Through-hole
Hole diameter	22mm
Installation	DIN rail and screw fixation

Dimension and wiring diagram:

Tips: How to improve anti-interference and degauss?
1. Methods of improving anti-interference of ac current sensor

Adjust the direction of current sensor, so that external magnetic field has no effect on sensitive devices of sensors.
Use shielded current sensor or use a shielding case to shield external magnetic.

2. Degauss
If primary side current already exists, while ac current sensor is not equipped with working power supply, or secondary side is in open circuit status. Then the magnetic circuit in current sensor is magnetized and remanence generates, thus affecting the measuring accuracy. In this case, ac current sensor needs to degauss.
The method is as follows:
Don't power on current sensor, but add alternating current with a nominal rated value Ii to the primary side wire, then the current is reduced to zero from the large smoothly, thus completing the demagnetization.
