AC Current Sensor 50A/100A/400A/600A/1000A/1200A To 1500A

0 reviews • Write a review

from

$87.36

Ex Tax: $87.36

Stock: In Stock
Model: RDDLZ-CUS-AC1500
Weight: 1.00
SKU: RDDLZ-CUS-AC1500

Available Options

Short Description

Power Supply

Hole Diameter Selection

Measuring Range (for 20mm)

Measuring Range (for 40mm)

Measuring Range (for 55mm)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

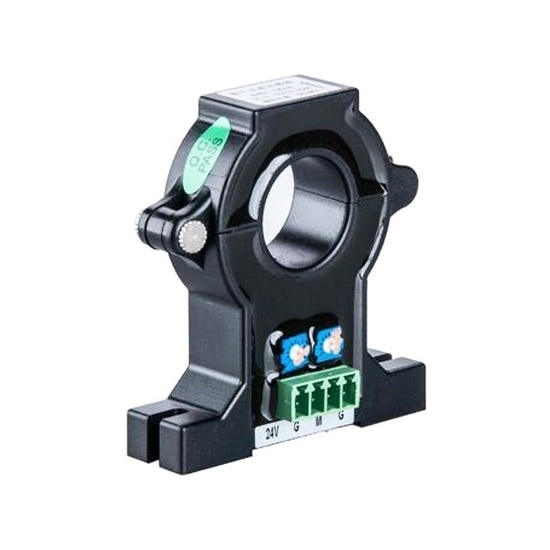

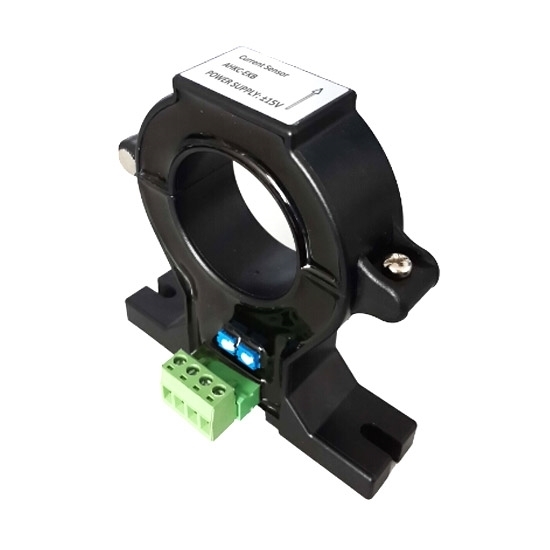

AC current sensor has measuring range of 50A/100A/200A/300A/400A/600A/800A/1000A/1200A to 1500A.

Specification:

Model	RDDLZ-AHKC-EKDA	RDDLZ-AHKC-EKBDA	RDDLZ-AHKC-EKCDA
Shipping weight	1kg
Hole diameter *	20mm	40mm	55mm
Measuring range of input current *	AC 0-50A ~ 0-500A	AC 0-200A ~ 0-1000A	AC 0-500A ~ 0-1500A
Output signal	DC 4-20mA
Zero offset current	±0.05mA
Offset current drift	±0.04mA/℃
Linearity	≤0.2%FS
Power supply *	DC 24V±10% or DC 12V±10%
Accuracy	1.0%F.S.
Response time	≤1ms
Withstand voltage	AC 2500V (between input, output and power supply)
Work temperature	-25~+70℃
Storage temperature	-40~+85℃
Humidity	≤95%RH (no dew formation, no corrosive gas)
Elevation	≤3500m
Measuring method	Split-core type
Installation	Screw fixation

50A to 1500A AC current sensor dimensional diagram:

Model	Dimension (mm)
Model	W	H	D	Φ (Hole diameter)	M (Mounting)
RDDLZ-AHKC-EKDA	60	64	16	20	47
RDDLZ-AHKC-EKBDA	100	102	24	40	80
RDDLZ-AHKC-EKCDA	115	110	27	55	95.5

50A to 1500A AC current sensor wiring diagram:

Details

Tips: 6 attentions for using AC current sensor

When selecting an AC current sensor, it is important to note whether the perforating dimensions ensures that the wire can pass through the hole of sensor. For example, the hole diameter of 100A ac current sensor can be 20mm, 40mm or 60mm. According to the size of the wire to choose the minimum hole diameter is the most appropriate.
When choosing a current sensor, pay attention to whether the application environment in the field has high temperature, low temperature, high humidity, strong earthquake and other special environment.
When choosing a current sensor, pay attention to whether the spatial structure is satisfied.
When wiring pay attention to the bare conductive part of the terminal, to prevent ESD impact as far as possible, it need professional construction experienced engineer to carry out the wiring operation of the product. The power supply, input, output of each connecting wire must be properly connected, not misplaced or reverse, otherwise it may cause damage to the product.
Product installation and environment should be free of conductive dust and corrosion.
Severe vibrations or high temperatures may also cause damage to the product, and attention must be paid to the use of the occasion.
