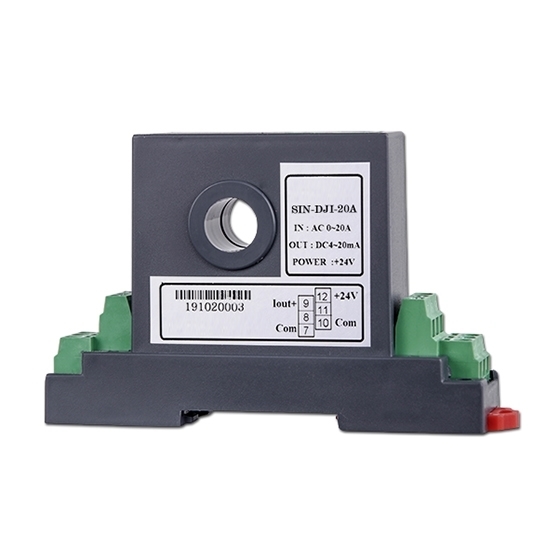

AC Current Sensor, 1A/2A/10A/30A/50A/100A To 150A

0 reviews • Write a review

from

$76.35

Ex Tax: $76.35

Stock: In Stock
Model: RDDLZ-CUS-AC150
Weight: 1.00
SKU: RDDLZ-CUS-AC150

Available Options

Short Description

Power Supply

Output Signal

Measuring Range

Hole Diameter Selection

Power Supply for 0-10V

Power Supply for 0-5V

Power Supply for 1-5V

Power Supply for 4-20mA

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

AC current sensor has measuring range of 1A/2A/5A/10A/20A/30A/50A to 150A.

Specification:

Model	RDDLZ-CURTS-DJIB
Shipping weight	0.5kg
Measuring range of input current *	AC 0-150A
Output signal *	DC 4-20mA, DC 0-20mA, DC 1-5V, DC 0-5V, DC 0-10V (customizable)
Power supply *	DC 24V, DC 12V, AC 220V, AC 110V (customizable)
Accuracy	0.5%F.S.
Isolation voltage	3kV/50Hz/1min
Offset voltage	≤10mV
Temperature drift	≤100PPM/℃
Frequency bandwidth	20~50Hz
Current consumption	＜5mA
Load capacity	Voltage output: 6V, current output: 5mA
Response time	＜250ms
Overload capacity	30 times nominal input
Work temperature	-10~+70℃
Storage temperature	-25~+85℃
Measuring method	Through-hole
Hole diameter *	4mm, 8mm, 12mm, 15mm
Installation	DIN rail and screw fixation

Dimension and wiring diagram:

Details

Tips: How to improve the performance of ac current sensor?

1. Method of improving accuracy

Primary side wire of ac current sensor shall be placed in the center of the sensor hole, don't place it deflected.
Diameter of the primary side wire shall fill the hole of the sensor, don't leave a big gap.
The quantity of electricity to be measured should be close to the standard measurement rating Ii of ac current sensor. If conditions are limited, please measure the low level of electricity with a high measuring range sensor. To improve the measuring accuracy, the primary side wire can be wound by several circles of N through the primary side hole, so as to ensure that ampere-turns Ni is close to the rated current Ii.

In addition to the above methods, attentions shall also be paid to installation wiring, work environment and instant calibration.

2. Obtain good dynamic characteristics and sensitivity
In order to obtain good dynamic characteristics, namely the quick reaction time and tracking velocity, the primary side wire shall insert the primary side hole solely. And the wire shall be full of hole.
3. The temperature of primary side current line or flat cable shall not exceed 80℃.
