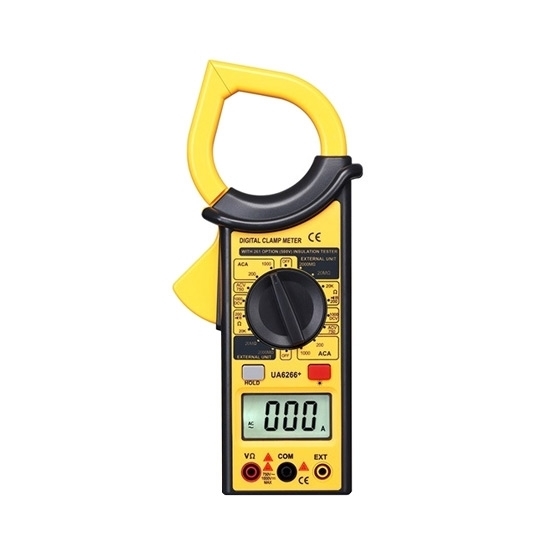

Clamp Meter For AC Current 1000A/AC Voltage 750V/DC Voltage 1000V
from
$76.49
Ex Tax: $76.49
- Stock: In Stock
- Model: RDDLZ-CLAM-6266
- Weight: 1.00
- SKU: RDDLZ-CLAM-6266
Available Options
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Digital clamp meter has AC current range 0-1000A, maximum jaw opening size 55mm, 4 digit display and maximum value 1999.
Specification:
Basics | Model | RDDLZ-UA6266+ | |
Weight | 310g | ||
Size (L*W*H) | 230*70*37mm | ||
Display | 4 digit LCD display | ||
Maximum display value | 1999 | ||
Power supply | DC 9V, 6F22 battery | ||
Maximum jaw opening size | 28mm | ||
Woring environment | Temperature: 5℃~35℃ (41℉~95℉), relative humidity:<75% | ||
Storage temperature | -10℃~+50℃ (14℉~122℉) | ||
Accessories | A pair of test probes, a user manual, 6F22 battery | ||
Functions | Item | Range | Accuracy |
AC current | 1000A | ±(3.0%+10 digits) | |
DC voltage | 1000V | ±(0.8%+3 digits) | |
AC voltage | 750V | ±(1.2%+5 digits) | |
Resistance | 2000MΩ | ±(5.0%+2 digits) | |
Special functions | Diode test | Display forward voltage value of diode | |
On-off buzzer | Continuity test buzzer | ||
Data hold | Hold the reading when taking a measurement | ||
Automatic power off | Automatic power off when 15 minutes no operation | ||
Overload protection | Overload protection for 100% range | ||
Range selection | Manual range selection | ||
Backlight | Backlight for LCD display |
