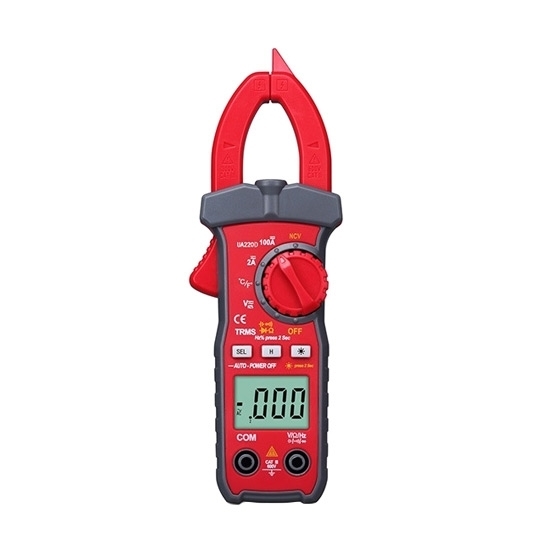

AC/DC Mini Clamp Meter With NCV/TRMS/Temperature/Capacitance

0 reviews • Write a review

from

$106.39

Ex Tax: $106.39

Stock: In Stock
Model: RDDLZ-CLAM-220D
Weight: 1.00
SKU: RDDLZ-CLAM-220D

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Digital clamp meter has AC/DC current range 0-100A, TRMS/NCV/temperature/capacitance functions, maximum jaw opening size 22mm, 4 digit display and maximum value 1999.

Specification:

Basics	Model	RDDLZ-UA220D
	Weight	144g
	Size (LWH)	1755532mm
	Display	4 digit LCD display
	Maximum display value	1999
	Power supply	DC 3V, 2 AAA batteries
	Maximum jaw opening size	22mm
	Woring environment	Temperature: 5℃~35℃ (41℉~95℉), relative humidity:＜75%
	Storage temperature	-10℃~+50℃ (14℉~122℉)
	Accessories	A pair of test probes, a pair of temperature probes, a user manual, 2 AAA batteries
Functions	Item	Range	Accuracy
	DC current	100A	±(2.5%+10 digits)
	AC current	100A	±(2.5%+8 digits)
	DC voltage	500V	±(1.0%+5 digits)
	AC voltage	500V	±(1.5%+5 digits)
	Resistance	20MΩ	±(1.2%+3 digits)
	Frequency	100kHz	±(0.3%+5 digits)
	Capacitance	100mF	±(5.0%+3 digits)
	Temperature	-50℃~+1000℃ (-58℉~1832℉)	±(1.9%+6 digits)
	Duty ratio	0.1%~99.9%	±(0.5%+3 digits)
Special functions	TRMS	True RMS measurement for sine wave signal
	NCV	Non-contact voltage test
	Diode test	Display forward voltage value of diode
	On-off buzzer	Continuity test buzzer
	Data hold	Hold the reading when taking a measurement
	Automatic power off	Automatic power off when 15 minutes no operation
	Overload protection	Overload protection for 100% range
	Range selection	Automatic range selection and manual range selection
	Backlight	Backlight for LCD display
	Inspection light	Inspection light for clamp operation
