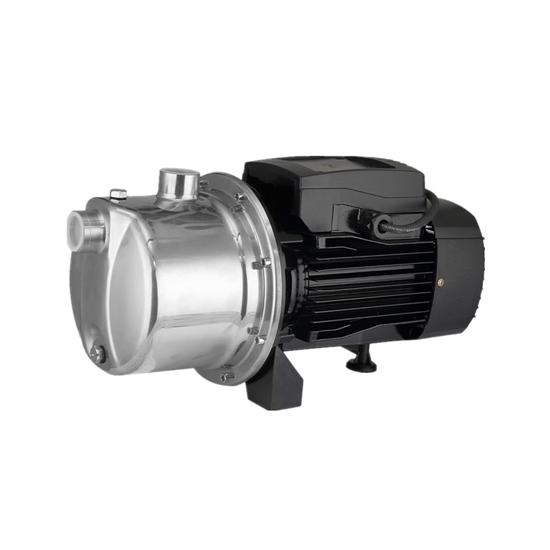

3 Hp Shallow Well Jet Pump

3 Hp Shallow Well Jet Pump
3 Hp Shallow Well Jet Pump
0 reviews • Write a review
from
$586.66
Ex Tax: $586.66
  • Stock: In Stock
  • Model: RDDLZ-SWP-3HP
  • Weight: 1.00
  • SKU: RDDLZ-SWP-3HP

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

3 hp (2.2kW) shallow well jet pump can be used for irrigation and sprinkler system in garden and yard. This stainless steel water pump needs to be installed on the ground to convey clear water, high performance and convenience.

Specification

  • Model: RDDLZ-JS-200E
  • Flow: 8m3/h
  • Head: 55m
  • NPSH: 10m
  • Suction Diameter: DN40
  • Discharge Diameter: DN40
  • Stage: Single Stage
  • Voltage (Optional): 110V 60Hz, 220-240V 50Hz, 220-240V 60Hz
  • Power: 3 hp (2.2 kW)
  • Motor Wire: 100% Copper Wire
  • Cable: 1m
  • Body Material: Stainless Steel
  • Performance: Automatic
  • Drive Mode: Electric
  • Conveying Medium: Clear Water
  • Pump Shaft Position: Horizontal
  • Impeller Structure: Semi-Open Impeller
  • Number of Impellers: 1
  • Dimension: 48 cm * 26 cm * 24 cm
  • Weight: 12.8kg

Dimensions

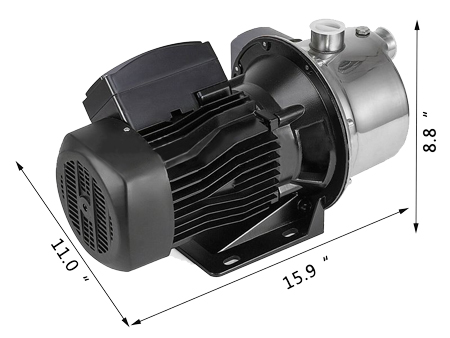

Dimensions of shallow well jet pump

Details

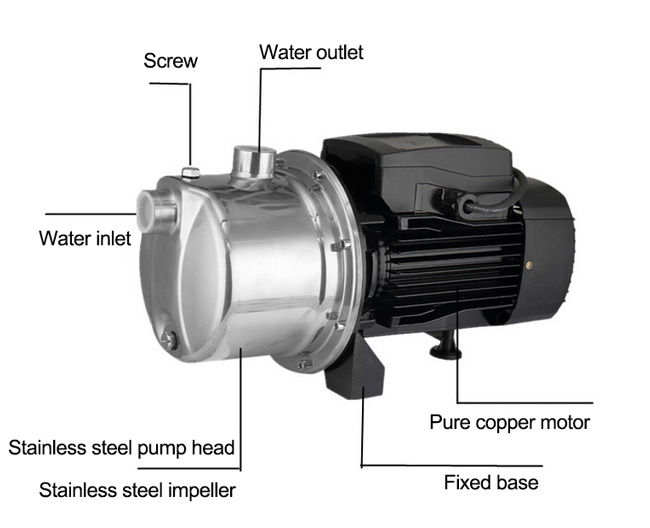

Shallow Well Jet Pump Details

Tips: How to replace a new shallow well jet pump?

When replacing a shallow well jet pump, it is usually best to replace the old model with a new model of the same horsepower. If you've got a new addition to your home, added new appliances or fixtures, or feel like you might be using more water, you'll need to install a pump with a higher horsepower.

  1. Disconnect power to existing pump or motor.
  2. Drain the pressure in the system and drain all the water in the system. Be sure to hold down the discharge tube as it may move around and cause serious injury or damage.
  3. When replacing the shallow well pump, cover the well body to prevent foreign objects or tools from falling.
  4. Remove the old pump. Old wiring should be replaced if it shows signs of rust, scale, or other damage.
  5. Install the replacement pump according to the manufacturer's instructions.
  6. Before using a new pump, check several water samples. The water should be clean and free of sediment and other substances.
