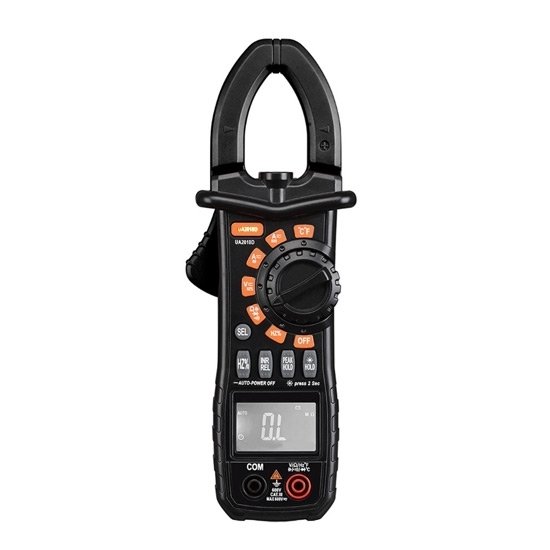

AC/DC Clamp Meter 600 Amp, True RMS/Capacitance/Temperature Function

0 reviews • Write a review

from

$113.29

Ex Tax: $113.29

Stock: In Stock
Model: RDDLZ-CLAM-2018D
Weight: 1.00
SKU: RDDLZ-CLAM-2018D

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Tips: How to use capacitance function of a clamp meter?
To avoid damage the clamp meter or the device under test, disconnect all power supply to the circuit under test and fully discharge all high-voltage capacitors before measuring capacitance. Use DC voltage function to determine the capacitor has been discharged.

Turn the rotate dial to capacitance function.
nsert the black test lead into the COM jack, and the red test lead into the capacitance jack.
After the capacitor is fully discharged, connect the other end of the red and black test leads to the two ends of the capacitor under test. The measured capacitance value is read by the LCD display.

Note:

To improve the accuracy of measurements below 10nF, subtract the distribution capacitance of the meter and leads.
When measuring large capacitance, stable reading takes a certain amount of time.
When measuring polar capacitor, pay attention to the corresponding polarity to avoid damaging the instrument.

Builder in Product TAB

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc. You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules. Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Basics	Model	RDDLZ-UA2018D
	Weight	530g
	Size (LWH)	2107835mm
	Display	4 digit LCD display
	Maximum display value	5999
	Power supply	DC 4.5V, 3 AAA batteries
	Maximum jaw opening size	36mm
	Woring environment	Temperature: 5℃~35℃ (41℉~95℉), relative humidity:＜75%
	Storage temperature	-10℃~+50℃ (14℉~122℉)
	Accessories	A pair of test probes, a pair of temperature probes, a user manual, 3 AAA batteries
Functions	Item	Range	Accuracy
	DC current	600A	±(2.0%+8 digits)
	AC current	600A	±(2.5%+8 digits)
	Inrush current	600A	±(5.0%+60 digits)
	DC voltage	600V	±(0.8%+5 digits)
	AC voltage	600V	±(1.0%+5 digits)
	Resistance	20MΩ	±(0.8%+3 digits)
	Frequency	100kHz	±(3.0%+3 digits)
	Capacitance	100mF	±(3.0%+5 digits)
	Temperature	-40℃~+1000℃ (-40℉~1832℉)	±(1.0%+4 digits)
Special functions	TRMS	True RMS measurement for sine wave signal
	Diode test	Display forward voltage value of diode
	On-off buzzer	Continuity test buzzer
	Data hold	Hold the reading when taking a measurement
	Automatic power off	Automatic power off when 15 minutes no operation
	Overload protection	Overload protection for 100% range
	Range selection	Automatic range selection and manual range selection
	Backlight	Backlight for LCD display
	Inspection light	Inspection light for clamp operation
	LED torch	A LED torch for night lighting
