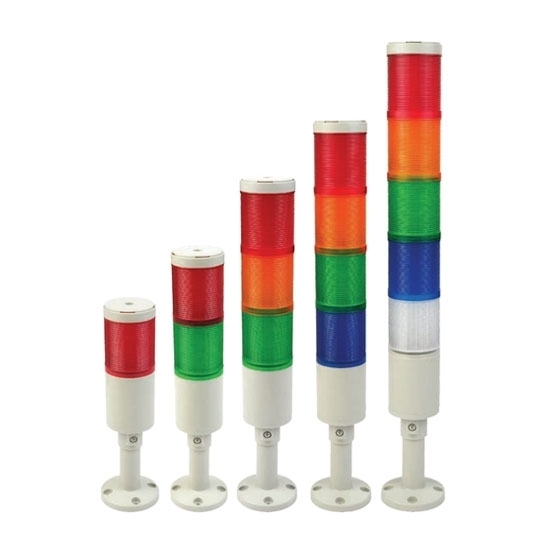

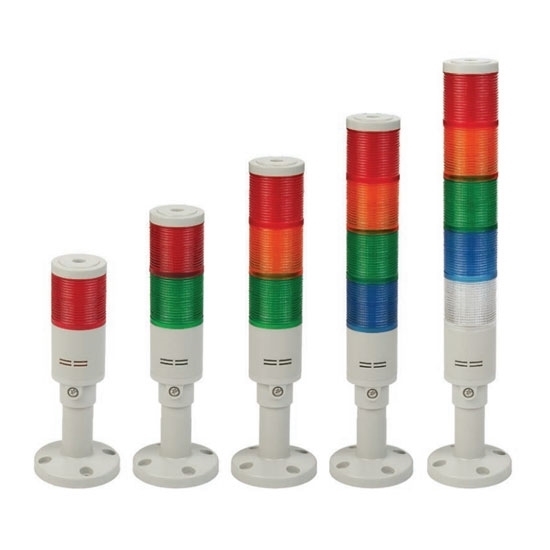

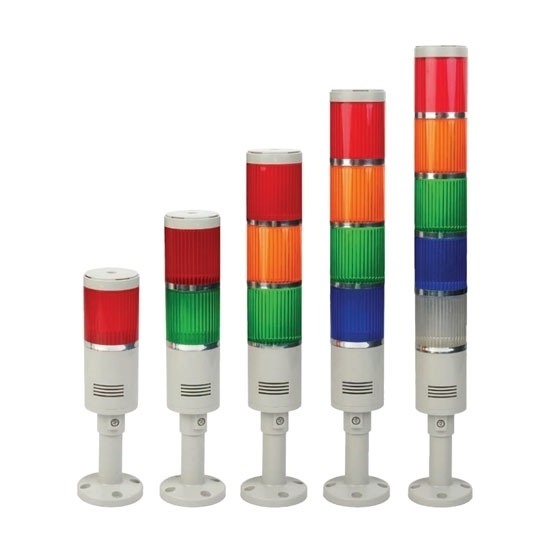

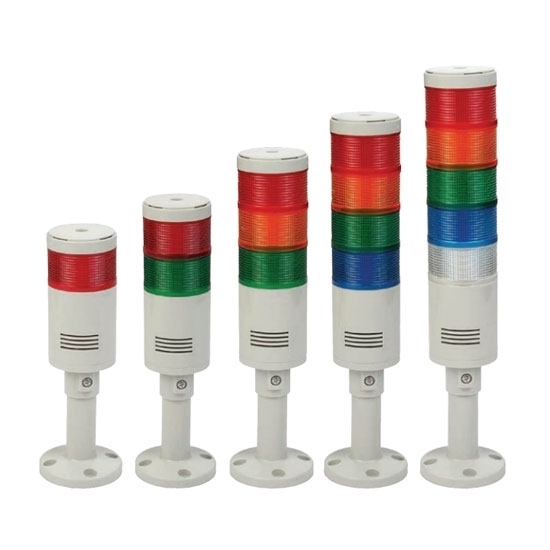

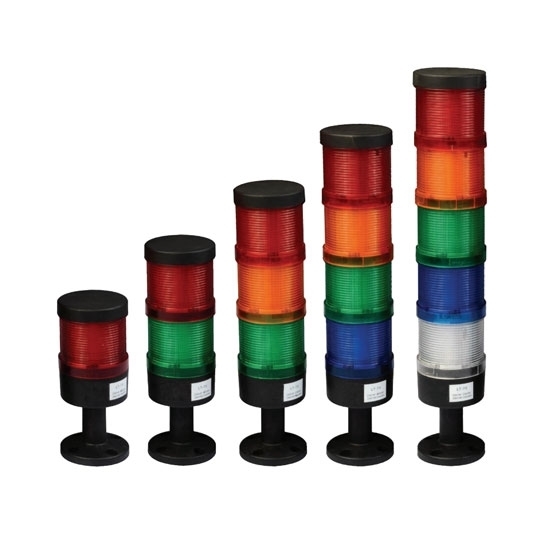

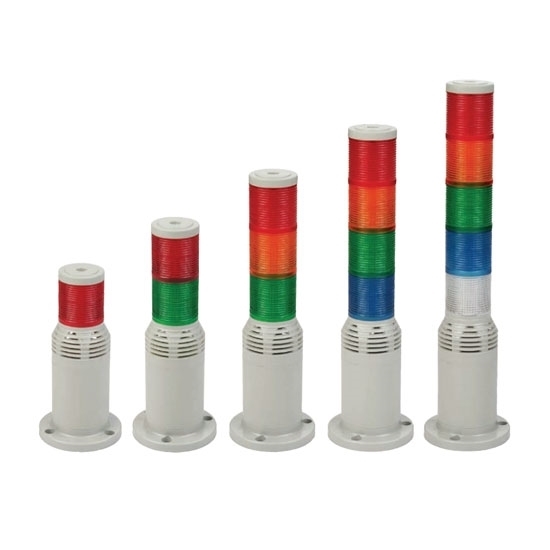

Stack Light, LED/Bulb, DC 24V/AC 110V

0 reviews • Write a review

from

$68.92

Ex Tax: $68.92

Stock: In Stock
Model: RDDLZ-STKL
Weight: 1.00
SKU: RDDLZ-STKL

Available Options

Voltage (V)

Additional Function

Item

Function

Base type

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Stack light is also called indicator light, industrial signal light, industrial warning light and tower light. It is generally used in industrial production equipments and transmission control operations. Stack light transmits the equipment status or transmission status to the machine operator as visual and acoustical signals.

Specification:

Model	RDDLZ-STKL
Weight	1kg
Operating voltage	DC 12V, DC 24V, AC 110V, AC 220V, AC 380V
Power	1 stack: 2W; 2 stacks: 4W; 3 stacks: 6W; 4 stacks: 8W; 5 stacks: 10W
Light source	LED, bulbs, xenon lamp
Stack light diameter	Φ70mm, Φ55mm, Φ42mm
Material of lamp housing	Polycarbonate
Material of base	ABS
Light color	Red, yellow, green, blue, white
Function	Steady light, flash light, revolving light, buzzer
Flash frequency	60-80 times/min
Buzzer	Adjustable volume 85-90db within 1 meter
Operating temperature	-25~60℃
Protection class	IP65, IP44, IP33 (add buzzer)

Selection table:

Item	Light source	Voltage	Function	Protection class	Stack light diameter	Stack light height	Base type
LTA504	LED	DC 12V, DC 24V	Steady light, flash light	IP44	42mm	40mm	B1, B2, B3, B4, B8
LTA205	Bulbs	DC 12V, DC 24V, AC 110V, AC 220V	Steady light, flash light	IP44	55mm	60mm	B1, B2, B3, B4, B8
LTA505	LED	DC 12V, DC 24V, AC 110V, AC 220V, AC 380V	Steady light, flash light	IP44	55mm	60mm	B1, B2, B3, B4, B8
LTA506	LED	DC 12V, DC 24V, AC 110V, AC 220V, AC 380V	Steady light, flash light	IP44	55mm	30mm	B1, B2, B3, B4, B8
LTA507	LED	DC 12V, DC 24V, AC 110V, AC 220V, AC 380V	Steady light, flash light	IP44	55mm	60mm	B1, B2, B3, B4, B8

Stack light dimension drawing (unit: mm):

Base dimension drawing (unit: mm):

Stack light wiring diagram:
