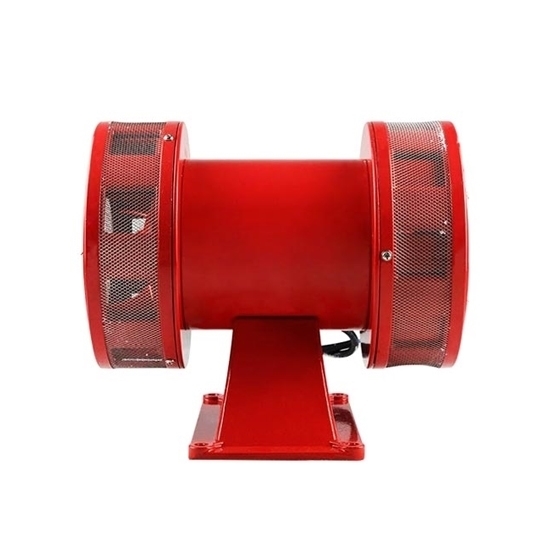

Motor Alarm, 123dB, 110VAC/220VAC

Motor Alarm, 123dB, 110VAC/220VAC
Motor Alarm, 123dB, 110VAC/220VAC
0 reviews • Write a review
from
$343.92
Ex Tax: $343.92
  • Stock: In Stock
  • Model: RDDLZ-MOALM-123
  • Weight: 1.00
  • SKU: RDDLZ-MOALM-123

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Motor alarm has high volume 123dB, optional working voltage AC 220V/AC 110V and two-way alarm mode.

Specification:

ModelRDDLZ-MOALM-MS590
Shipping weight12kg
Dimension288*250*286mm
Working voltage *AC 220V, AC 110V
Working frequency50Hz/60Hz
Working current1.8A, 3.6A
Output volume123dB
SoundContinuous alarm sound (It is best to work for 2 minutes, and then stop working for 30 minutes. After the motor becomes cool, the motor alarm can work again.)
Working modeAlarm when power on
Shell materialCast aluminum alloy
ColorRed
Protection classIP44
Insulation resistance100MΩ (at 500VDC)
Motor speed1000 rpm

Dimension (unit: mm):

Tips: Different types of motor alarm
1. According to the sound pressure level of the sound signal:

  • Large motor alarm: Sound pressure level is above 100 dB.
  • Medium-sized motor alarm: The sound pressure level is between 90 dB and 50 dB.
  • Small motor alarm: Sound pressure level is below 40 dB.

2. According to the form of energy conversion:

  • Motor alarm: convert electrical energy into mechanical energy, and then convert mechanical energy into acoustic energy.
  • Electro acoustic alarm: The small audio signal is amplified by low-frequency power and converted into acoustic energy. That is, electronic energy is converted into sound energy.
  • Pneumatic alarm: Converts electrical energy into mechanical energy, and then converts mechanical energy into pneumatic energy, and converts pneumatic energy into acoustic energy.
  • Hand crank alarm: Use human hand to shake crank to issue an alarm signal.

3. According to different installation conditions:

  • Fixed alarm: The alarm is installed in a fixed location.
  • Movable alarm: Alarms are installed in motor vehicles or other movable forms.
  • Lifting type alarm: Usually hidden in the ground, when need to issue an alarm, it will be raised on the ground.
