Audible And Visual Alarm, 100-120dB, 380VAC/220VAC/24VDC

0 reviews • Write a review

from

$166.67

Ex Tax: $166.67

Stock: In Stock
Model: RDDLZ-AVALM
Weight: 1.00
SKU: RDDLZ-AVALM

Available Options

Working Voltage

Dimension

Color of Light

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

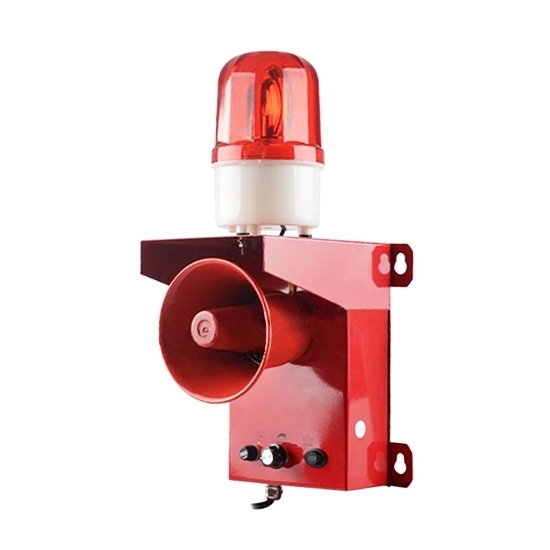

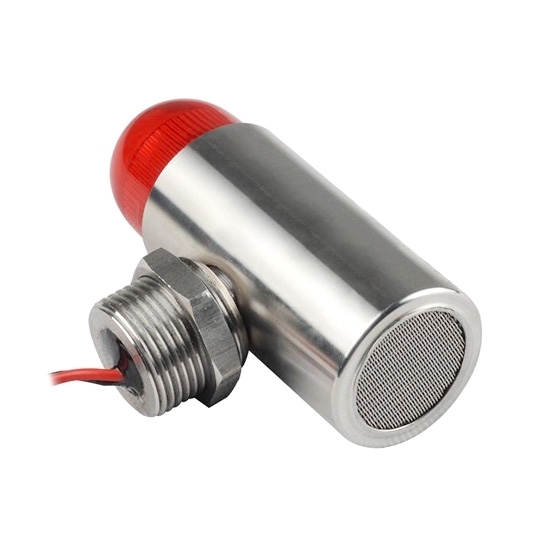

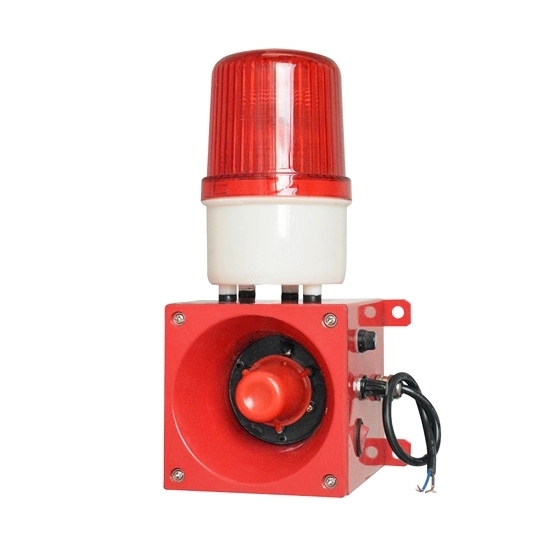

Audible and visual alarm with output volume 100dB or adjustable 106-120dB, working voltage 380VAC, 220VAC, 24VDC, 12VDC, etc.

Specification:

Model	RDDLZ-AVALM-STSG-01	RDDLZ-AVALM-STSG-07	RDDLZ-AVALM-DX-200
Shipping weight	3kg	3kg	1kg
Dimension *	120130285mm (LWH)	183190385mm (LWH)	Φ38mm, 98mm (H)
Working voltage *	120VAC, 220VAC, 380VAC, 24VDC	120VAC, 220VAC, 380VAC, 12VDC, 24VDC, other customizable voltage	24VDC
Working current	0.5A	3A	30-50mA
Working frequency	50~60Hz	50~60Hz	-
Light	LED strobe light	LED strobe light	LED strobe light
Output volume	106-120dB	106-120dB	100dB@10cm
Output frequency	800Hz (D dur)	800Hz (D dur)	1s/time
Working mode	Alarm when power on
Material	Shell: Cast aluminium alloy Lampshade: PC	Shell: Cast aluminium alloy Lampshade: PC	Shell: Stainless steel Lampshade: PC
Function	Sound and volume can be adjusted by button.	Sound and volume can be adjusted by button.	Explosion-proof (Exdia IIC T6 Gb)
Protection class	IP65	IP65	IP65
Working temperature	-30~+70℃ (-22~+158℉)	-30~+70℃ (-22~+158℉)	-45~+85℃ (-49~+185℉)
Workign humidity	10%~85%	10%~85%	10%~95%
Color of light *	Red, yellow, green	Red, yellow, green	Red
Working pressure	101kPa	101kPa	86~105kPa

Note: * denotes optional parameters, you can select corresponding parameters in drop-down lists according to specification for every model.

Dimension (unit: mm):

Tips: Application of audible and visual alarm
Audible and visual alarm is a kind of warning device used in dangerous places to send alarm signals to people through sound and various lights. Explosion-proof audible and visual alarm is suitable for installation in places with explosive gas environment containing temperature class IIC T6. It can also be used in explosion-proof area 1 and area 2 with explosion-proof requirements in the petroleum and chemical industries.
Audible and visual alarm can be used with all fire alarm controllers. When an emergency accident or fire occurs on the site, the control signal sent by the fire alarm controller triggers the audible and visual alarm, and realize sound alarm and light alarm at the same time. It can also be used in conjunction with the manual alarm button to achieve simple sound and light alarm.
