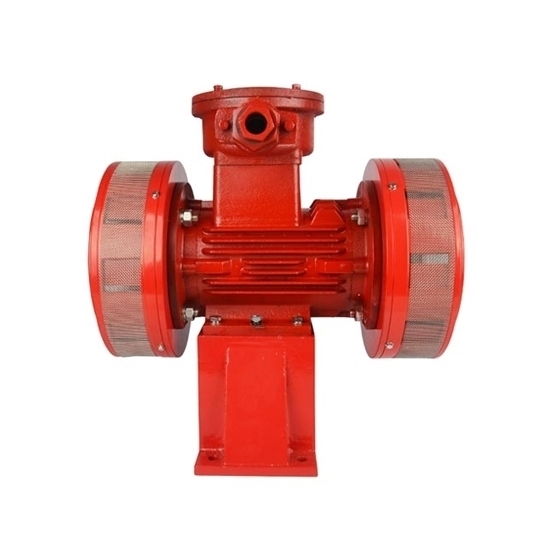

Motor alarm has high volume 119dB, working voltage 3 phase 380VAC and two-way alarm mode.

Specification:

Model	RDDLZ-MOALM-JDW245B
Shipping weight	43kg
Dimension	421240381mm
Working voltage	3 phase 380V
Working frequency	50Hz/60Hz
Rated power	1.1kW (1.5 hp)
Output volume	119dB (at a radius of 5 m)
Output frequency	500/560±20Hz
Sound	Continuous alarm sound (It is best to work for 2 minutes, and then stop working for 30 minutes. After the motor becomes cool, the motor alarm can work again.)
Working mode	Alarm when power on
Shell material	Cast aluminum alloy
Color	Red
Protection class	IP44
Explosion proof	Exd II BT4

Dimension (unit: mm):

Tips: Motor alarm application
Motor alarm is used for water conservancy and flood prevention, reservoir, civil defense, army, fire fighting, prison, mine, gas station, ship, airport, plain, ranch, forest farm, factory, school, hotel, camping and mountain rescue. It is mostly used for emergency early warning.Explosion-proof motor alarm can be used in chemical, petroleum, smelting and other industries to give a high volume 119dB alarm when there's an emergency.
