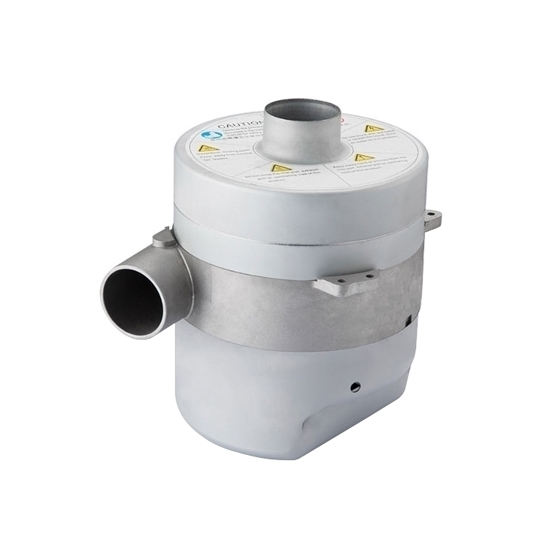

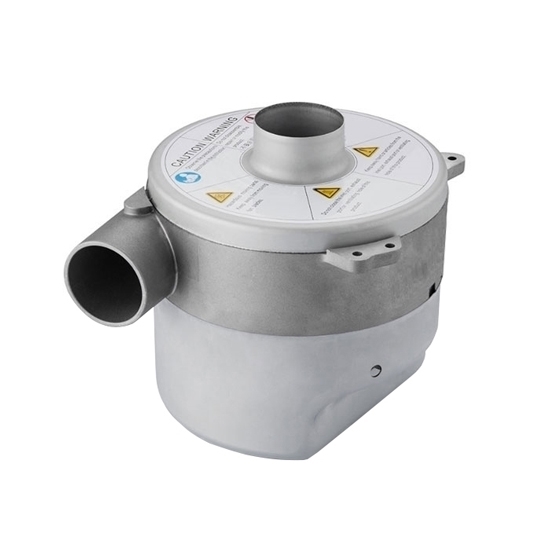

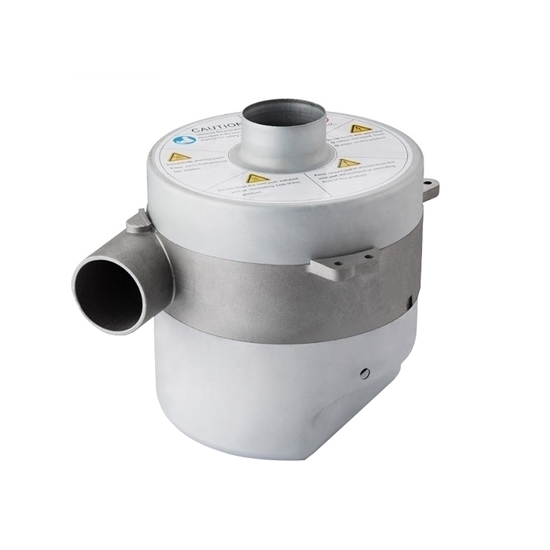

1200W Industrial Air Blower, Variable Speed, 110V/220V

0 reviews • Write a review

from

$868.23

Ex Tax: $868.23

Stock: In Stock
Model: RDDLZ-ABL-1200
Weight: 1.00
SKU: RDDLZ-ABL-1200

Available Options

Input Voltage (V)

Air Volume

Speed Control

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

1200 watt compact and light air mover is great suitable for air vacuum and air blower, allowing air volume adjustable via 4 speed control mode of built-in potentiometer, 1.5V-10V, 1.5V-5V or 4-20mA. With rugged design, stable airflow and energy-saving, this blower is widely applied for ventilation, dust extraction or cooling of medical equipment, environmentally friendly cleaning, lithium battery equipment, printing and other industrial application fields.

Specification

Model	RDDLZ-WB1-1200	RDDLZ-WB2-1200	RDDLZ-WB3-1200
Input Voltage *	AC 110V/220V 50/60Hz
Rated Current	6A
Max. Power	1200 Watt
Max. Vacuum	110mBar/ 11kPa	185mBar/ 18.5kPa	255mBar/ 25.5kPa
Max. Pressure	124mBar/ 12.4kPa	208mBar/ 20.8kPa	286mBar/ 28.6kPa
Max. Air Volume	253m³/h (148 CFM)	240m³/h (140 CFM)	228m³/h (134 CFM)
Max. Speed	20000r/min
Speed Control *	Built-in potentiometer control, 1.5V-10V voltage control, 1.5V-5V voltage control, 4-20mA current control
Inlet & Outlet Diameter	44.5mm
Weight	2.3kg	2.5kg	3.0kg

DIP Switch Setting

Dimensions (Unit: mm)

RDDLZ-WB1-1200
RDDLZ-WB2-1200
RDDLZ-WB3-1200

Air Vacuum/ Volume Curve Graph

Air blower 253m³/h (148 CFM)

Air blower 240m³/h (140 CFM)

Air blower 228m³/h (134 CFM)

Tips: Structure and Cassification of Air Blowers

The main structural components of the blower are the impeller, housing, air inlet, bracket, the motor, pulley, coupling, muffler, transmission parts (bearing) and so on.

According to the pressure of the air blower, the blowers can be divided into low pressure blowers, medium pressure blowers and high pressure blowers. The pressure range is as follows: low pressure: full pressure H ≤1000Pa, medium pressure: 1000Pa < H ≤ 3000Pa, and high pressure (centrifugal fan): 3000Pa < H ≤15000 Pa

Low-pressure and medium-low pressure blowers are mostly used in ventilation engineering. High pressure air blowers can be divided into centrifugal blower and axial flow fan and water treatment blower, which are widely used in the sewage stirring and aeration in hospitals and laboratories, vacuum feeding in the printing industry, stirring and aeration of electroplating tanks and industrial wastewater, air supply of plastic welding, burner spray, glass industry and others.

Based on technology of the air blowers, it can be divided into general mechanical bearing blower, magnetic suspension blower and air suspension bearing blower according to the bearing technology.
